MTO - Made to order
- Small dimensions: 26 x 26 x 33 mm, 38 grams
- 16.1 Mpix at 23 fps
- HDR - Dual ADC mode
- USB3 Vision Compliant

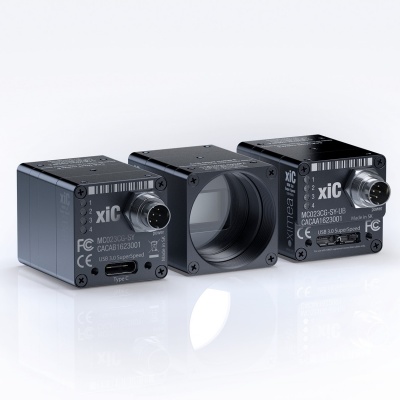

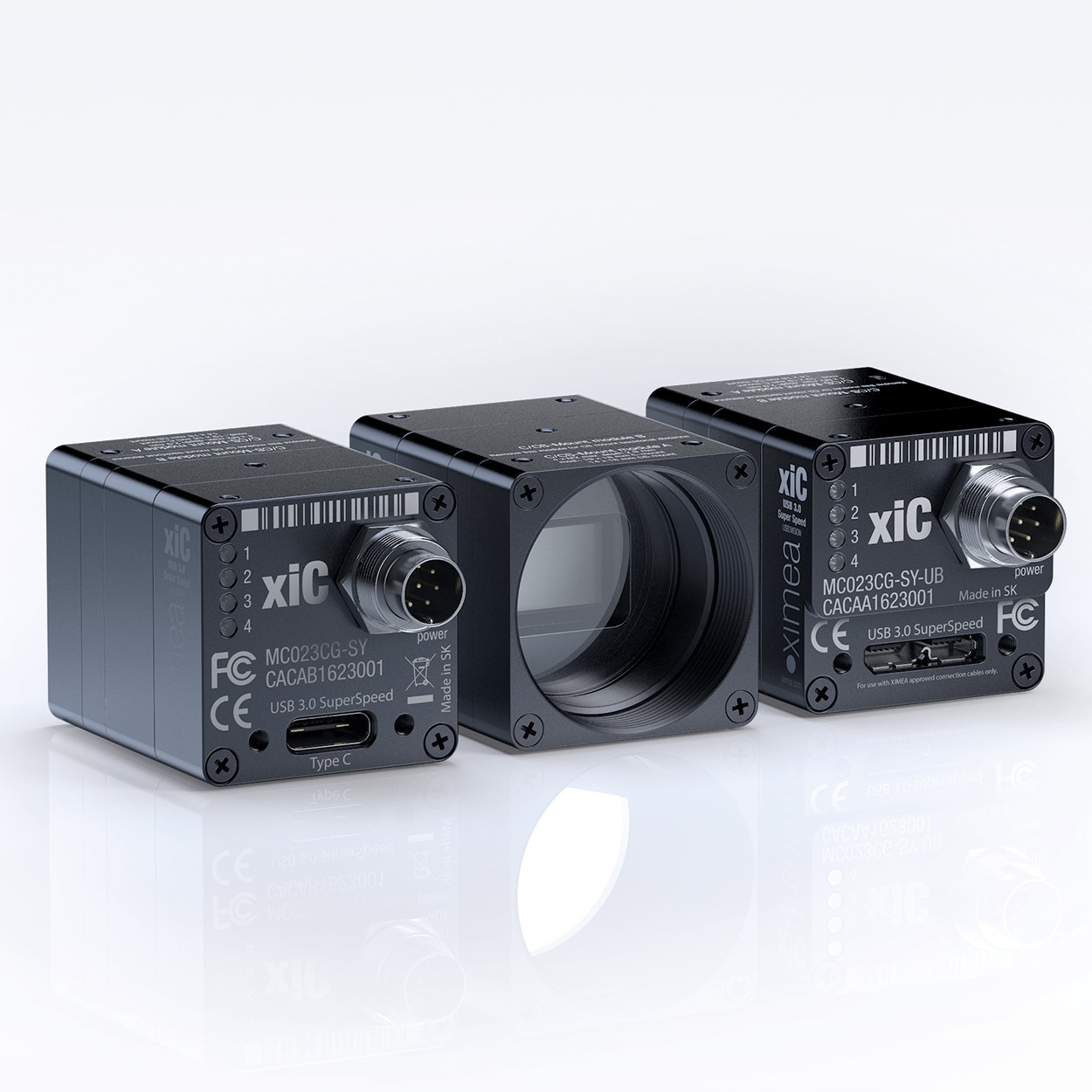

16.1 MP Monochrome BSI Sony CMOS Pregius S™Camera with USB 3.1 Gen 1
High resolution camera Applications: VR an AR, Flat panel inspection (FPD), printed circuit board (PCB) examination, solar panel analysis, persistent stadium and border security, wide area surveillance, cinematography, sports and entertainment, 360 panorama, UAV and Autonomous, Unmanned vehicles, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Dental, Security, Biometrics and more
Specifications are preliminary and subject to change
Brochure
Accessories
USB3 Zone
Manual
CONTACT SALES
Specifications: | |
| Part Number | MC161MG-SY-HDR |
| Resolution | 16.1 MP 5320 x 3032 |
| Frame rates | 23 Fps (8 bit), 18 Fps (10 bit), 15 Fps (12 bit) |
| Sensor model | Sony Pregius-S IMX543-AAMJ-C |
| Chroma | Monochrome, B/W HDR mode |
| Sensor type | CMOS, BSI - Backside illuminated |
| Sensor size | 1.1" |
| Sensor active area | 14.58 x 8.31 mm |
| Readout method | Global Shutter |
| Pixel size | 2.74 μm |
| Digitization | 8, 10, 12 |
| Data interface | USB 3.1 Gen 1 |
| Dynamic range | 70 dB |
| Full Well Capacity | 9500 e- |
| Readout noise typ. | 2.1 e- |
| Exposure range | 9µs to 30s, step 7µs |
| I/O Ports | GPIO IN, OUT |
| Lens mount | C-Mount or CS-mount |
| Dimensions WxHxD | 26 x 26 x 31 mm |
