MTO - Made to order
- 4.2 Mpix, 1.2" Front illuminated sensor

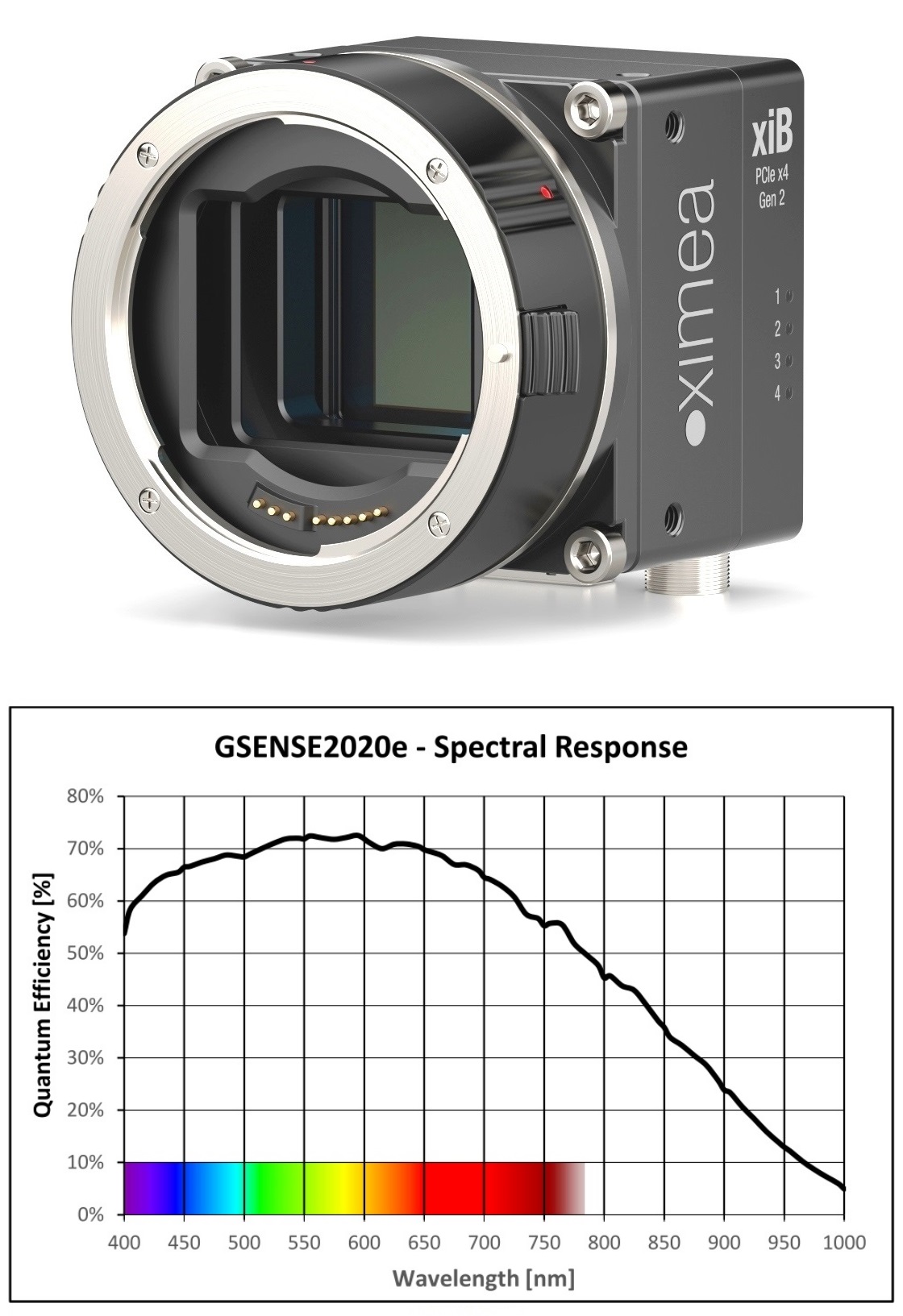

- sCMOS sensor - Gpixel GSENSE2020e
- Ultra compact Scientific CMOS camera
- Incredible speed with PCIe interface
- High Dynamic range and extremely Low noise
Specifications are preliminary and subject to change
Scientific grade sCMOS, compact camera for Material and Life sciences like:
Spinning disk confocal imaging, Genomics, High Speed Multicolor and Light Sheet Fluorescence, FRET, FRAP, FISH, TIRF, Cell Biology, Biochip reading, PALM, STORM, dSTORM, GSDIM, SPIM and Widefield Microscopy, Astronomy, Protein/Lipid Trafficking, Voltage Sensitive Dyes, Quantum Dots, Membrane Dynamics, Ion Transport Physiology, Photovoltaic inspection, Mineralogy, OCT, FCS, gSTED, CARS, Digital pathology, Ophthalmology, Electrophysiology, Biophysics, Phosphorescence, Photoluminescence Spectroscopy, Biometrics, Endoscopy and Biomedical, Nanoparticle, Intrinsic, Ratiometric, Calcium imaging.
Brochure
Models page
Accessories
Support page
CONTACT SALES
Specifications: | |
| Part Number | CB042MG-GP |
| Resolution | 4.2 MP 2048 x 2048 pixels |
| Frame rates | 45 - 93 Fps (Rolling - Global) |
| Sensor model | Gpixel GSENSE2020e |
| Sensor type | Scientific CMOS (sCMOS) Front illuminated |
| Sensor size | 1.2" |
| Sensor active area | 13.3 x 13.3 (18.8 Diagonal) |
| Readout method | Global or Rolling shutter |
| Pixel size | 6.5 μm |
| Digitization | 2x 10, 11, 12 (16 Bit from API) |
| Data interface | PCIe Gen2 |
| Dynamic range | 87 dB (HDR in Rolling) |
| Full Well Capacity | 45 000 e- (HDR in Rolling) |
| On-chip binning | up to 2x2 |
| Readout noise typ. | 2 e− (Rolling) |
| Signal to noise ratio | 46 dB |
| Exposure range | 8 μs - 30 s |
| I/O Ports | GPIO 2IN, 2OUT, Serial Port |
| Power consumption | 5.6 Watt |
| Lens mount | C or EF Mount |
| Weight | 173 grams |
| Dimensions WxHxD | 60 x 60 x 36 mm |
| Cooling | Heatsink |
