Sensor Defect Correction

Newer camera families (xiC, xiB, xiX) support multiple Sensor Defects Lists, saving and loading them.
Older cameras (xiQ, xiD, MU9) support only a single (Factory) Sensor Defect List.

Each sensor vendor has his own specification of defects and defines conditions for testing like exposure time, temperature, illumination, etc.
XIMEA is testing each sensor against these specifications.
These vendor definitions are usually more complex and not public.
After this procedure, we perform our calibration of sensors with our own conditions with stricter criteria.
This procedure creates Factory Defect List in the camera.
If a user discovers a new defect, later on, it can be added to the User Defect List.

Sensor Defects List

Sensor Defects List is a textual form of sensor defects.
It can be stored in the camera Flash File System (FFS) or passed as a string to/from the application.
The camera might contain zero, one or several Sensor Defect Lists, each stored as a separate file (e.g. Factory, User0, User1...).

Correction

Zero, one, or multiple Sensor Defects Lists can be enabled for correction in case (e.g. both Factory and User):
  • If multiple lists are enabled, all defects are merged together and corrected.

xiAPI

Value
XI_SENS_DEFFECTS_CORR_LIST_SEL_FACTORY
Mode - List calibrated in camera production factory

Value
XI_SENS_DEFFECTS_CORR_LIST_SEL_USER0
Mode - User list, created by user

  • Select (Factory or User0) - selects which list should be controlled by XI_PRM_SENS_DEFECTS_CORR
    xiSetParamInt(handle, XI_PRM_SENS_DEFECTS_CORR_LIST_SELECTOR, XI_SENS_DEFFECTS_CORR_LIST_SEL_USER0);
  • Enable correction by defects stored at selected list
    xiSetParamInt(handle, XI_PRM_SENS_DEFECTS_CORR, XI_ON);
  • Disable correction by defects stored at selected list
    xiSetParamInt(handle, XI_PRM_SENS_DEFECTS_CORR, XI_OFF);

Sample

Here you can download xiAPI sample code, which shows how to add and delete pixels from user list.
Supported by xiC, xiB, xiX, xiT cameras.


CamTool

General controls in CamTool are available when the visibility level is Expert or Guru:


Defect Correction plugin is now included in CamTool in all software packages (from API version 4.17.28).

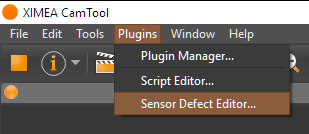

It can be opened from CamTool's menu:

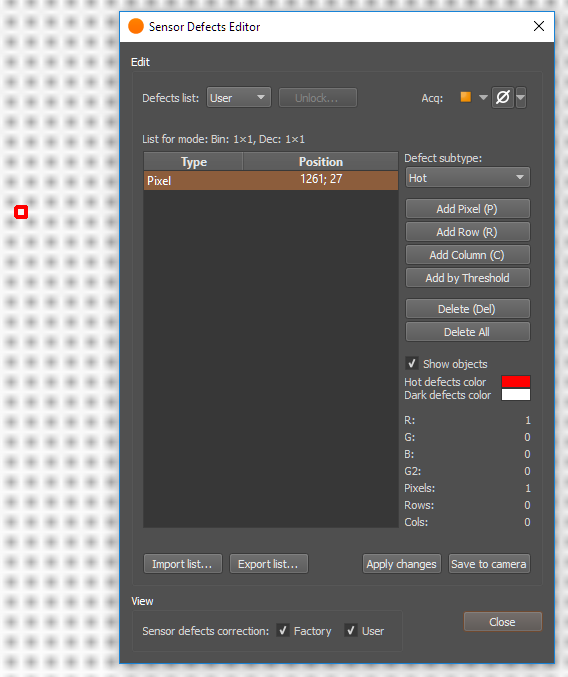

Then Sensor Defect Editor allows to select defects lists or edit pixels in them:



After adding or removing bad pixels, pressing the Apply Changes button will apply these changes only to the local processing chain (valid until the camera is closed).
To save these changes to the camera's memory, also press Save to camera button.
