Products xiLab - Application specific custom OEM Thunderbolt technology ready cameras - xiT

Thunderbolt technology ready cameras - xiT

  • World's first industrial Thunderbolt™ 2 enabled cameras
  • Resolutions from 2.3 MP to 20 MP
  • Speeds 165 fps and 30 fps respectively
  • Pregius™ pixel technology
  • Smallest design: 26 x 26 x 38 mm (small model)
  • Support of Windows, Mac OSX (Linux and 30 Libraries prepared)
  • No frame grabbers, powered by Thunderbolt cable

Additional models are under certification process

"Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries".

Buy Thunderbolt enabled camera industrial

certified thunderbolt camera CMOS CMOSIS Sony IMX174



XIMEA presents unique Thunderbolt™ 2 enabled cameras that currently include models with the newest sensors from Sony (IMX174) and CMOSIS (CMV20000).



Cameras offer the data and control interface that delivers up to 20 Gbit/s bandwidth without the need of any frame grabbers. The data is streaming directly through Thunderbolt™ cable which can reach distances up to 60m when the fiber optic option is used.

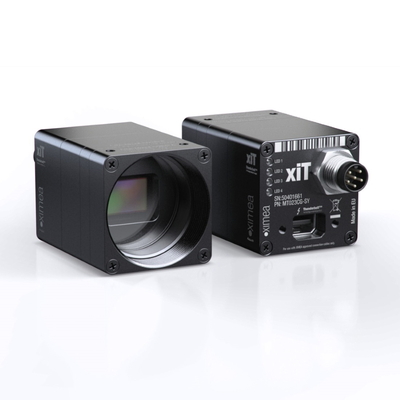

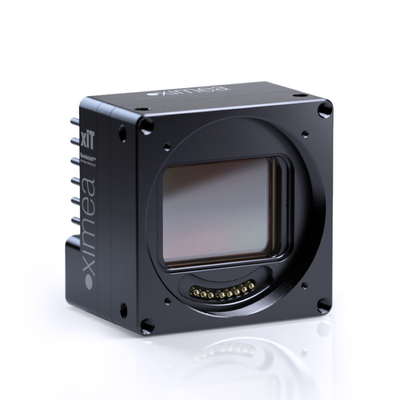

MT200 model is further equipped with active EF-mount interface for control of dynamic aperture and focus. Falcon Ridge 4C dual port makes daisy chain interconnection possible. MT023 model is exceptionally compact with 26x26x38mm and can be bus powered removing the need in additional cables.



MT200 is CERTIFIED and MT023 is CERTIFIED, which approves XIMEA to ship both models with Thunderbolt Trademark and Logo for PC and Mac.

Minimal system requirements when using with XIMEA CamTool:

CPU: Intel Core i5 RAM: View operations 2GB, Recording to h264 3GB RAM Hard drive space: 400MB OS: Windows 32/64 and Mac OSX



MT023MG-SY
  • 2.3 Mpix at 165 Fps
  • Sony IMX174
  • 1/1.2" Mono CMOS
  • Thunderbolt enabled camera

MT023CG-SY
  • 2.3 Mpix at 165 Fps
  • Sony IMX174
  • 1/1.2" Mono CMOS
  • Thunderbolt enabled camera

MT200MG-CM
  • 20 Mpix at 30 Fps
  • CMOSIS CMV20000
  • 41 mm Black and white CMOS
  • Thunderbolt enabled camera

MT200CG-CM
  • 20 Mpix at 30 Fps
  • CMOSIS CMV20000
  • 41 mm Color CMOS
  • Thunderbolt enabled camera
