Products Fast speed camera models - xiB-64 Multi camera high speed computer

Multi camera high speed computer

  • Compact (160 x 188 x 50 mm) PC for USB and PCIe cameras
  • Multiple various interface slots
  • Full speed for high speed camera image acquisition and data storage
  • Powerful 8th generation Intel Core i7 processor
  • 48GB RAM and PCIe Gen3 x16 (128 Gbit/s) interface backbone
  • Simultaneous synchronization and triggering
  • 10GbE allows seamless integration into high speed networks and servers
  • Active fan cooling
  • Compatible with Windows and Linux



Specifications are preliminary and subject to change

Buy PCI Express camera




   Mechanical Drawing

Multi camera high speed computer PC USB PCIe

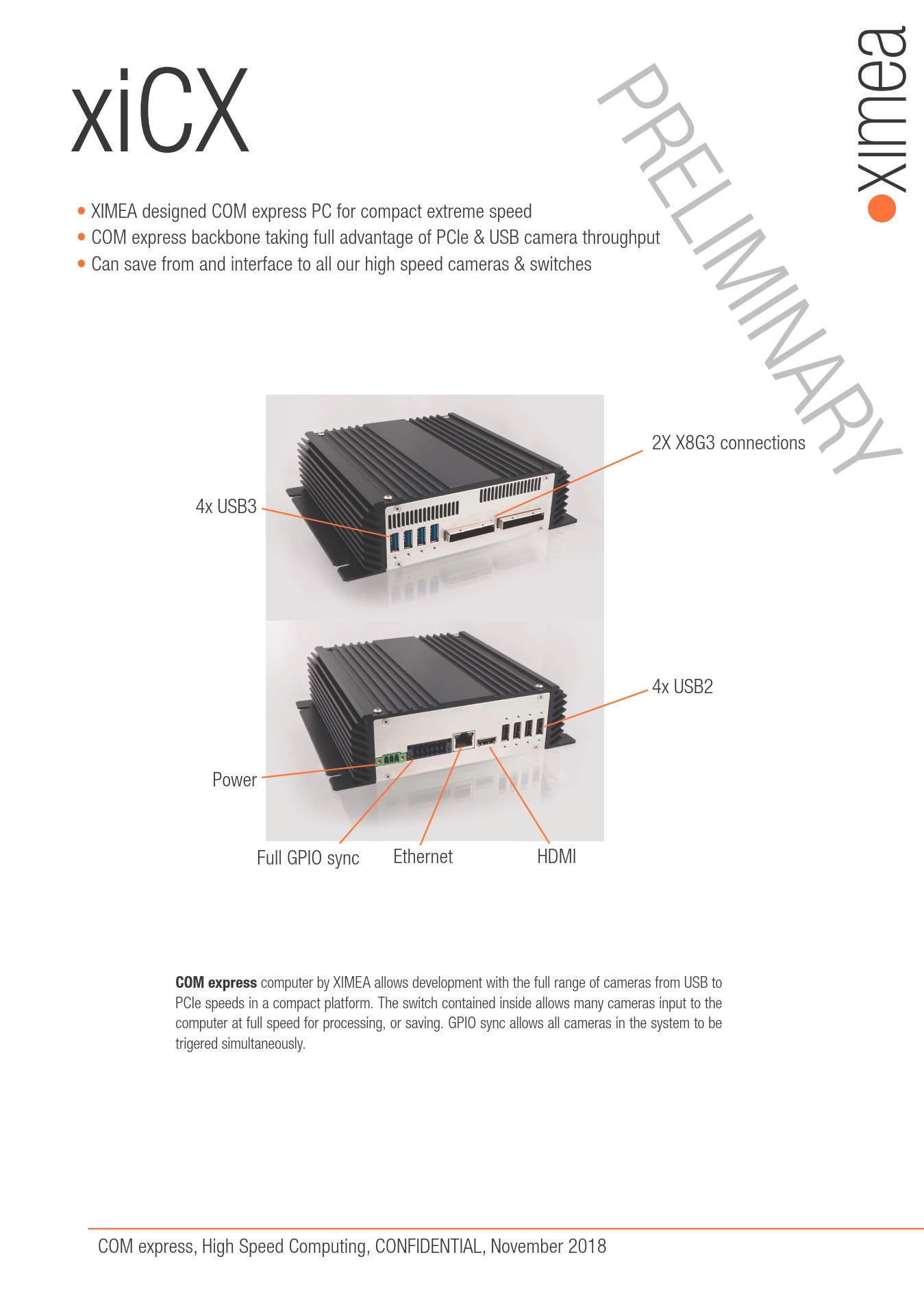

Preliminary Flyer




Core System

8th Generation Core i7-8850H, 2.6 (4.3) GHz, 6C/GT2
48GB 2133/2400 MHz DDR4 memory
Intel Generation 9 LP Graphics Core Architecture
10GbE RJ45 Networking
HDMI 1.4, max. resolution 4096x2160 @24Hz, 24bpp

High Speed Camera Interfaces
2 x PCIe Gen3 x8 (64 Gbit/s)
4 x USB3.1 Gen1 (5 Gbit/s)

SSD Storage Array
4 x SSD NVMe M.2 Slots (up to 8TB)

Additional Features
4 x isolated GPI + 4 x isolated GPO
1 x SSD NVMe M.2 for OS




Front and Back

xcx-2p-x8g3 multi camera high speed performance industrial mini computer



USB cameras pages

PCIe cameras pages

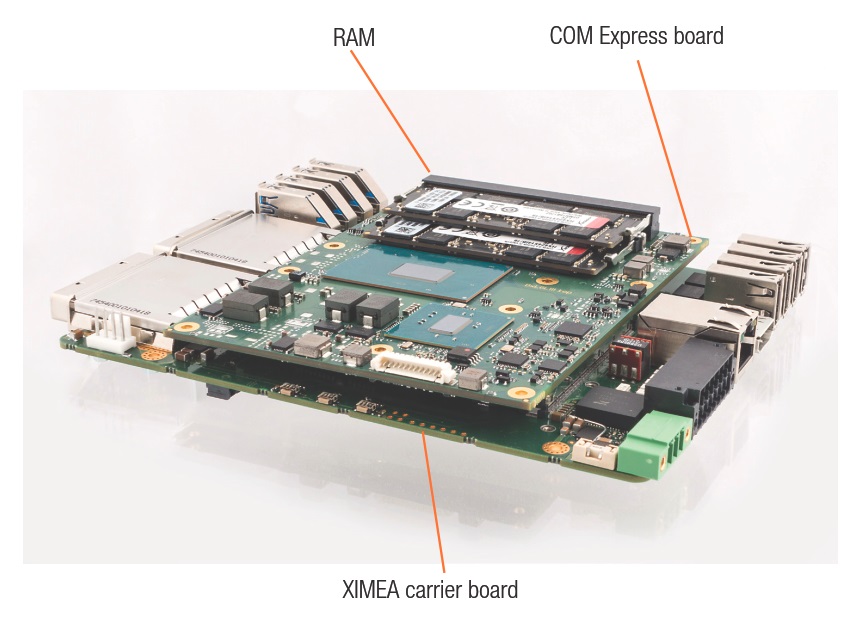

Top

com xicx computer inside.jpg

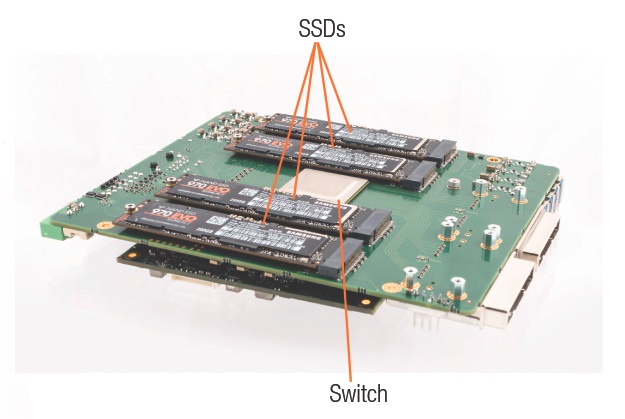

Bottom

com xicx computer components.jpg





Com Express based compact high speed computer
  • ComXPress Mainboard computer
  • High performance compact mini PC
  • 2x PCIe Gen3 x8 lanes slots
  • 4x USB3 connectors

Com Express based compact computer with MTP
  • ComXPress Mainboard computer
  • High performance compact mini PC
  • 1x PCIe Gen3 x8 lanes slots
  • 2x MTP PCIe Gen3 x4 lanes slots
