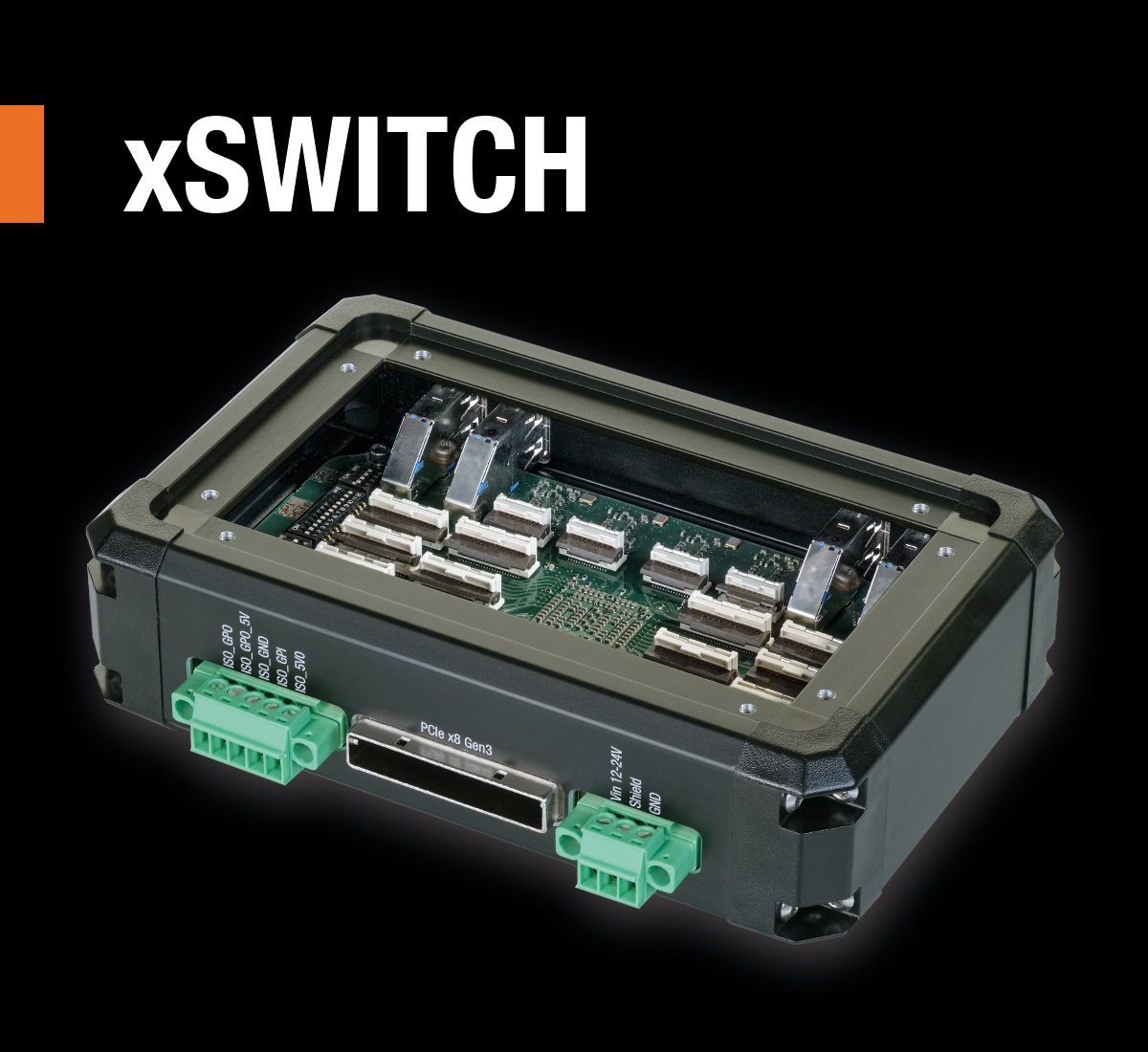

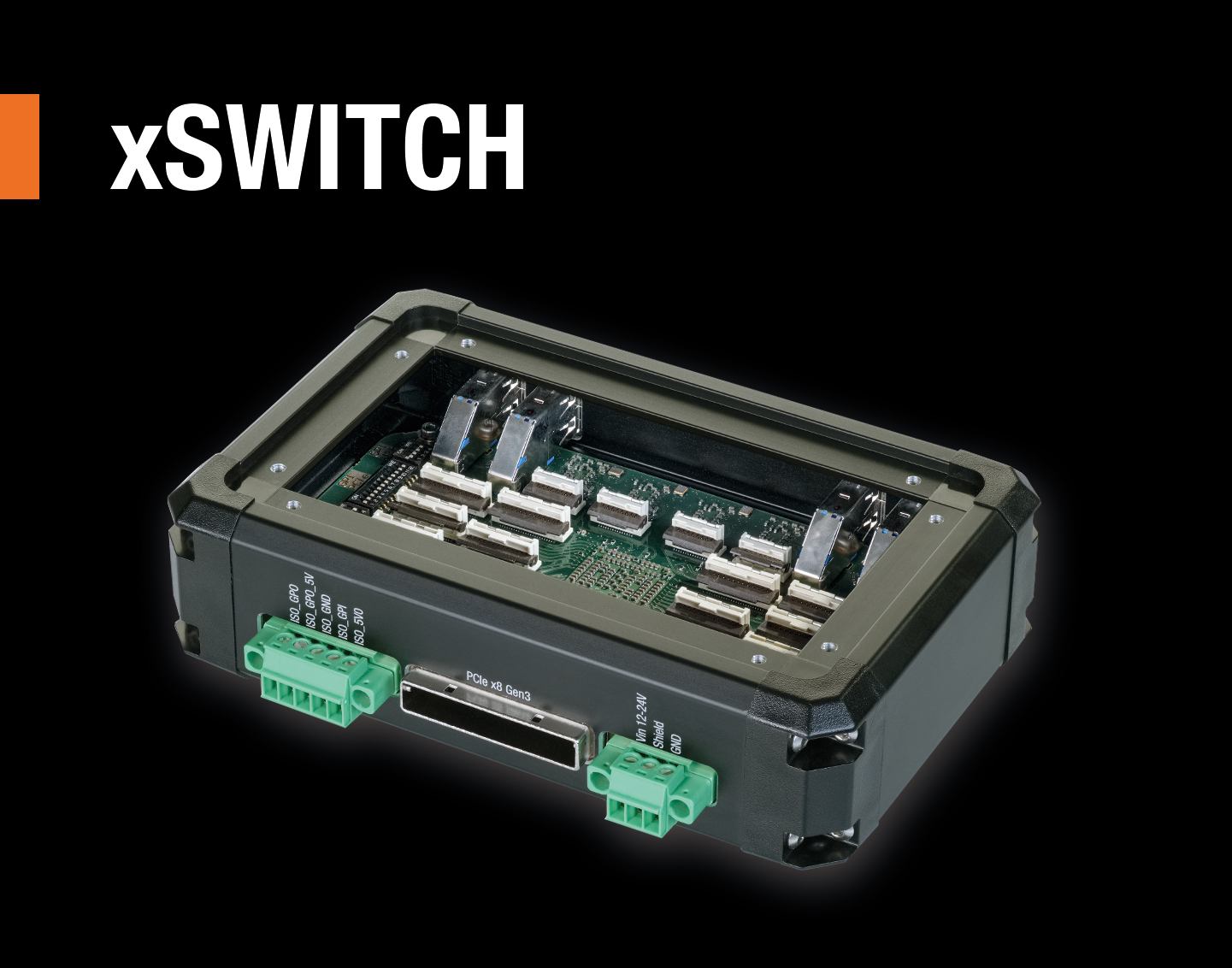

Switches for Multi camera connections

vr ar 360 panorama multi camera system setupswitch hub multi camera setup system multiple compact high speed



xiswitch manual multi camera system switch

Datasheet

alt

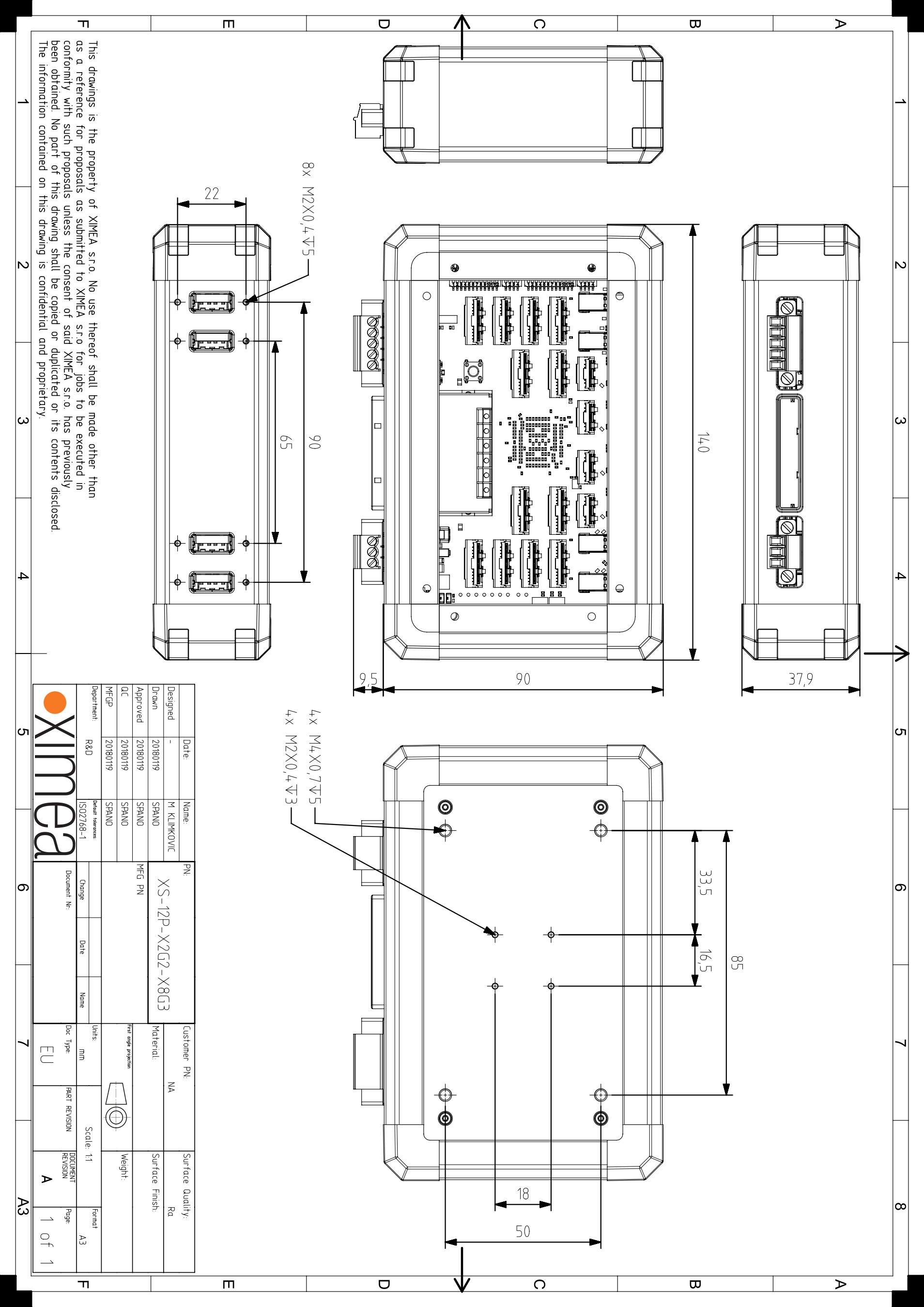

Mechanical drawing
  • Multiple inputs for various camera types and other USB devices
  • Compact multiplexor for 4 - 12+ cameras
  • Single high speed host link, up to 64 Gbit/s
  • Simultaneous synchronization and triggering with GPIO
  • Supports different combinations of interfaces and camera models
  • Ideal for Multi camera system setups like 360 panorama
  • USB, PCIe, Firefly, Flat flex ribbon cables
  • Camera with switch cabling can run 100m+

Compatible USB cameras pages

Compatible PCIe cameras pages





Buy PCI Express camera

Standardized models

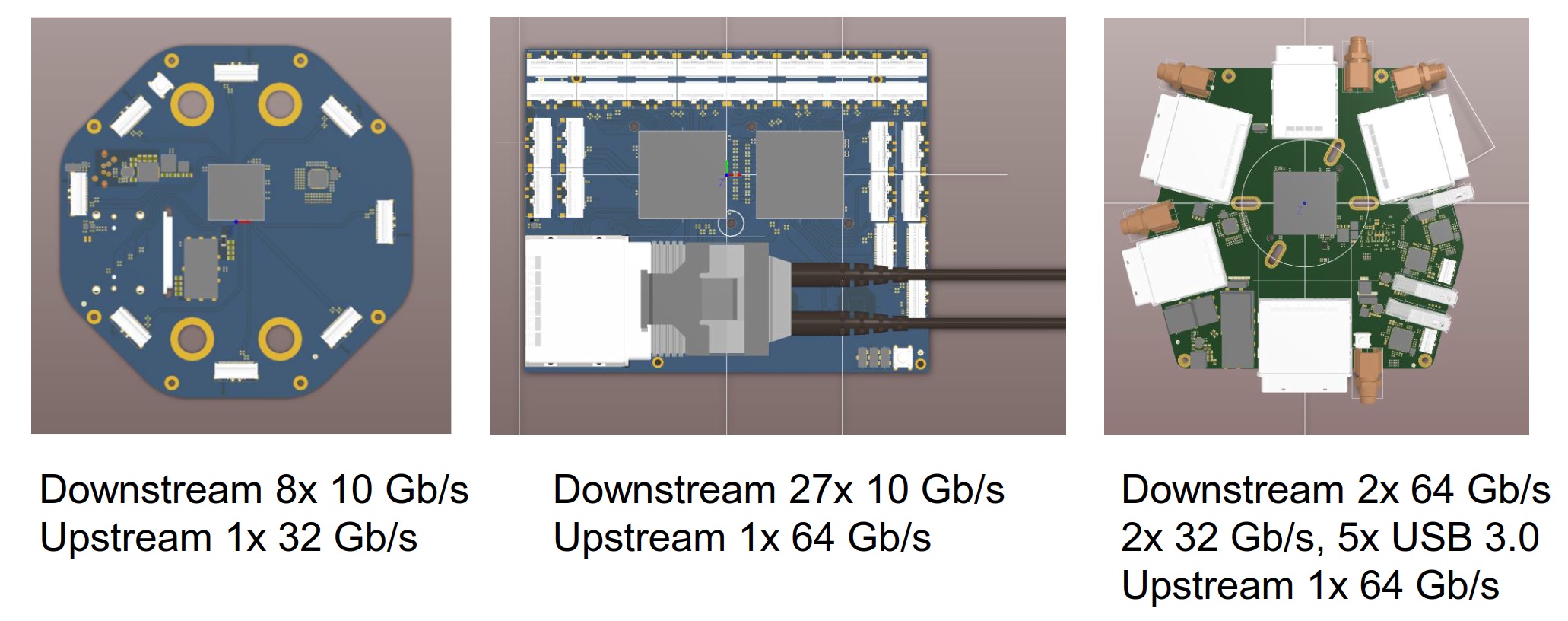

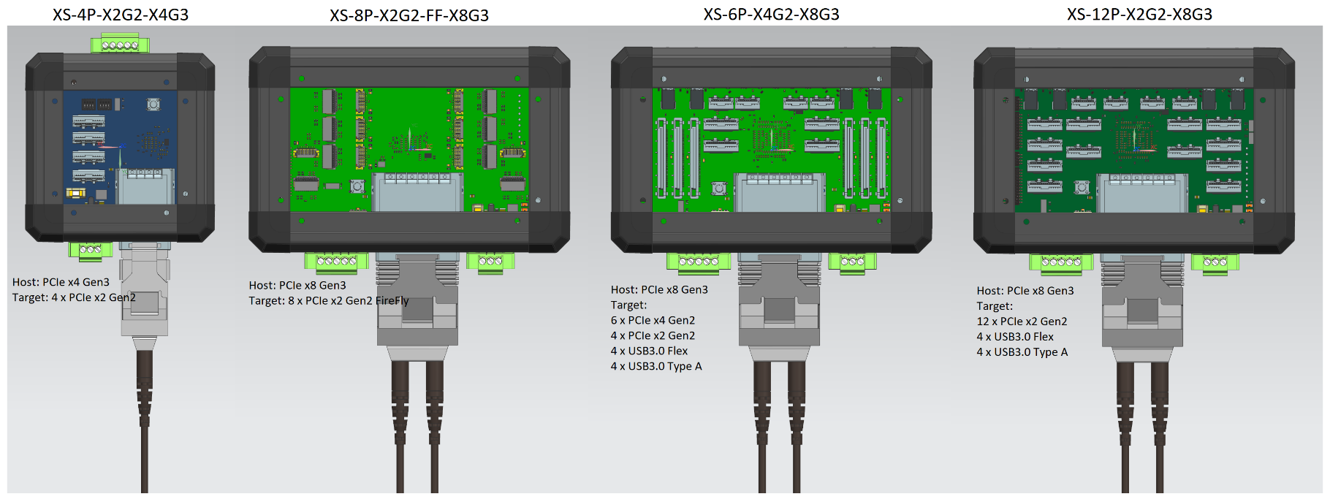

multi camera setup system switch lineup usb PCI Express

Specifications are preliminary and subject to change




Possible concepts

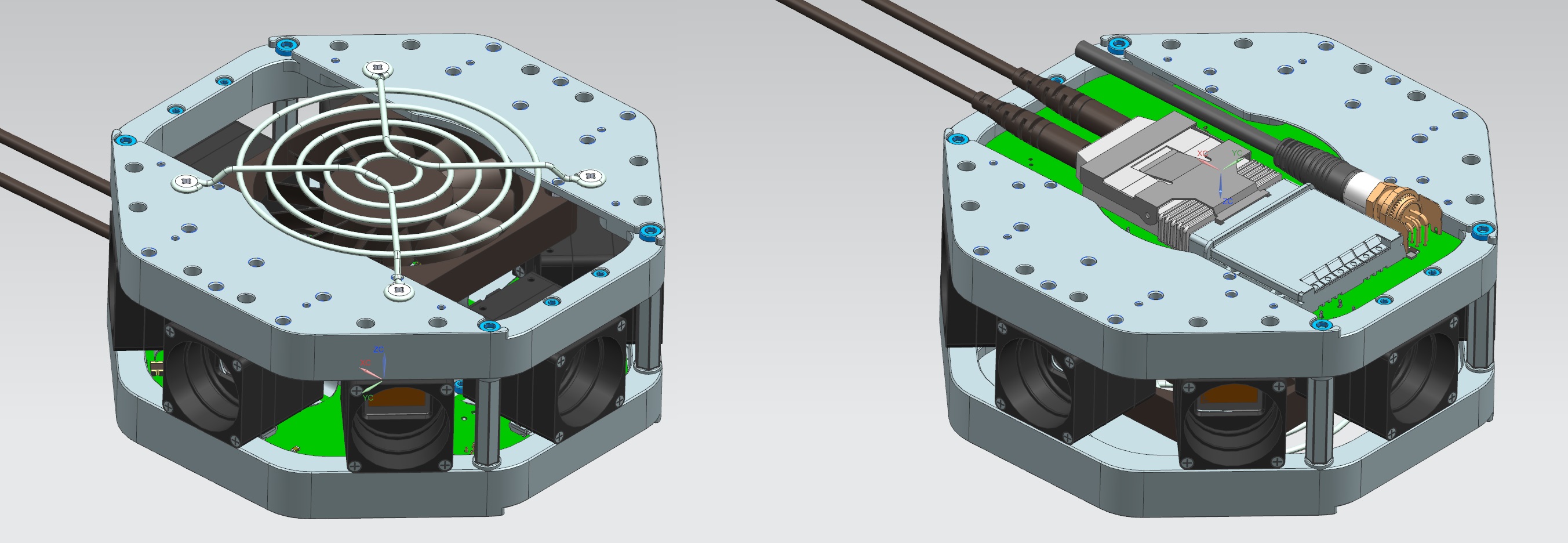

360 panorama multi camera setup system vr ar



multi camera setup system switch 360 panorama


Switches for Embedded vision systems cameras USB3 PCIe adapters multi camera setup system switch lineup pcie USB3




Multi camera platform 4 main ports
Multi camera platform 4 main ports
  • 4x X2G2 Flex Connectors
  • Host port iPass X4G3
  • Output 32 Gbits
  • 4x cameras from xiX family
Multi camera platform 6 main ports
Multi camera platform 6 main ports
  • 6x X4G2 Flex Connectors
  • Host port iPass X8G3
  • Output 64 Gbits
  • For various PCIe and USB3 cameras
Multi camera platform 8 ports and iPass output
Multi camera platform 8 ports and iPass output
  • 8x X2G2 Firefly Connectors
  • Host port iPass X8G3
  • Output 64 Gbits
  • 8x cameras from xiX family
Multi camera platform 8 ports and MTP output
Multi camera platform 8 ports and MTP output
  • 8x Firefly X2G2 Connectors
  • MTP Host port X8G3
  • Output 64 Gbits
  • 8x cameras from xiX family
Multi camera platform 12 main ports
Multi camera platform 12 main ports
  • 12x X2G2 Flex Connectors
  • Host port iPass X8G3
  • Output 64 Gbits
  • 12x cameras from xiX family
Multi camera platform 12 main ports and SFF output
Multi camera platform 12 main ports and SFF output
  • 12x X2G2 Flex Connectors
  • Host ports 2x SFF-8644
  • Output 64 Gbits
  • 12x cameras from xiX family
Host adapter for multiple cameras - 8 Firefly ports
Host adapter for multiple cameras - 8 Firefly ports
  • 8x Firefly X4G3 Connectors CONCEPT
  • Host adapter with X16G3 output
  • Bandwidth 128 Gbits
  • 8x cameras from xiX family
