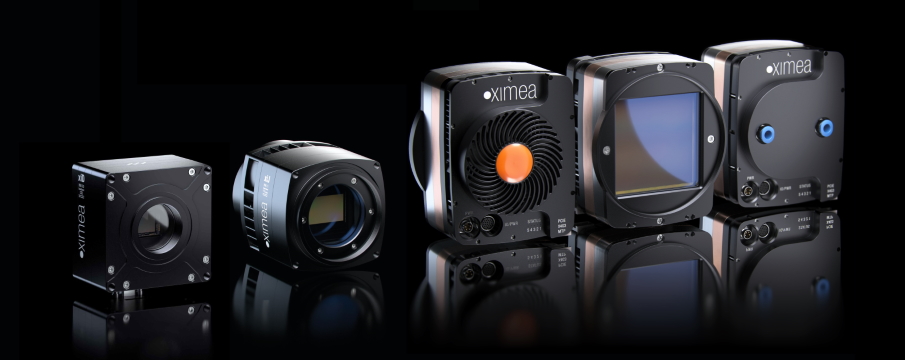

Extensive range of high grade camera lines come in various resolutions from 1.4 to 29 Megapixels. All cameras are equipped with high-quality CCD or sCMOS sensors some of which are TE Peltier cooled long exposure and low-light related applications.

USB 3.0 Sony CCD Cameras

Sony CCD Scientific grade camera ICX674 ICX694 ICX814 ICX834



Originating from Scientific field, these high end, Grade 1 Sony sensor USB3 cameras are enhanced with EXview HAD CCD II technology and offer resolutions from 2.8 to 12 MPix.

Full frame rate potential with multi-tap readout.

Hyperspectral mini USB3 Cameras

USB3 Hyperspectral imaging HSI cameras smallest



The xiSpec line of Hyperspectral Imaging (HSI) cameras is equipped with compact sensors from IMEC. With its form factor, it is the smallest and lightest in class.

Ideal for UAV use.

Compact X-RAY Cameras

Kodak Truesense On Semicondactor cooled Scientific grade X-RAY compact



X-Ray direct phosphor imaging cameras include resolutions of 8, 11, 15 and 16 Megapixel with 14 bit images. Uniquely small TE cooled models suitable for Micro CT applications.

Support energy levels from 5 up to 100 keV.

Sensitive CCD Cameras

icg ccd sensors cameras illustration



XIMEA’s cameras with CCD sensors from Sony or Truesense (Kodak, now OnSemi) offer resolutions up to 16 Mpix and come in color or grayscale configurations with scientific grade image quality at real-time frame rates

TE Cooled CCD with USB3

Truesense Kodak KAI-4070 KAI-8052 KAI-16070 KAI-29052 TE cooled Scientific grade



Scientific class of compact USB3 cameras with resolutions from 4 to 29 MPix, based on CCD sensors from Truesense/Kodak like KAI-04070, KAI-08052, KAI-16070 and KAI-29052 coupled with Peltier thermoelectric cooling.

Scientific sCMOS Cameras

Sceintific sCMOS cooled camera grade back illuminated TE



Newest family of Scientific cameras with sCMOS sensors and TE cooling. Resolutions start at 4 Mpix and include Backside illuminated versions. Extremely low noise and high Dynamic range with Quantum efficiency up to 95%.



Specialties of XIMEA Scientific grade cameras:

  1. High dynamic range – from 70 dB with CCD sensors to 90 dB with sCMOS sensors
  2. High Quantum efficiency reaching up to 95%
  3. Dark noise lowered down to 1 e-
  4. ADC readout options with 2x 12 bit, 14 bit or 16 bit output
  5. Linearity below 1% and highest uniformity
  6. Special anti-blooming functionality, Real color truth with unique debayering solutions and high quality filters
  7. Large format sensors and big size of pixels
  8. Economical power consumption
  9. Fastest speeds - using all available readout capability
  10. Peltier Cooling (TEC)

XIMEA’s high-end cameras are designed for a variety of life and material science applications, including Ophthalmology, Pathology, Histology, H & E Staining, Immuno - Fluorescence, Bright-field, Phase-Contrast & Darkfield microscopy, Metallurgical Microscopy (Metallography, Mineralogy, Petrography), Cytology, Green Fluorescent Protein (GFP) applications, In vivo bioluminescence (Biofilm imaging), DNA and Forensic Analysis, FISH, CA++ Ratio and more. Also use in industrial fields like Flat panel and semiconductor inspection, Manufacturing Quality Control and Failure Analysis, Motility and Motion analysis and Solar panel inspection.
