PIV - Particle Image Velocimetry

PIV - Particle Image Velocimetry - Flow inspection and optical quality control with machine vision. Introduction: system setup, guide and applications


Particle image velocimetry or PIV is a non-intrusive laser optical method of flow visualization and diagnostics used for processes like combustion, turbulence, spray atomization and microfluidics.
It is utilized in scientific and industrial applications to obtain instantaneous velocity measurements and related properties in fluids.
The fluid is seeded with tracer particles which faithfully follow the flow dynamics between two light pulses.
The target area in the fluid with embedded particles is illuminated with a light sheet to make particles visible.
The motion of particles is then used to calculate speed and direction (velocity field) of the analyzed flow.
For real-time velocity maps, it is important to select the right cameras and dedicated computing hardware.

Particle Image Velocimetry System Setup Guide

An important part of the setup is a suitable camera that should be able to capture each light pulse in separate image frames.

Hardware components

Typical PIV apparatus consists of:


  • Suitable camera,
  • Strobe or laser,
  • Optical arrangement like a cylindrical lens (to convert a light beam to a line),
  • Synchronizer to act as an external trigger for control of the camera and laser,
  • Sometimes a fiber optic cable or liquid light guide connects the lens setup to the laser,
  • Special software used for PIV is also required to post-process the optical images.


In the past, a CCD sensor based camera was typically used in PIV systems and micro-LIF or Laser Induced Fluorescence.
However, with CCD slowly being discontinued the System integrators are starting to explore CMOS and especially sCMOS based cameras.

Camera

To perform PIV analysis on the flow, two exposures of laser light are required upon the camera from the flow.
Originally, with the inability of cameras to capture multiple frames at high speeds, both exposures were captured on the same frame and this single frame was used to determine the flow.
A process called autocorrelation was used for this analysis.
However, as a result of autocorrelation, the direction of the flow becomes uncertain, as it is not clear which particle spots are from the first pulse and which are from the second pulse.

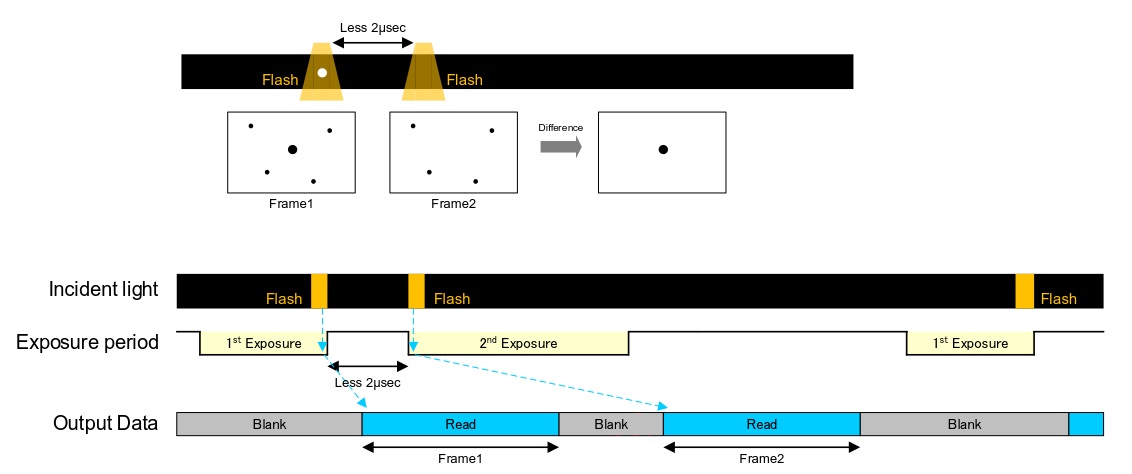

Short interval Shutter mode PIV Particle image


Faster digital cameras using CCD or CMOS chips were developed since then that can capture two frames at high speed with a few hundred ns (nanoseconds) difference between the frames.
This has allowed each exposure to be isolated on its own frame for more accurate cross-correlation analysis.
The limitation of typical cameras is that this fast speed is limited to a pair of shots because each pair of shots must be transferred to the computer before another pair of shots can be taken.
Typical cameras can only take a pair of shots at a much slower speed and while high speed CCD or CMOS cameras are available they are much more expensive.

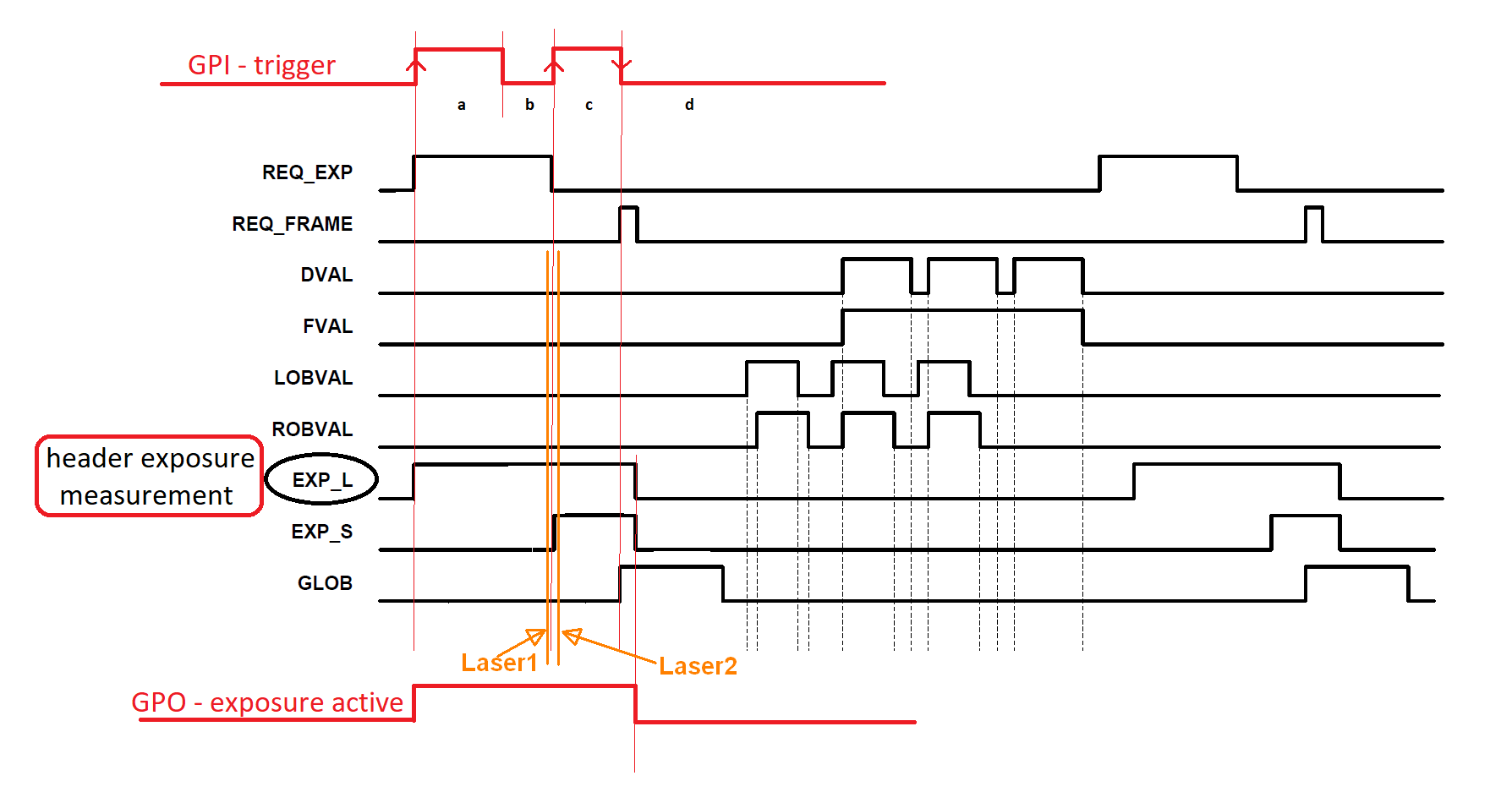

camera header exposure measurement

Particle Image Velocimetry System Costs

The system price obviously depends on many factors where a significant role is played by the camera choice.
While there are no cheap solutions in case of PIV various camera vendors offer a range of expense grades.

XIMEA offer

  • xiD camera family with CCD and USB3
    • CCD camera is capable of exposure of the next image in a short time after exposure of the first
    • Scenario:
      • Camera is in a free run mode with exposure time = 100ms
      • Camera sends trigger pulse when exposure is started (master)
      • Then the system waits a specified time (~ 100ms) and fires first laser pulse, waits for some time (hundreds of ns) and fires second laser pulse
      • Application reads two images. Each image with a different laser
    • SONY plans to offer the ICX family of sensors until 2025

  • CB500, these models already have implemented dual exposure controlled by the trigger
    • Scenario (please see the picture above):
      • Application generates first exposure pulse (now sensor is exposing Even pixels)
      • Application waits some time (e.g. 10ms), fires the first laser pulse
      • Application generates second exposure pulse, waits for a short time (e.g. 100ns) and fires first laser pulse (now sensor is exposing Even+Odd pixels)
      • Application reads one image
      • Application subtracts Even pixel values from Odd pixel values (Odd’ = Odd-Even) to get clean Odd values

  • CB120, the same as for CB500, except for dual-triggering, that is not implemented yet. Sensor CMV12000 supports such a dual-exposure feature.

  • CB262, similar to CB500, except for dual-triggering, that is not implemented yet. Sensor GMAX0505 supports such an interleaved-HDR feature, where odd/even lines are used.

PIV Systems Applications

As with any successful technique, PIV has been applied to a variety of flow related tasks, like flow over an aircraft wing in a wind tunnel or vortex formation in prosthetic heart valves.
Basic PIV algorithms operating with cross-correlation can be implemented during a few hours, where sophisticated solutions using Artificial intelligence require considerable expertise and resources.

Flow types

  • In the air (gas) flows, the seeding particles are typically oil drops ranging from 1 µm to 5 µm.
  • For water (liquid) flow, the seeding is typically polystyrene, polyamide, or hollow glass spheres ranging from 5 µm to 100 µm.

Application types

Where LDV (Laser Doppler Velocimetery) can measure particle velocities one location at a time, PIV method can give a global view of instantaneous velocities in two or three dimensions.
Most of PIV systems that are used provide a two-dimensional velocity data in a planar domain at distinct instants in time.


  • 2D2C - Planar PIV techniques measure two velocity components in a plane while utilizing a single camera


  • 2D2C - MicroPIV is a tool for measuring the velocity profile across a plane in a microfluidic device. These systems provide two velocity components in a plane in lab-on-a-chip, microchannels and others


  • 3D3C - Volumetric Velocimetry systems capture all three velocity components (3C) in three dimensions (3D)
