xiQ - Input/Output Pinning and Cable¶
Input / Output Receptacle Location¶
IO interface receptacle is located on back side of the camera:
IO Receptacle Pinning¶

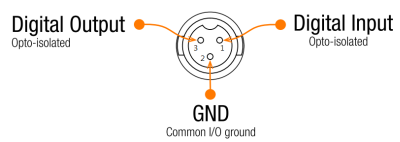

Pinning of the IO receptacle:
| Pin number | Signal |
| 1 | Digital Input (VDI) |
| 2 | Common (IO Ground) |
| 3 | Digital Output (VDO) |
| SHELL | Common (IO Ground) |
IO Receptacle Part Number¶
HIROSE SR38-4R-3S(71)

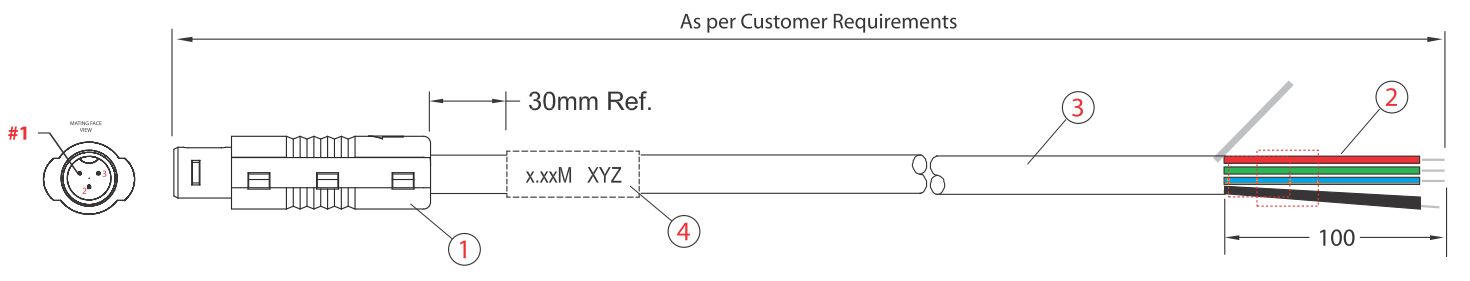

IO Cable¶
| Item | Description |
| 1 | HRS SR38-4P-3P(71)- Hirose SR38 Series Male Connector |
| 2 | Process Ends |
| 3 | A12-1709 [OD=3.30mm] <BLK> (10/0.120x3C) + 32/0.120 27AWG 3Core Line Cord |
| 4 | Cable Label |
Cable wiring:¶
| Pin number | IO Signal | Wire Colour (old) | Wire Colour |
| 1 | Digital Input (VDI) | Red | Red |
| 2 | GND (Common IO Ground) | Green | Black |
| 3 | Digital Output (VDO) | Blue | White |
| SHELL | Cable shield | Black | Black (thicker) |
