EVT - EyeVision

Introduction

The ready-to-use image processing software EyeVision by EVT allows the customer to create image processing solutions with just a few mouse clicks due to the drag-and-drop function.
Therefore it is very easy to create difficult and complex measurement and inspection applications.
The software is portable and the adaptation to the products of XIMEA was simple.
Hence all XIMEA cameras are available for solutions with the EyeVision software package.
The EyeVision software runs on operating systems WXP, Vista and W7, as well as Linux and VCOS.
This flexibility allows the user to select the hardware optimized for the respective application.
The numerous functions cover not only 2D and 3D measurement technique with a pixel-by-pixel accuracy, contour correlation and reading function for OCR, OCV, DMC, QR and bar code, but also filter functions and morphology operations.
The easiest way to get an overview of the efficiency of the software is to download and install the software from our web server.
This trial version offers all functions of the software.

Installation

  • Access the EVT homepage
  • Click onto the CD image in the upper right corner
  • Then you can access the download area.
  • Download PDF "FirstStepsXimea.pdf", which is next to the download link
  • Follow the instructions described in this PDF where is described how to install the software and create your first inspection program

First Steps

Watch the video EyeVision how to create a Program
See other videos on EyeVisionTechnology channel
Or on EVT video page you can find also videos for other software commands.
With the installation of the software also the EyeVision manual in German and English as well as additional tools to test the communication and display screen.

Tool Sets

With the trial version you can use the complete standard command set and in the command administration you can activate all other command sets.
Also for different industry branches EVT has created special tools, which make it easier for the user to develop inspection programs, such as the Solar command set.
With the SolarEye command set, the user simply marks a solar cell and then disrupting contours are removed, the position and rotation are determined, contours and chippings are inspected, and may more.
EVT has special commands also for the semicon-, pharma-, packaging-, screw- and food industry.
These tool sets are macro collections and therefore it is easier for the user in those industries to create an image processing solution.

One example is the caliper command, which as ready-to-use measurement tool is available besides the measurement technique command.

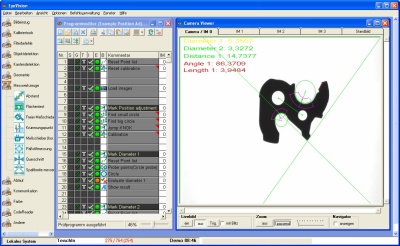

Development environment


Caliper (macro example)
