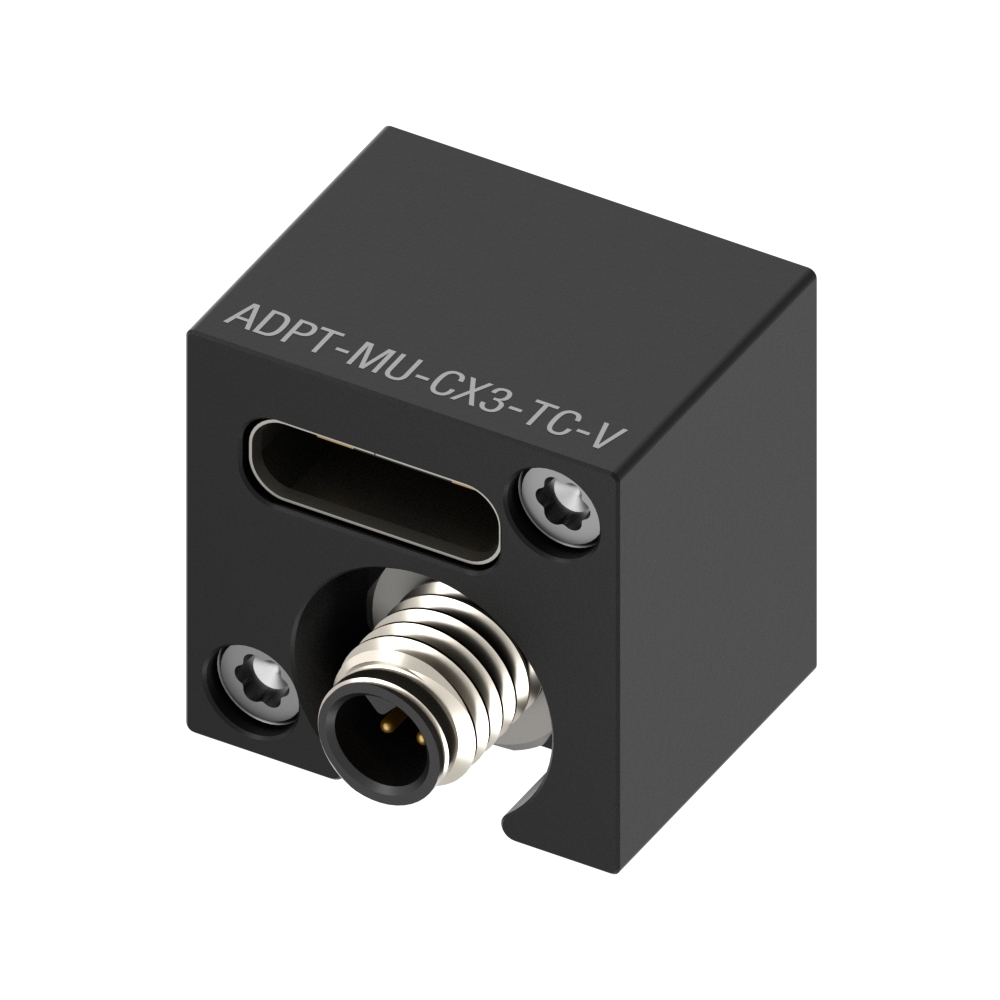

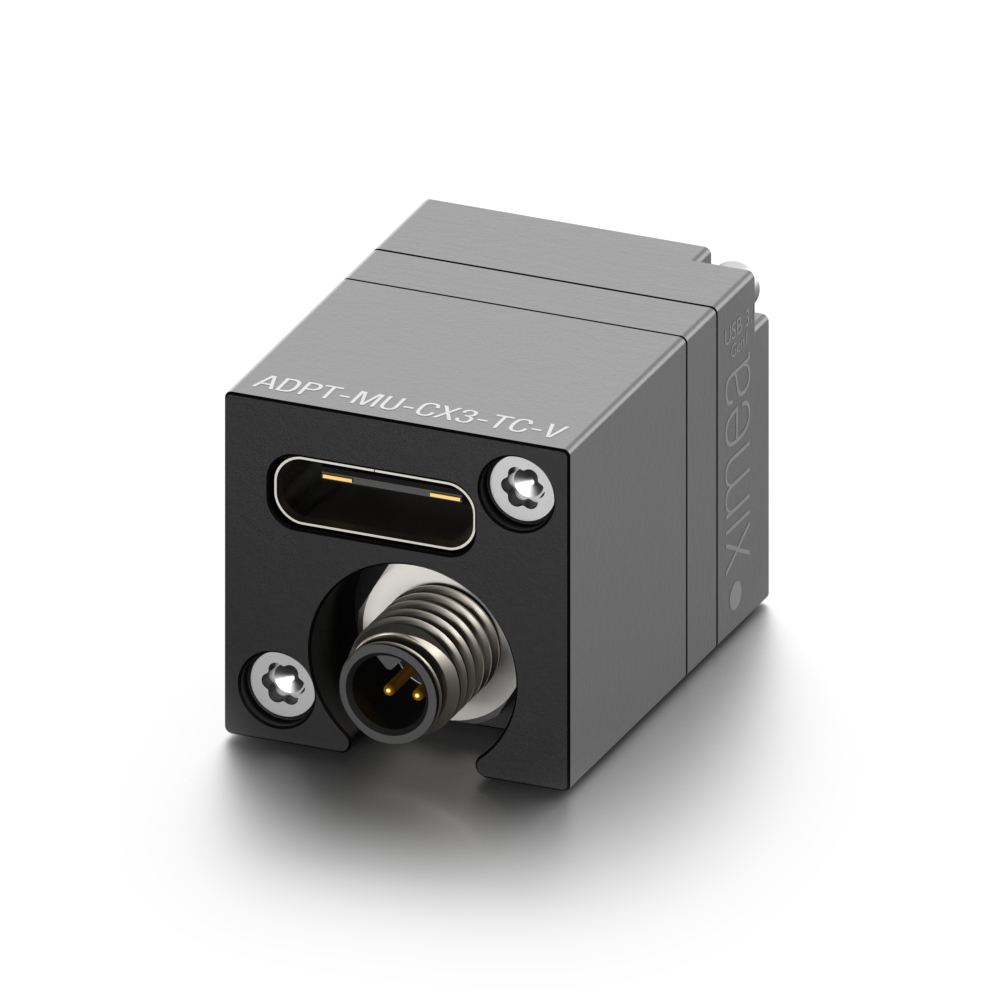

ADPT-MU-CX3-TC-V
USB 3.0 Type-C extension for MU camera series
Specifications
Product statusActive
- Suitable for: xiMU
- Mini backside adapter extension with USB Type-C and I/O connector
- Designed for connecting compact MU 15 x 15 mm cameras
- Features a 3-pin M5 I/O connector for triggering and synchronization
- I/O connector is compatible with MQ-S7 accessories
- The adapter is mounted on the camera rear using 2x M1.6x12 countersunk TRX screws

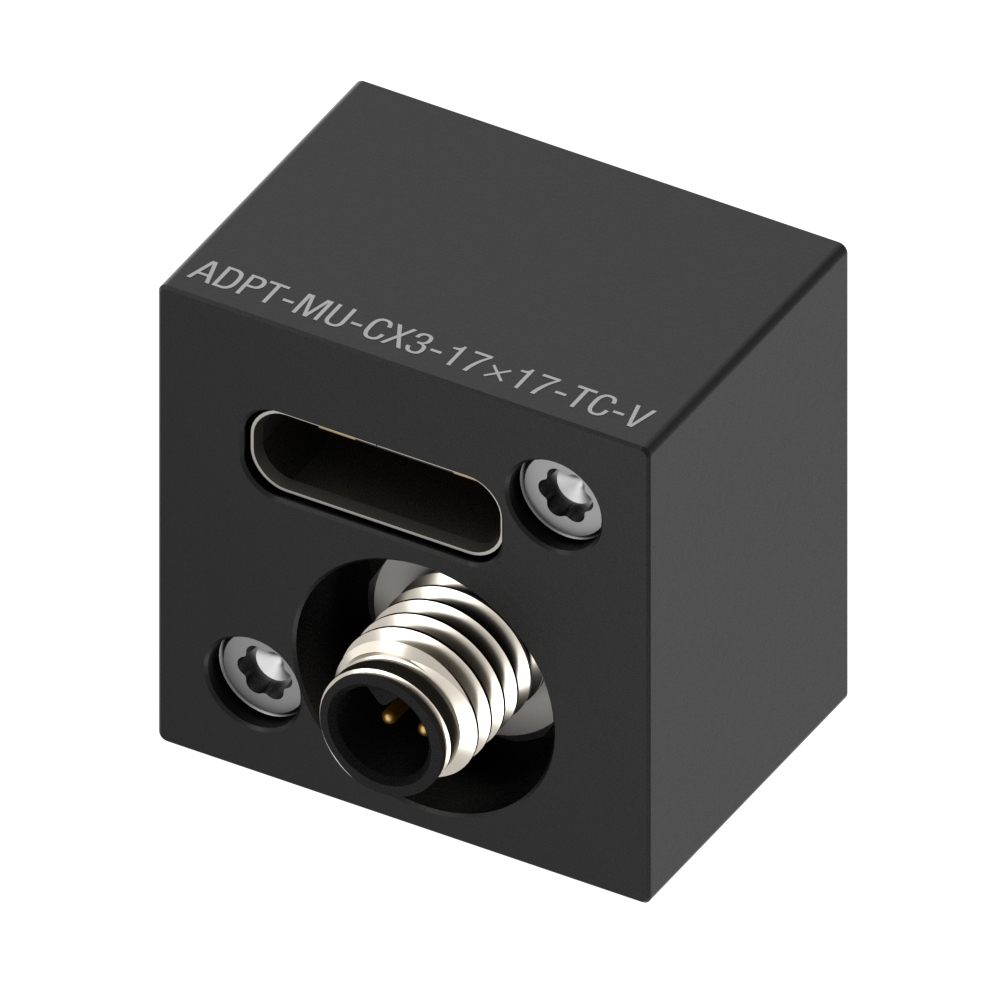

- Also available in a 17 x 17 mm version for the MU051 camera model
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
