Automation and robotics
applications

xiRay-rechts-cut
automation and robotics Cameras for automation

Automation and robotics cameras applications

In this day and age robots are becoming not only an important part of the automatization of the production lines, in the manufacturing industry, but in certain cases and situations even a must-have due to risk factors that would present danger for the human employees.

Being already very fast and reliable these machines sometimes face their limits if not equipped with a computer vision system that would provide them with the ability to work on more sophisticated tasks and under more flexible conditions in a complex environment.

This is especially true for the applications where they are collaborating together with their human counterparts as so called cobots.

XIMEA cameras have many characteristics that make them ideally suitable for use with robots and robotic arms.

Besides the various types of robots and machines, the automation industry often needs high-speed cameras to catch extremely fast processes and based on the gathered knowledge adjusts manufacturing procedure or understands how to optimize the product overall.

3D robot vision is a novel technology that enables industrial robots to make more sophisticated judgements.

There are different tests performed for car crash safety restraints or airbag deployment, vehicle impact, flight kinematics and others.

In addition to being fast, the cameras exploited for such purposes have to occasionally offer an extremely short inter-frame time.
This was initially a prerogative of CCD based models, but with the advancement in technology and proceeding discontinuation of CCD sensors, the new CMOS and sCMOS could potentially provide a suitable replacement solution.

XIMEA advantages

  • High resolution sensors

  • Full speed potential

  • Suitable for Embedded vision systems

  • Smallest form factor

Robotic-arms_applications

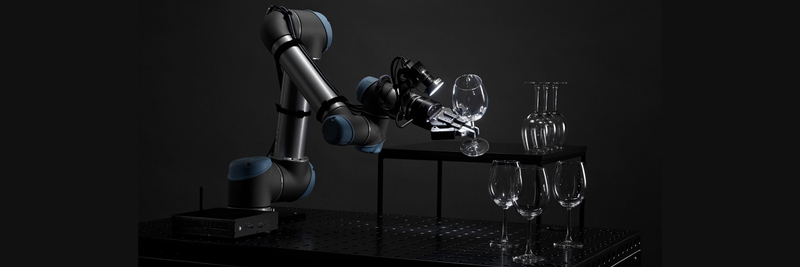

Robotic arms

Automakers often use vision-guided robotics for simple tasks like pick-and-place, but for more diverse set of jobs they integrate vision cameras.
PIV-particle-image-velocimetry-high-speed-green-black

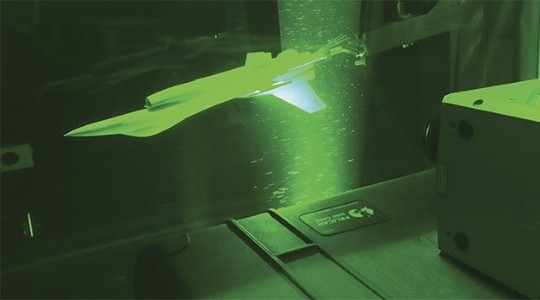

High speed particle image velocimetry

The fields of Wind engineering, Industrial Aerodynamics and others come to rely on special cameras with short interframe time for PIV applications.

Cameras suitable for automation

CB500MG-CM

CB500MG-CM

CMOSIS CMV50000 Monochrome High Resolution camera with PCIe X4 Gen 2
Resolution: 47.5 MPixSensor resolution: 7920 x 6004 Interface: PCIe X4 Gen 2 Frame rate: 30 FPSSensor technology: CMOS Sensor size: 35mm Full Frame Sensor vendor: CMOSIS Sensor model: CMV50000
CB160CG-LX-X8G3

CB160CG-LX-X8G3

Luxima LUX160 Color high speed camera with PCIe X8 Gen 3
Resolution: 16.1 MPixSensor resolution: 4704 x 3424 Interface: PCIe X8 Gen 3 Frame rate: 311 FPSSensor technology: CMOS Sensor size: 4/3" Sensor vendor: Luxima Sensor model: LUX160
CB160MG-LX-X8G3

CB160MG-LX-X8G3

Luxima LUX160 Monochrome high speed camera with PCIe X8 Gen 3
Resolution: 16.1 MPixSensor resolution: 4704 x 3424 Interface: PCIe X8 Gen 3 Frame rate: 311 FPSSensor technology: CMOS Sensor size: 4/3" Sensor vendor: Luxima Sensor model: LUX160
MX500CG-CM-X4G2

MX500CG-CM-X4G2

CMOSIS CMV50000 Color Embedded camera with PCIe X4 Gen 2
Resolution: 47.5 MPixSensor resolution: 7920 x 6004 Interface: PCIe X4 Gen 2 Frame rate: 30 FPSSensor technology: CMOS Sensor size: 35mm Full Frame Sensor vendor: CMOSIS Sensor model: CMV50000
MX500MG-CM-X4G2

MX500MG-CM-X4G2

CMOSIS CMV50000 Monochrome Embedded camera with PCIe X4 Gen 2
Resolution: 47.5 MPixSensor resolution: 7920 x 6004 Interface: PCIe X4 Gen 2 Frame rate: 30 FPSSensor technology: CMOS Sensor size: 35mm Full Frame Sensor vendor: CMOSIS Sensor model: CMV50000
contactdefault









Disclaimer

XIMEA is a component manufacturer - cameras being the main component and focus.
We welcome your inquiries in regards to applications and will try to provide advice or recommendation to the best of our knowledge and experience.
However, XIMEA is not a Solution provider nor a System integrator, which means that we can offer suggestions only concerning the camera part of the overall setup.
