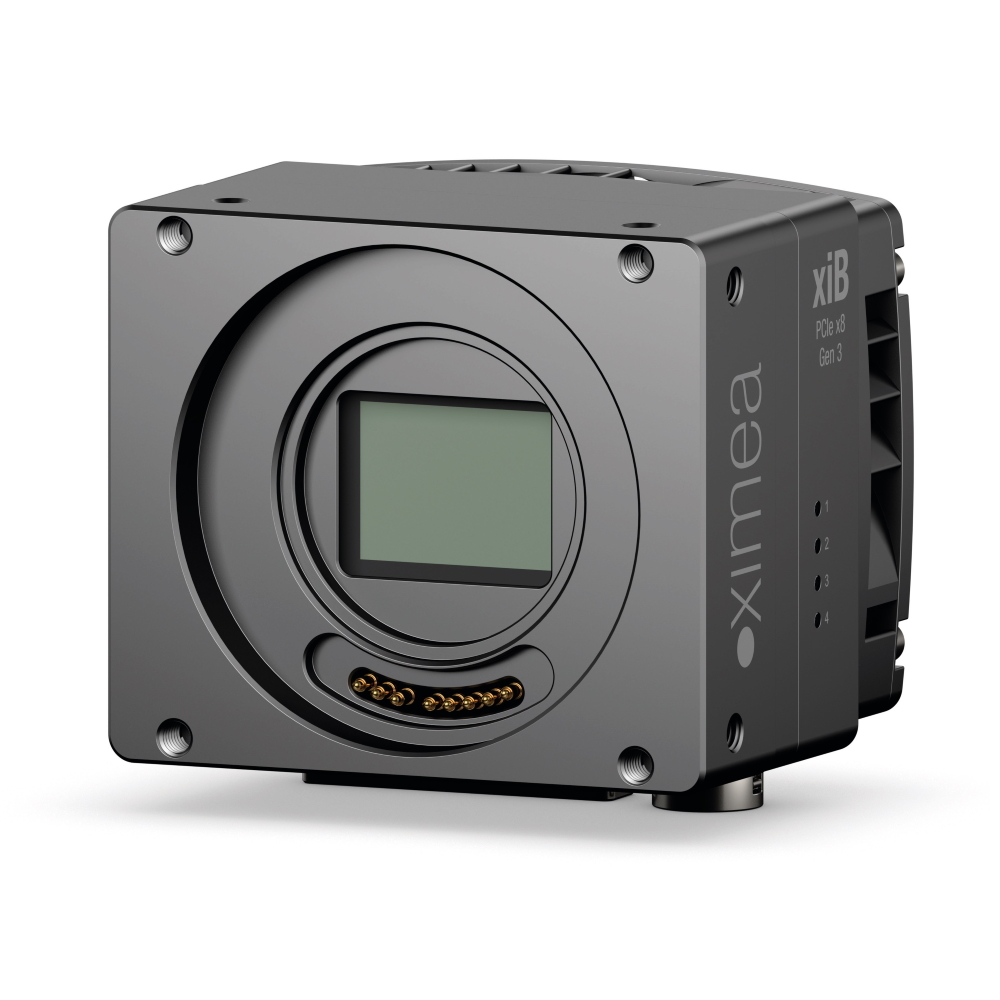

CB160MG-LX-X8G3
High speed camera with 16.1 Mpix Monochrome Luxima LUX160 sensor and PCIe X8 Gen 3 interface
Specifications
Product statusActive
Sensor vendorLuxima
Sensor modelLUX160
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate311 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
FAST
High-speed interface with a bandwidth of 64 Gbit/s. Over 7 GB/s stream to storage or directly to GPU memory with selected PC configurations.
FUNCTIONAL
Active Canon EF-mount option for aperture and focus control through the camera.
LOW-LATENCY
Minimum latency and CPU load. PCIe interface comes with the lowest latency possible, delivering data directly to RAM (DMA) with no overhead from critical processing infrastructure.
|
Sensor properties
|
||
| Resolution | 16.1 MPix | |
| Sensor resolution | 4704 x 3424 | |
| Sensor vendor | Luxima | |
| Sensor model | LUX160 | |
| Sensor type | Monochrome | |
| Sensor technology | CMOS | |
| Sensor size | 4/3" | |
| Sensor active area | 18 x 13 mm | |
| Sensor diagonal | 22.7 mm | |
| Pixel size | 3.9 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|

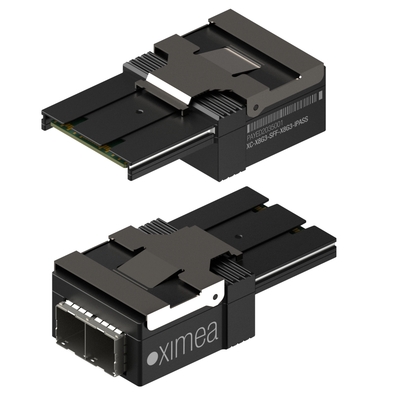

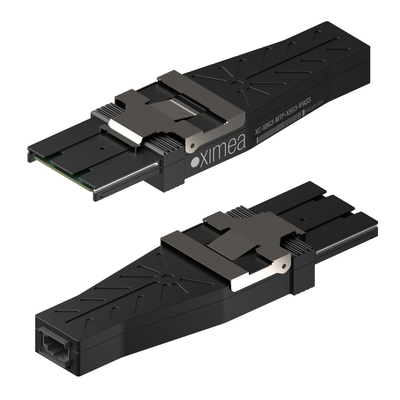

||
| Frame rate | 311 FPS | |
| Bits | 10 bits | |
| Interface | PCIe X8 Gen 3 | |
| Data interface speed | 63.04 Gbit/s | |
| Data connector type | PCIe-iPass-X8G3 | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 1 µs | |
| Exposure maximum | 1 s | |
| Power consumption | 13.4 Watt | |
| Heat dissipation | Optional Heatsink, Fan air cooling | |
| Sensor cooling | No | |
|
EMVA 1288 results
|
||
| Dynamic range | 58.1 dB | |
| Full well Capacity | 10000 e- | |
| Saturation Capacity | 7206.2 e- | |
| Readout noise | 9.1 e- | |
| Signal to noise ratio | 39.1 dB | |
| Peak QE | 62% | |
| Gain analog max | 63 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | C-mount, EF-mount option | |
| Enclosure type | Standard housing | |

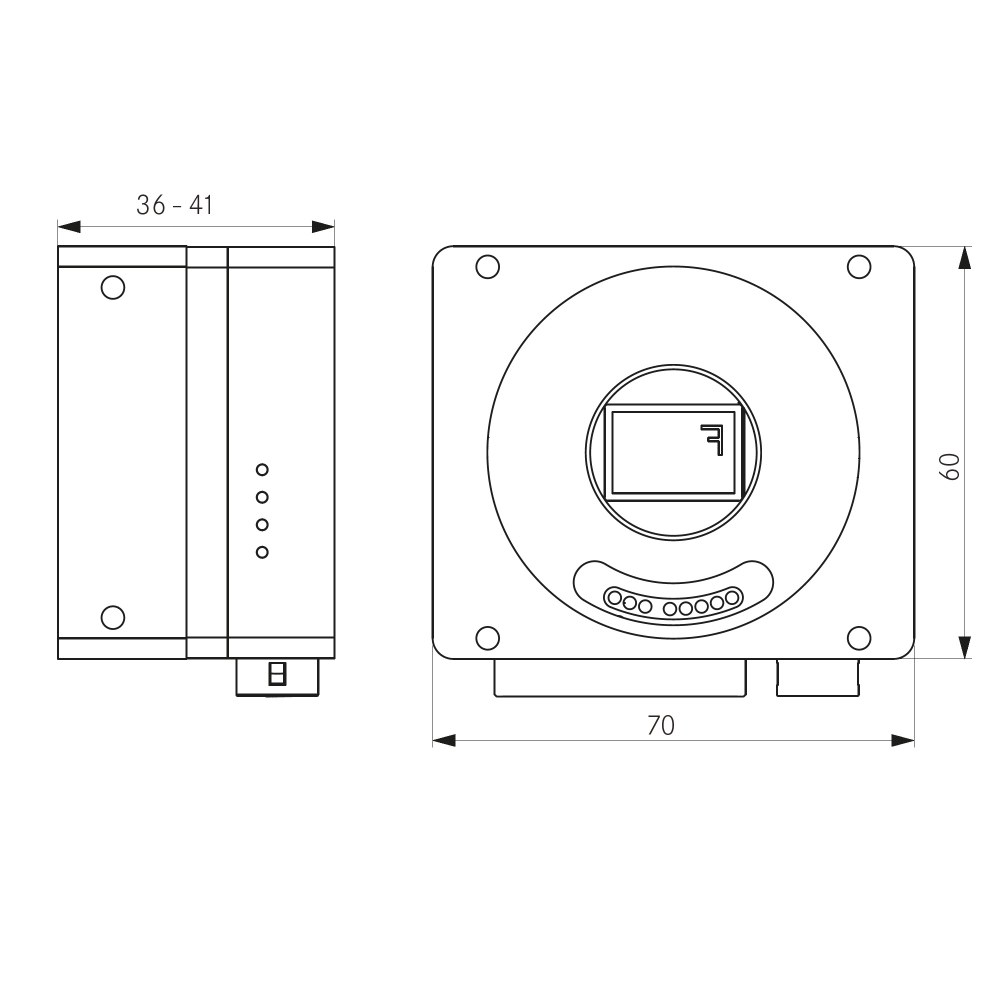

| Physical dimensions (WHD) | 70 x 65.5 x 41 mm | |
| Mass - weight | 268 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
High speed
Projectile, Explosives, Ballistics, Combustion and Missile Launch Tracking, Vehicle Impact, Airbag Deployment, Safety Restraints Testing.
Particle imaging
Flow visualization and flight, bullet, glass dynamics, Digital image correlation (DIC), Fluidics and Particle Image Velocimetry (PIV), Laser illumination, Schlieren.
Broadcasting
Cinematography, Entertainment, Instant replays for sports imaging - baseball, tennis, football, basketball, golf, ping pong and more. Print and Film scanning.
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor 3D mapping and surveying with UAV / UAS drones or autonomous vehicles.
Scientific
Cell sorting, Microfluidics, Neurology, Animal behavior, flight kinematics, walking mechanics,
force vector analysis, Fluorescence microscopy.
Quality inspection
Flat panel display (FPD), Printed circuit board (PCB), Photovoltaics, Metrology, Electroluminescence on Solar panels, Semiconductor wafer scanning.
Machine vision
Industrial and Factory Automation, Production line monitoring, Electronics bonding examination, assemblies defect detection, Gauging.
