New models from the camera family with the fastest 64 Gbit/s interface are released





Munster, January 2018 – Following the release of the initial model with 12 Mpix at 333 Fps, XIMEA is now ready for orders of two additional versions with speeds up to 3675 frames per second.

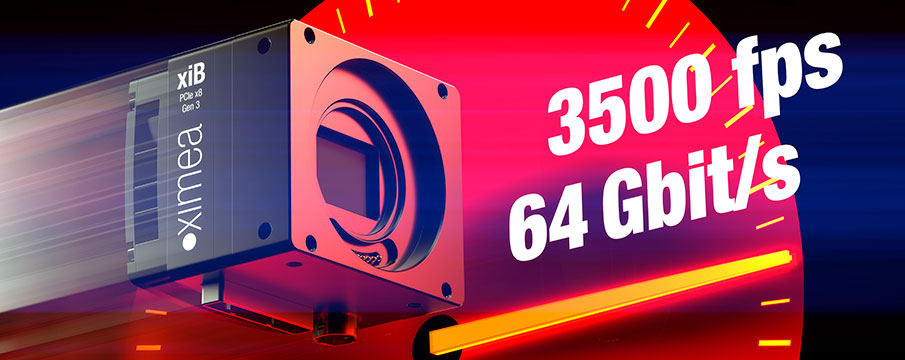

The exceptionally fast PCIe interface allows the xiB-64 camera family to stream data at speeds as high as 64 Gbit/s over distances of up to 300m without the need of expensive frame grabbers or special, complicated software. Resolution range of this camera line starts from 1 Mpix to 16 Mpix and is further enhanced with a Canon lens EF-mount that allows remote control of aperture, focus and image stabilization.



First 4K model called CB120 equipped with CMV12000 sensors from ams CMOSIS was introduced a while ago. With the help of new generation of PCI Express referred to as PCIe 3.0 this 12 Mpix sensor is able to reach the remarkable speed of over 330 Fps at full resolution. The camera’s data and control interface are fully compliant with PCI Express External Cabling Specifications, which allows real data throughput of 7000 MB/s - more than other industrial camera interfaces can compete with.



First of the newly available models called CB013 introduces a special, high-speed sensor from LUXIMA – LUX13HS. These remarkable sensors have especially large 13.7µm pixels and fast data throughput with potential 3675 Fps at a full resolution of 1280 x 864. Both aspects are beneficial for high speed, low exposure time applications.



Another robust, easy to integrate model called CB019 also uses high speed, global shutter CMOS sensors from LUXIMA – LUX19HS. In this case, the camera can potentially deliver more than 2200 frames at HD resolution (1920 x 1080) directly to PC memory. Camera package itself for all these models is remarkably compact with 60 x 70 x 55 mm and 268g.



For synchronization purposes with external equipment and other cameras, the models are equipped with trigger inputs and outputs. Image data is seamlessly delivered and stored right inside the computer memory, becoming immediately available for processing and encoding by CPU and/or GPU, reducing latency. XIMEA SDK/API provides the comfort of choosing from Windows, Linux, Mac OSX and can offer full image processing pipeline on NVIDIA GPU in real-time.



Applications examples include: Vehicle Impact and Airbag Deployment Testing, Projectile or Missile Launch Tracking, Fluid Dynamics and Flow Visualization, Engine Performance Monitoring, Biomechanics field, Animal Locomotion, Sports Broadcasting and more.
