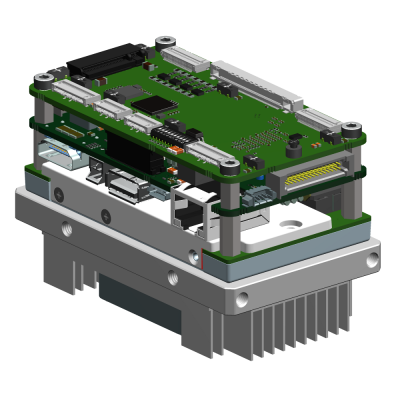

NVIDIA Jetson TX2 module with carrier board

NVIDIA Jetson TX2 module with carrier board
  • NVIDIA Jetson TX2 module with carrier board
  • Combined with TX2 module
  • Ideal for compact synchronization of 4+1 cameras
  • 4x X2G2 flex connectors - 10 Gbits bandwidth each
  • 1x X4G2 flex connectors - 20 Gbits bandwidth each
  • 2x USB3 flex connectors - 5 Gbits bandwidth each
  • Peripherals: Ethernet, USB3 Type A, M.2, microSD, GPIO, HDMI
  • The Host system should be running Ubuntu 18.04 or 20.04
  • Can be combined with optional heatsink and fan
  • For use with cameras from: xiX family
  • Part Number: XEC2-4P-X2G2



Embedded GPU system with option to connect several cameras for:

360 panorama, Augmented or Virtual Reality (AR, VR), Autonomous self-driving vehicles, Street/city mapping, Deep learning tasks, Stereo camera systems, portable medical devices, 3D scanning, Photogrammetry, FACS scanning, Face recognition,  Motion capture, UAV / UAS (drones), Videogrammetry and more.



CONTACT SALES

Last Updated: 28 March 2024, 08:58
