Multi camera setup with 4x USB3 cameras


Embedded Industrial Machine Vision Computer

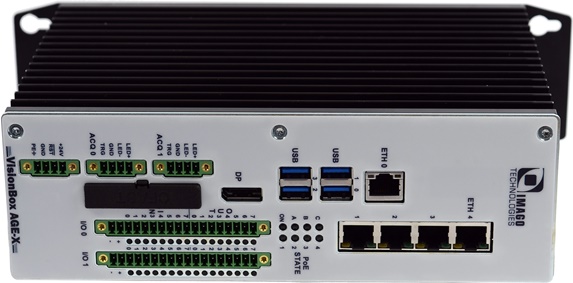

The AGE-X TIGER+ consists of the unique Real-Time Communication Controller and latest Skylake processor.

Key features are:

2 × LED controller and 2 × camera trigger
16/16 digital In/Out with opto-isolators
Computing power: Quad-core Skylake i5
OS MS Windows 10 IoT Enterprise 2016 LTSB 64 bit
Embedded system / fanless design
Long-term availability 2018…2023

Included Vision Interfaces

USB3: 4 × for external peripherals
USB 2.0: 2 × under service hatch for dongles
Camera Trigger 2 ×
LED Controller: 2 × current-controlled
Digital I/O: 16 × In / 16 × Out, opto-isolated, 24V
Ethernet: 5 × 1.000 Mbit/s (4 × GigE Vision, 1 × LAN)
DisplayPort++ 1.2, 60 Hz

Processor

Intel i5-6500 TE
Frequency (turbo mode): 2.3 GHz (3.3 GHz)
Cores / Threads: 4 / 4
DDR RAM: 2 × 4 GB DDR4
Intel Smart Cache: 6 MB
Intel 64
Mass Storage: ≥ 120 GB CFast under service hatch

Mechanical/Electrical

Power Consumption (idle / load): 10W / 40W
Power Supply: 18VDC – 30VDC
Thermal Solution: Heat sink
Temperature Range: +5 ºC … +45 ºC (recommended: +20 ºC … +30 ºC)
Weight: 2.400 kg
Dimensions: 230 mm × 164 mm × 76 mm (W × D × H)
Mounting Support: 4 × M5
Service Flap: access to 2x internal USB 2.0 connector (Dongle / USB stick)
