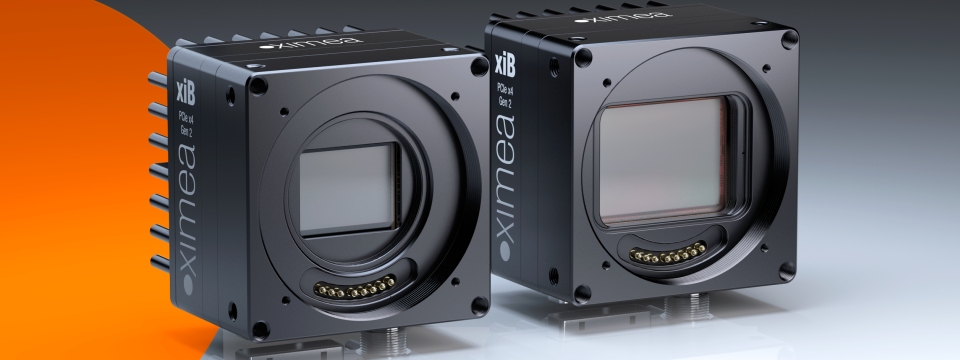

12 Megapixel CMV12000 sensor enhanced by PCI Express interface can reach the speed of 133 or even 333 Fps

High resolution cameras - 20 and 50 Mpix

High resolution cameras - 20 and 50 Mpix

CMOSIS CMV20000 and CMV50000 sensors with 20 Mpix and 50 Mpix can run at speeds of 30 Fps

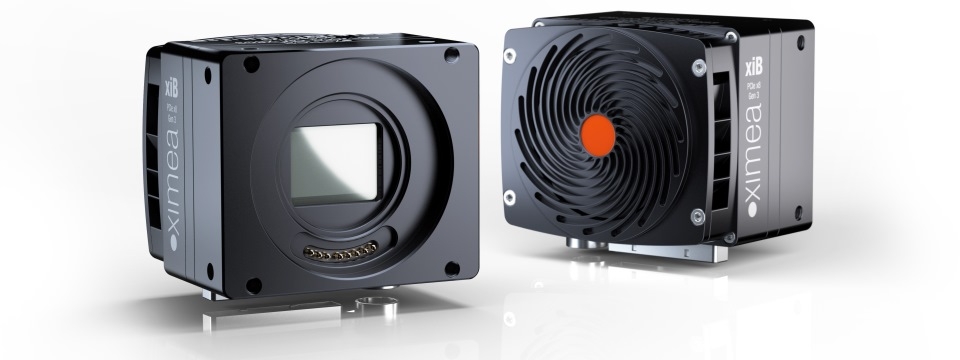

PCIe Gen3 is the fastest camera interface

PCIe Gen3 is the fastest camera interface

With 64 Gbit/s transfer speed it allows 12 Mpix with 333 Fps or 1.1 Mpix with +3500 Fps and more

PCI Express Cameras explained

PCI Express Cameras explained

PCIe Gen2 with 20 Gbits and Gen3 with 64 Gbit/s is an extremely fast interface, take a look what it offers at the Support page

Frontpage Slideshow | Copyright © 2006-2011 JoomlaWorks Ltd.

xiB - PCI Express Cameras with high speed and resolution

What is xiB?

Compact PCIe x4 Gen2 and x8 Gen3 interface CMOS camera family

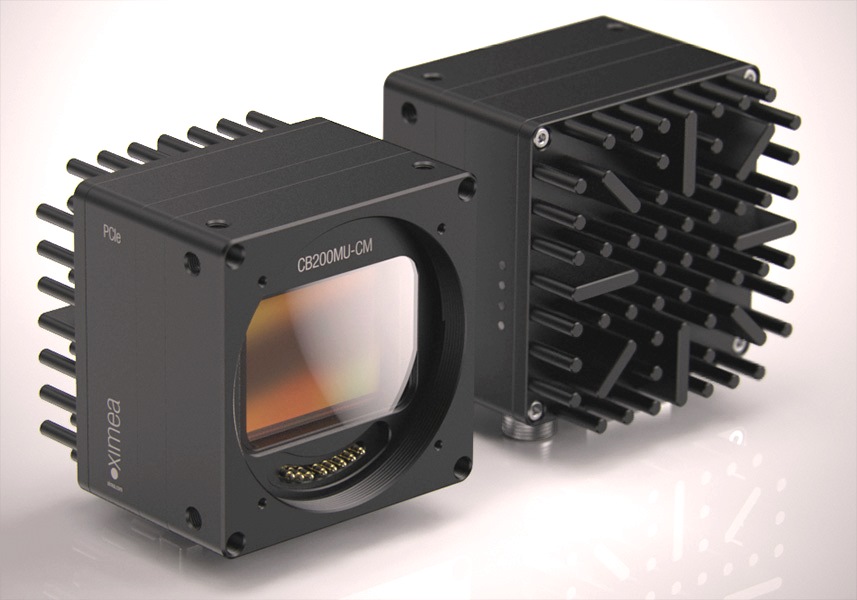

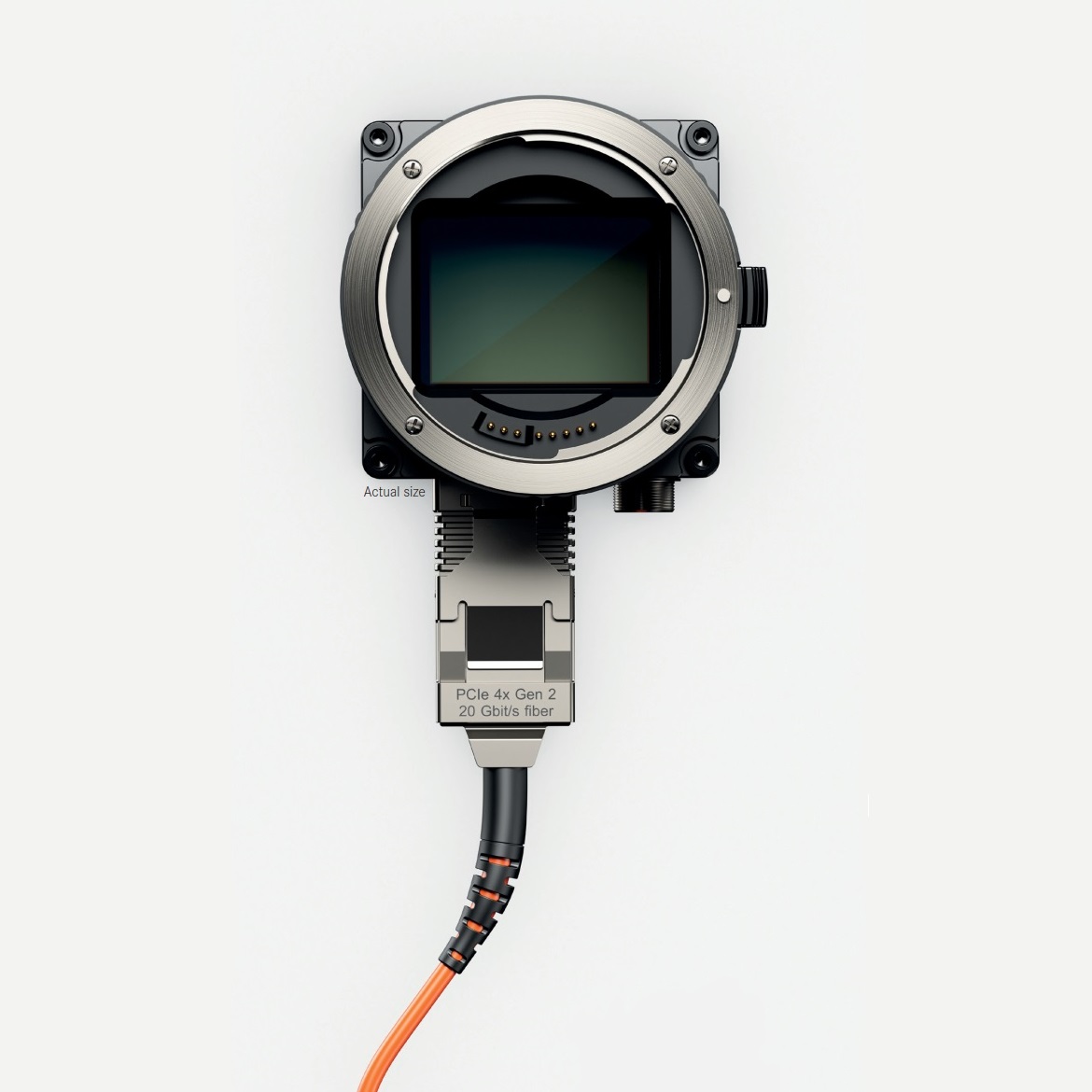

PCIe camera CMOSIS CMV12000 CMV20000





  • Fastest overall - Bandwidth from 20 Gbit/s to staggering 64 Gbit/s, real data throughput up to 7000 MB/s
  • Modern components - High resolution from 12 Mpix to 65 Mpix and 3500 Fps high-speed sensors
  • Versatile mini camera - Subtle 60 x 60 x 36 mm, 160 grams (1)
  • Longest reach - Can work with optical cable at 300m distances
  • Power efficient - Low power consumption of mere 6 Watt (1)
  • Cool - Minimal heat dissipation with additional Heatsink or Fan options
  • Compatible - Support for Windows 7 and 10, Linux, macOS, ARM, NVIDIA Jetson modules
  • Connectivity and Synchronization - 2/2 Isolated GPI/GPO, 4 bi-directional non-isolated GPIO
  • Compliant - Data and control interface complies with PCI Express External Cabling Specifications
  • Lens control - EF-mount Interface allows remote control of aperture, focus and image stabilization
  • Easy deployment - Range of various accessories and No need in frame grabbers
  • Future potential - Highest speed by utilizing the full capability of PCIe x8 Gen3 interface
  • Customizable - Possibility of Board level or Embedded versions and Near Infrared (NIR) sensors

(1) xiB models without lens mount or cooling


This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCIe Zone



xiB Models

xiB Monochrome and Color models:

Model Sensor Resolution Pixel µm ADC bits FWC e- Sensor Diagonal Power Watt DR dB Frames per sec (1)
CB120MG-CM ams CMOSIS CMV12000 4096 x 3072, 12 MP 5.5 8,10,12 13500 28 mm 8 W 60 133, 103, 86
CB120CG-CM ams CMOSIS CMV12000 4096 x 3072, 12 MP 5.5 8,10,12 13500 28 mm 8 W 60 133, 103, 86
CB200MG-CM ams CMOSIS CMV20000 5120 x 3840, 20 MP 6.4 12 15000 41 mm 6 W 66 33
CB200CG-CM ams CMOSIS CMV20000 5120 x 3840, 20 MP 6.4 12 15000 41 mm 6 W 66 33
CB500MG-CM ams CMOSIS CMV50000 7920 x 6004, 48 MP 4.6 12 16000 45 mm 9 W 64 30, 26, 22
CB500CG-CM ams CMOSIS CMV50000 7920 x 6004, 48 MP 4.6 12 16000 45 mm 9 W 64 30, 26, 22

(1) Full resolution at RAW 8 bits, 10 bits and 12 bits;  Server computers with bigger PCIe TLP packet size can increase the throughput by additional 10%.

Common features:

Sensor technology CMOS, Global shutter
Acquisition modes Continuous, software trigger, hardware trigger
Partial image readout ROI (region of interest) / AOI (area of interest), Skipping / Binning (only certain models)
Image data formats 8, 10, 12 bit RAW pixel data (depends on the model)
SDK/API programmable with C++ and C#, Python
Color image processing* Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS (Color management system)
Hot/blemish pixels correction* On camera storage of up to 5000 pixel coordinates, host assisted correction
Auto adjustments* Auto white balance, auto gain, auto exposure, HDR (High Dynamic Range)

Flat field corrections*

 Host assisted pixel level shading and lens corrections.
FPN correction  Fixed pattern noise correction on the side of the camera
Interface PCI Express standard cable connector compliant to PCI Express External Cabling Specifications
General purpose I/O 2x optoisolated input, 2x optoisolated output, 4 non-isolated input-outputs, 4x LED software programmable
Signal conditioning* Programmable debouncing time
Synchronization Hardware trigger input, software trigger, exposure strobe output, busy output
Lens mount Standard EF mount with Active Lens Control – focus, iris, image stabilization
Power requirements 6 Watt, supplied via the power cable (depends on the model)
Dimensions 60 x 60 x 38 mm
Weight 170 grams
Environment Operating 0°C to 50°C on housing, RH 80% noncondensing, -30°C to 60°C storage
Conformity CE, FCC, RoHS, PCI Express External Cabling Specifications compliant
Operating systems Windows 7 SP1 (x86 and x64) and 10, Linux Ubuntu, macOS, ARM, NVIDIA Jetson modules
Minimum host hardware

Intel i5 3.0GHz, +2GB RAM available physical memory, Motherboard with PCIe x4 Gen2 (or PCIe x8 Gen3) necessary for full throughput, compliance down to PCIe x1 Gen1 gives reduced throughput
Software support xiAPI SDK, adapters and drivers for 30 various image processing Libraries
Firmware updates Field firmware update through xiCOP

(*) Feature is available only when the camera is in XIMEA API mode.



This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCIe Zone



xiB-64 Models

xiB-64 Monochrome and Color models:

Model Sensor Resolution Pixel µm ADC bits FWC e- Sensor Diagonal Power Watt DR dB Frames per sec (1)
CB013MG-LX-X8G3 LUX13HSM 1280 x 864, 1.1 MP 13.7 10 20000 21.1 mm 17 W 60 3600+
CB013CG-LX-X8G3 LUX13HSC 1280 x 864, 1.1 MP 13.7 10 20000 21.1 mm 17 W 60 3600+
CB019MG-LX-X8G3 LUX19HSM 1920 x 1080, 2 MP 10 10 15000 22 mm 17 W 60 2200+
CB019CG-LX-X8G3 LUX19HSC 1920 x 1080, 2 MP 10 10 15000 22 mm 17 W 60 2200+
CB120MG-CM-X8G3 ams CMOSIS CMV12000 4096 x 3072, 12 MP 5.5 8, 10, 12 13500 28 mm 17 W 60 330, 300, 130
CB120CG-CM-X8G3 ams CMOSIS CMV12000 4096 x 3072, 12 MP 5.5 8, 10, 12 13500 28 mm 17 W 60 330, 300, 130
CB160MG-LX-X8G3 LUX160M 4704 x 3424, 16 MP 3.9 10 10000 22.6 mm 17 W 60 300+
CB160CG-LX-X8G3 LUX160C 4704 x 3424, 16 MP 3.9 10 10000 22.6 mm 17 W 60 300+
CB262MG-GP-X8G3 Gpixel GMAX0505 5120 x 5120, 26 MP 2.5 10, 12 6500 18.1 mm 14 W 63 150, 40
CB262RG-GP-X8G3 Gpixel GMAX0505 NIR 5120 x 5120, 26 MP 2.5 10, 12 6500 18.1 mm 14 W 63 150, 40
CB262CG-GP-X8G3 Gpixel GMAX0505 5120 x 5120, 26 MP 2.5 10, 12 6500 18.1 mm 14 W 63 150, 40
CB654MG-GP-X8G3 Gpixel GMAX3265 9344 x 7000, 65 MP 3.2 10, 12 9200 37.4 mm 17 W 64 71, 31
CB654CG-GP-X8G3 Gpixel GMAX3265 9344 x 7000, 65 MP 3.2 10, 12 9200 37.4 mm 17 W 64 71, 31

(1) Full resolution at RAW 8 bits, 10 bits and 12 bits;  Server computers with bigger PCIe TLP packet size can increase the throughput by additional 10%.

Common features:

Sensor technology CMOS, Global shutter
Acquisition modes Continuous, software trigger, hardware trigger
Partial image readout ROI (region of interest) / AOI (area of interest), Skipping / Binning (only certain models)
Image data formats 8, 10, 12 bit RAW pixel data (depends on the model)
SDK/API programmable with C++ and C#, Python
Color image processing* Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS
Hot/blemish pixels correction* On camera storage of up to 5000 pixel coordinates, host assisted correction
Auto adjustments* Auto white balance, auto gain, auto exposure

Flat field corrections*

 Host assisted pixel level shading and lens corrections. This feature is being developed and tested
FPN correction  Fixed pattern noise correction on the side of the camera
Interface PCI Express standard cable connector compliant to PCI Express External Cabling Specifications
General purpose I/O 2x optoisolated input, 2x optoisolated output, 4 non-isolated input-outputs, 4x LED software programmable
Signal conditioning* Programmable debouncing time
Synchronization Hardware trigger input, software trigger, exposure strobe output, busy output
Lens mount C-mount or EF mount with Active Lens Control – focus, iris, image stabilization
Power requirements 17 Watt (depends on the model), supplied via power cable
Dimensions 70 x 60 x 55 mm
Weight 290 grams
Environment Operating 0°C to 50°C on housing, RH 80% noncondensing, -30°C to 60°C storage
Conformity CE, FCC, RoHS, PCI Express External Cabling Specifications compliant
Operating systems Windows 7 SP1 (x86 and x64) and 10, Linux Ubuntu, macOS, ARM, NVIDIA Jetson modules
Minimum host hardware

Intel i5 3.0GHz, +2GB RAM available physical memory, Motherboard with PCIe x4 Gen2 (or PCIe x8 Gen3) necessary for full throughput, compliance down to PCIe x1 Gen1 gives reduced throughput
Software support xiAPI SDK, adapters and drivers for 30 various image processing Libraries
Firmware updates Field firmware update through xiCOP

(*) Feature is available only when the camera is in XIMEA API mode.



This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCIe Zone

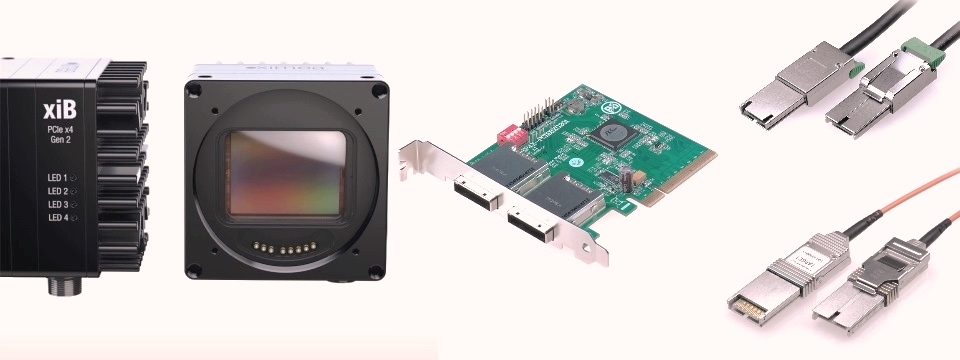

Accessories

xiB and xiB-64 Accessories

Copper cables Availability
CBL-PCI-COP-1M0 1 meter, PCIe Gen.2 x4, copper cable Now
CBL-PCI-COP-2M0 2 meter, PCIe Gen.2 x4, copper cable Now
CBL-PCI-COP-3M0 3 meter, PCIe Gen.2 x4, copper cable Now
CBL-PCI-COP-5M0 5 meter, PCIe Gen.2 x4, copper cable Now
CBL-PCI-COP-7M0 7 meter, PCIe Gen.2 x4, copper cable Now
CBL-PCI-X8G3-COP-3M0 3 meter, PCIe Gen.3 x8, copper cable Now
CBL-PCI-X8G3-COP-5M0 5 meter, PCIe Gen.3 x8, copper cable Now
CBL-PCI-X8G3-COP-7M0 7 meter, PCIe Gen.3 x8, copper cable Now
Fiber cables
CBL-PCI-X4G3-FIB-20M0 20 meter, PCIe Gen.3 x4, fiber optics cable Now
CBL-PCI-X4G3-FIB-50M0 50 meter, PCIe Gen.3 x4, fiber optics cable Now
XC-X4G3-MTP-X4G3-IPASS PCIe Gen.3 x4 iPass to MTP converter with opposed MTP connector Now
ADPT-MX-X4G3-FF-X4G3-MTP
Firefly to MTP converter for MX-X4G3-FF camera
 Now
CBL-MTP-X4G3-FF-xxM0 5 to 100m PCIe Gen.3 x4, fiber optics MTP cable Now
XC-X8G3-MTP-X8G3-IPASS PCIe Gen.3 x8 iPass to MTP converter with opposed MTP connector Now
ADPT-MX-X8G3-FF-X8G3-MTP
Firefly to MTP converter for MX-X8G3-FF camera
 Now
CBL-MTP-X8G3-FF-xxM0 5 to 100m PCIe Gen.3 x8, fiber optics MTP cable Now
MECH-OPA-S-ALIGNED optical MTP patch cable adapter - Single port, aligned This e-mail address is being protected from spambots. You need JavaScript enabled to view it
XC-X4G3-SFF-X4G3-IPASS
PCIe Gen.3 x4 iPass to SFF converter with SFF connector
 This e-mail address is being protected from spambots. You need JavaScript enabled to view it
PCIe Gen.3 x8 iPass to SFF converter with SFF connector
 Now
Firefly camera to SFF adapter for MX-X4G3-FF camera
 Now
Firefly camera to SFF adapterfor MX-X8G3-FF camera
 Now
CBL-SFF-X4G3-xxM0
10 to 100m optical patch / trunk SFF cable, female-female, 12 fibers
 This e-mail address is being protected from spambots. You need JavaScript enabled to view it
Copper Host adapters
PEX4-G3-COP PCIe Gen.3 x4 extender SINGLE host adapter for copper cables Now
Fiber Host adapters
PEX4-G2-FIB PCIe Gen.2 x4 extender host adapter for fiber optics cables Now
PEX4-G3-FIB-X2 PCIe Gen.2 x4 extender host adapter for fiber optics cables, 2 ports Now
HA-1P-X4G3-MTP-X8G3 XIMEA 1-Port PCIe Gen.3 x4 host adapter for fiber optics - MTP connector Now
HA-2P-X4G3-MTP-X8G3 XIMEA 2-Port PCIe Gen.3 x4 host adapter for fiber optics - MTP connector Now
HA-1P-X8G3-MTP-X8G3 1-Port PCIe Gen.3 x8 host adapter for fiber cables - opposed MTP connector Now
2-Port PCIe Gen.3 x4 host adapter for fiber optics - SFF connector
 Now
PEX8-G3-X1-DOL PCIe Gen.3 x8 extender host adapter for copper and fiber optics cables Now
PEX8-G3-X2-OSS PCIe Gen.3 x8 extender host adapter for copper and fiber optics cables, 2 ports Now
Synchronization cables
CBL-CB-PWR-SYNC-3M0 3.0 meter xiB series I/O Sync/Trigger and Power cable Now
CBL-CB-PWR-SYNC-5M0 5.0 meter xiB series I/O Sync/Trigger and Power cable Now
CBL-MT-PWR-SYNC-3M0 3.0 meter xiT and xiB-64 I/O Sync/Trigger and power cable Now
Tripod brackets and rest
MECH-60MM-BRACKET-T xiB and xiB-64 series tripod mounting bracket Now
MECH-60MM-HEATSINK Heatsink plate for xiB series Now
MECH-60MM-EF-ADAPTER-KIT Canon EF-mount with screws and protection cap for xiB and xiT series Now
LA-E-MNT-60MM-KIT
Sony E-Mount Lens Adapter
 Now
C-mount lens adapter C-mount lens adapter for xiB and xiB-64 cameras - various filter options Now
Power supply Universal power delivery accessories Now
CB-X8G3-FAN-COOLER-KIT Fan / Air cooling module for xiB-64 series - supplied with camera Now
CB-X8G3-WAT-COOLER-KIT Water / Liquid cooling module for xiB-64 series - no vibration option Now
XCX-2P-X8G3 High performance Embedded Computer based on ComXPress Mainboard Now





This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCIe Zone



Software

PCI Express supported operating systems:

Windows Linux Mac OSX ARM camera



Download software at PCIe Zone

Custom Image Processing SDK for NVIDIA GPUs from Fastvideo company:

PCI Express camera high speed resolution CMV12000 CMV20000 compression

Fastvideo

Newest benchmarks









All logos and trademarks are the property of the respective trademark owners.

All other rights are reserved.

Machine Vision Libraries MVTec Halcon

Download Vision Libraries support files

API Manual



Documents



PDF Flyers and documentation

CMOSIS CMV12000 CMV20000 CMV50000 PCI Express camera

xiB Brochure

CMOSIS CMV12000 Luxima high speed fast PCIe Gen3 64 Gbits

xiB-64 Brochure

PCI Express PCIe camera fast high speed machine vision

Manual

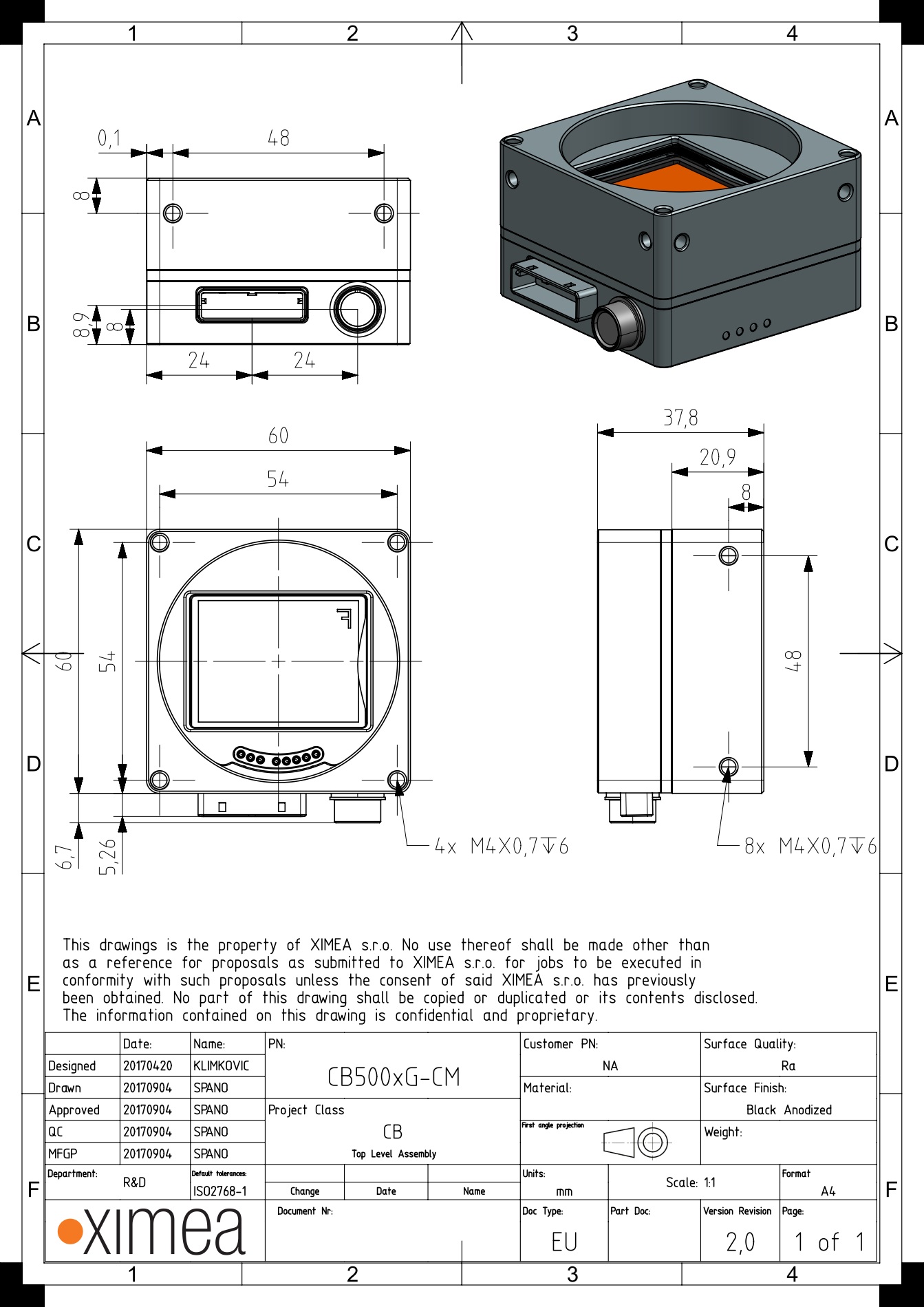

High speed fast resolution industrial cameras CMOS 3D step drawing mechanical

3D step files

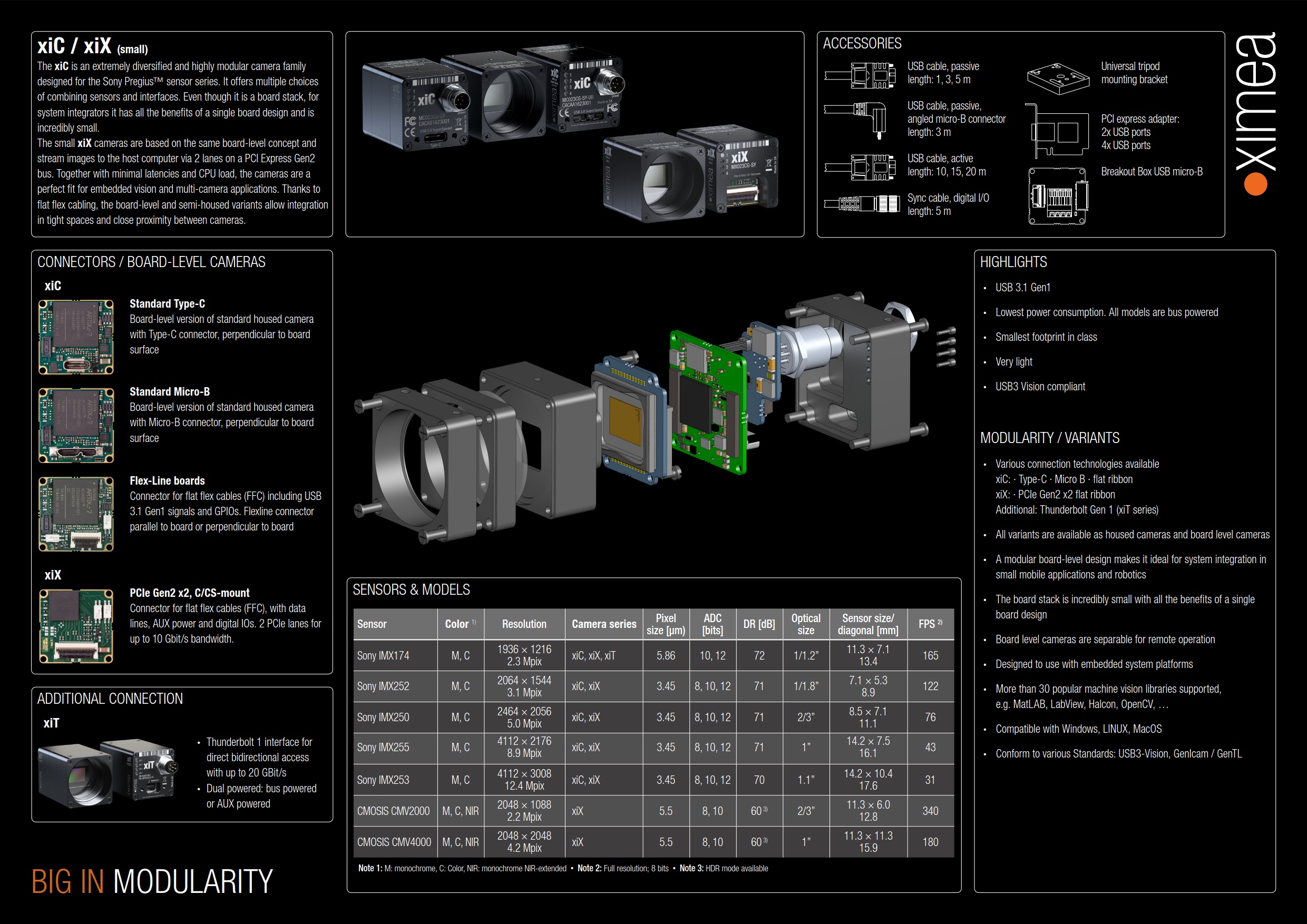

Infographics for Embedded camera versions

CMOSIS Sony CMOS IMX CMV Flat Flex camera USB3 PCIe USB 3.0 USB 3.1

xiX Brochure

CMOSIS Sony CMOS IMX CMV Flat Flex camera USB3 PCIe USB 3.0 USB 3.1

xSwitch infographics

CMOSIS Sony CMOS IMX CMV Flat Flex camera USB3 PCIe USB 3.0 USB 3.1

xiX infographics



This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCIe Zone



Applications

Advantages for High speed and High resolution Applications

  • Performance - up to 17x times faster than USB 3.0, 7x than 10GigE and even faster than Camera Link HS or CoaXPress
  • Robustness - durable full metal jacket, no wobbly cheap sheet covers
  • Precision - high resolution (up to 65 Mpix) Global shutter sensors offer quality without smear
  • Distance - for applications that require detached camera head across 300m
  • Latency - minimalistic glass to glass times and low CPU load
  • Modular - adjustable design allows customization for special needs and mounting holes on all available sides of the camera for the best possible alignment of the sensor
  • Compactness - periscopic structure simplifies multi-camera arrangements for 360 panorama
  • Standard - PCIe over Cable interface provides a variety of standard PCIe cables and adapters
  • DMA - direct memory access and flex cables make it ideal for Embedded vision systems

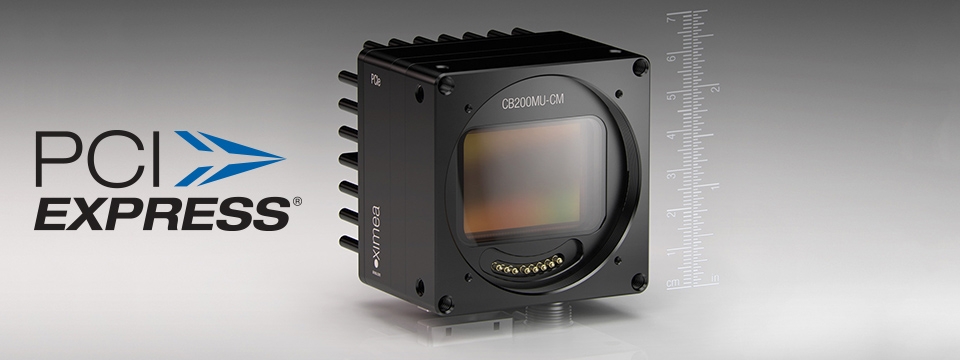

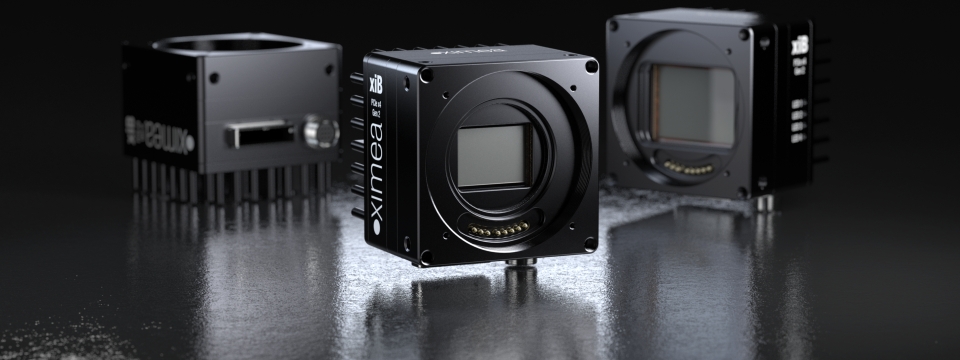

 PCI Express camera CMV12000 CMV20000 CMOSIS

PCI Express Camera ideal for these Industries and Applications

  • Flat panel display (FPD) inspection
  • Semiconductor wafer scanning, Optical Image Stabilizer (OIS)
  • Life science - Pharmaceutical, Medical devices
  • Printed circuit board (PCB) examination
  • Industrial Automation and Machine Vision
  • Production line monitoring
  • 360 Panorama
  • Robotic Welding, Gauging
  • Photogrammetry, Surveying
  • VR and AR - Virtual and Augmented reality
  • Solar panel inspection
  • 3D Mapping
  • High definition Motion capture / tracking
  • Metrology
  • Defect detection, Print and Film scanning
  • Autonomous Vehicles
  • GIS (Geographical Information Systems)
  • Automotive and Robotics
  • Cinematography and Entertainment, Instant replays
  • Patient diagnostics, Body scanner
  • Persistent stadium and border high-end security
  • Sports imaging and broadcast
  • Electronics measurement and assemblies
  • Outdoor imaging - Wide area motion imaging and surveillance
  • Aerial or city mapping (UAV/UAS/drones)



   and others



This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCIe Zone



How to order

Want to know more about our high speed, high-resolution PCI Express cameras or how to buy them?



pci express high fast speed camera industrial.jpg







Visit our PCI Express Support page



This e-mail address is being protected from spambots. You need JavaScript enabled to view it

This e-mail address is being protected from spambots. You need JavaScript enabled to view it

This e-mail address is being protected from spambots. You need JavaScript enabled to view it





This e-mail address is being protected from spambots. You need JavaScript enabled to view it

This e-mail address is being protected from spambots. You need JavaScript enabled to view it

(for price / procurement)







Follow XIMEA on




YouTube XIMEA              facebook XIMEA





Instagram XIMEA              twitter XIMEA





                   linkedin XIMEA



Build your Embedded application

Check our concept for Multi-camera aggregation



Embedded Vision system camera USB3 fast small multiple



Contact us about your Embedded Vision needs!

Check out our
