News Products news Full HD network camera supports multistream H.264 and MJPEG

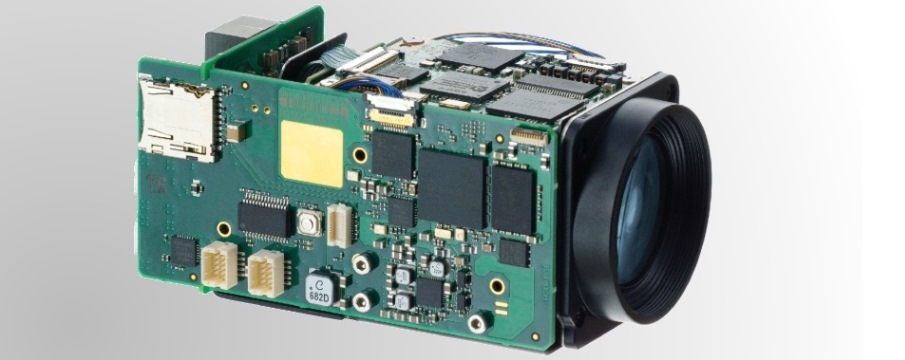

Full HD network camera Sony FCB

H.264 and MJPEG network camera solution with Sony FCB-EH6300, full HD 1080p, 30 fps



PRODUCT IS DISCONTINUED - check with This e-mail address is being protected from spambots. You need JavaScript enabled to view it for options.



MUNSTER, GERMANY, February 18, 2012 – Machine vision and imaging innovator XIMEA has developed NetcamHD - the ultimate solution for full HD IP network cameras.

NetcamHD offers:

High quality H.264 and MJPEG (Motion JPEG) multistream compression.

Full control of Sony FCB camera via VISCA protocol.

Power over Ethernet (PoE) or auxiliary input.

Pan/tilt/zoom (PTZ) control ports.

HTTP -compliant application programming interface (API) for third-party imaging and security software libraries.

Configuration over HTTP browser and API, and lot more.



Leveraging the extraordinary imaging properties of XIMEA’s real-time image encoding and Sony’s FCB camera cores, the NetcamHD is ideally suited for high-end security, medical, surveillance, and remote monitoring applications.



NetcamHD is available now from XIMEA upon request about specific projects.



NetcamHD Performance

NetcamHD solution supports the following Sony FCB block cameras:



FCB model Image sensor HD format Optical Zoom Angle of view Lens Lens focal Minimum illumination Shutter Comments

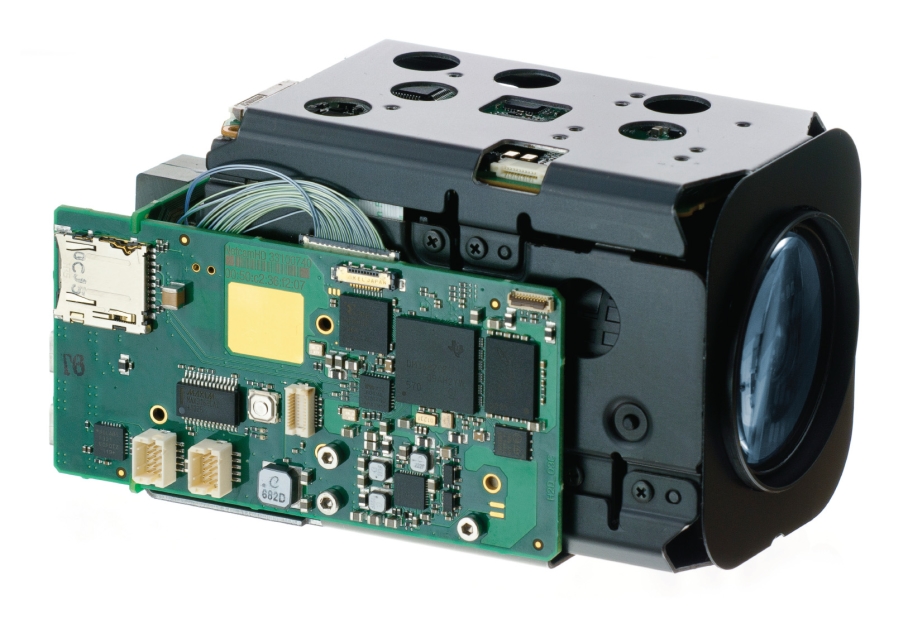

FCB-EH6300 1/2.8" Exmor 1080p/30 20X 55.4° F1.6 to F3.5 f=4.7 to 94.0 mm 0.095 lx 1/1 to 1/10.000s

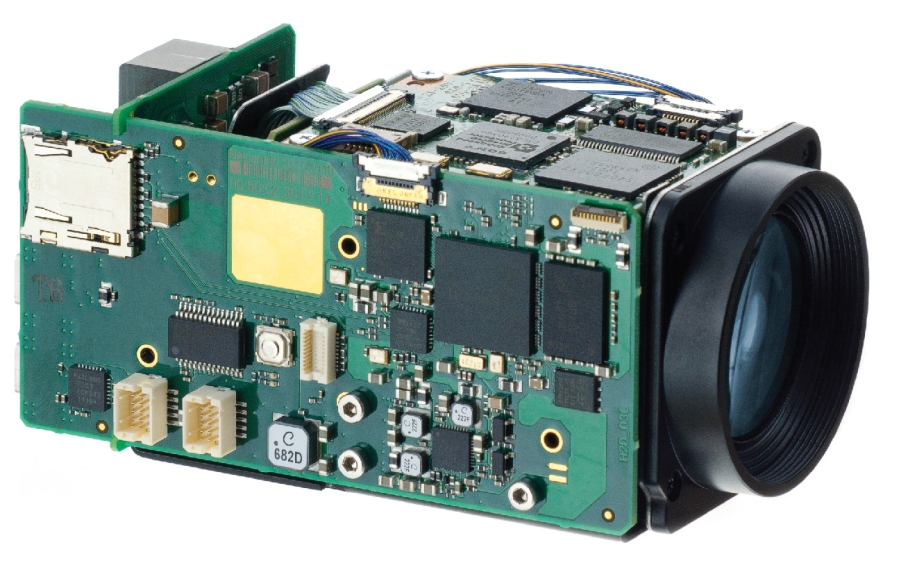

FCB-H11 1/3" CMOS 1080i/50 10X 50° F1.6 to F2.1 f=5.1 to 51.0 mm 1 lx 1/2 to 1/10.000s
FCB-EH3400 1/4" Exmor 720p/30 28X 55.9° F1.35 to F3.7 f=3.5 to 98.0 mm 0.03 lx 1/1 to 1/10.000s
FCB-EH3300 1/4" Exmor 720p/30 20X 55.9° F1.35 to F3.4 f=3.5 to 70.0 mm 0.03 lx 1/1 to 1/10.000s
FCB-EH3150 1/4" Exmor 720p/30 12X 53.4° F1.6 to F2.5 f=3.7 to 44.4 mm 0.06 lx 1/1 to 1/10.000s

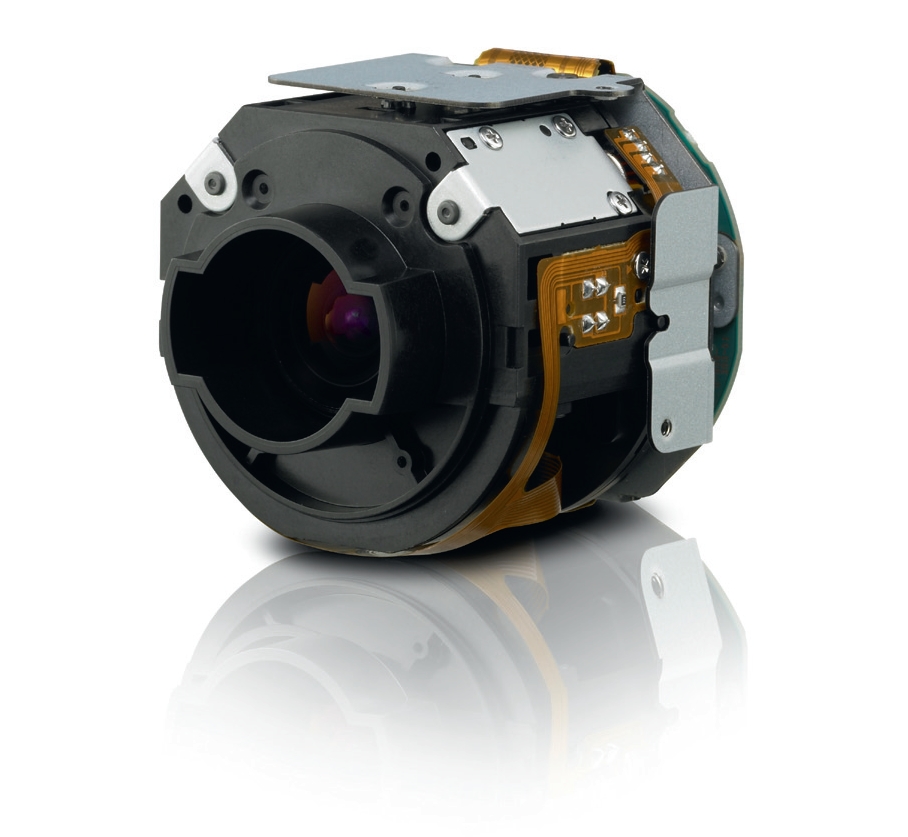

FCB-SE600 1/2.8" Exmor 1080p/30 3X 90° F1.2 to F2.1 f=3.0 to 9.0 mm 0.03 lx 1/1 to 1/10.000s (1)



Compatibility

Utilizing any major Web browser, users can control all camera core settings, set image encoding parameters, and preview H.264 and MJPEG images in real time.

XIMEA is a member of ONVIF global IP-based security standard forum, ensuring NetcamHD being ONVIF compliant and compatible with all ONVIF-certified products.

NetcamHD supports and seamlessly works with a range video recording software programs.

Range of NVR software packages includes the ones that support ONVIF protocol.



Accessories

Item Description
CBL-FCB-A FCB cable for EH6300



Support

NetcamHD - full HD network camera solution, as well as all other XIMEA cameras, are supported with groundbreaking LiveSupport technology.

Thorough documentation and description of NetcamHD.



Inspired? What next?

This e-mail address is being protected from spambots. You need JavaScript enabled to view it



(1) Under testing.



PRODUCT IS DISCONTINUED - check with This e-mail address is being protected from spambots. You need JavaScript enabled to view it for options.
