Discontinued

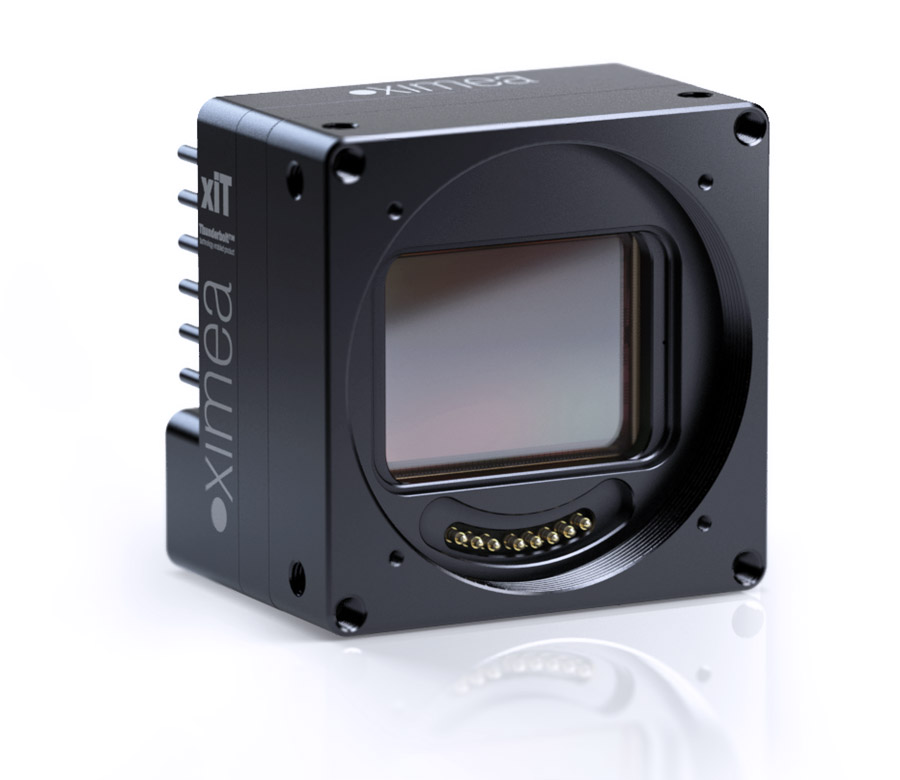

MT200MG-CM
Specifications
Product statusEnd of Life
Sensor vendorCMOSIS
Sensor modelCMV20000
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate32.5 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
|
Sensor properties
|
||
| Resolution | 19.6 MPix | |
| Sensor resolution | 5120 x 3840 | |
| Sensor vendor | CMOSIS | |
| Sensor model | CMV20000 | |
| Sensor type | Monochrome | |
| Sensor technology | CMOS | |
| Sensor size | 35mm Full Frame | |
| Sensor active area | 32 x 24 mm | |
| Sensor diagonal | 41 mm | |
| Pixel size | 6.4 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 32.5 FPS | |
| Bits | 12 bits | |
| Interface | Thunderbolt™ 2 | |
| Data interface speed | 20 Gbit/s | |
| Data connector type | Thunderbolt | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 300 µs | |
| Exposure maximum | 3 s | |
| Power consumption | 9 Watt | |
| Heat dissipation | Natural convection, Optional Heatsink | |
| Sensor cooling | No | |
| Special features | HDR | |
|
EMVA 1288 results
|
||
| Dynamic range | 66 dB | |
| Full well Capacity | 15000 e- | |
| Readout noise | 8 e- | |
| Signal to noise ratio | 41.7 dB | |
| Peak QE | 61% | |
| Gain analog max | 63 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | EF-mount option | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 60 x 60 x 33 mm | |
| Mass - weight | 156 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
