Discontinued

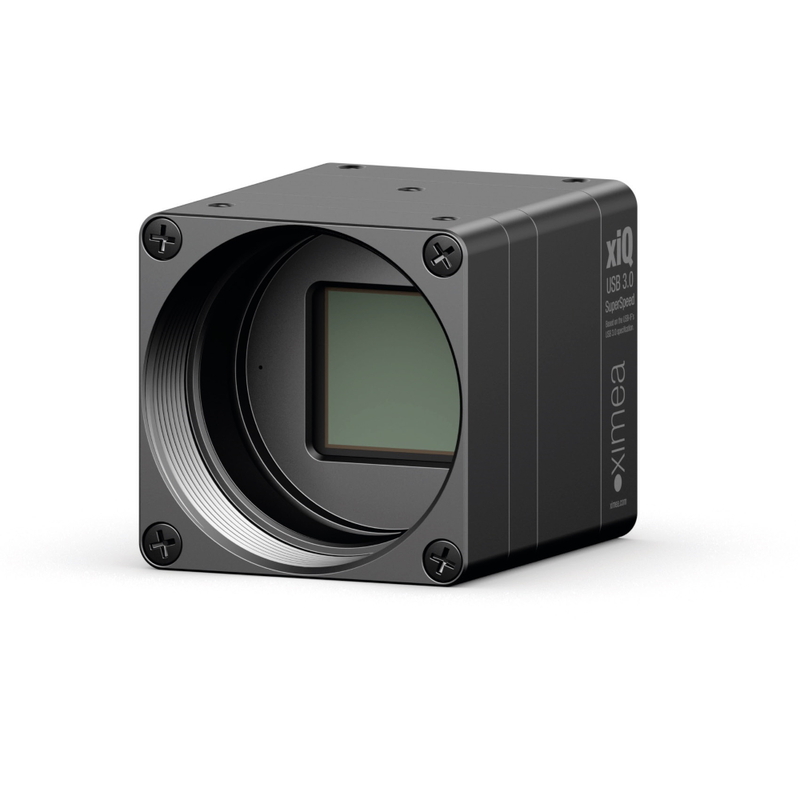

MQ020CG-E2
Specifications
Product statusEnd of Life
Sensor vendore2v
Sensor modelEV76C570
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate0 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
|
Sensor properties
|
||
| Resolution | 1.9 MPix | |
| Sensor resolution | 1600 x 1200 | |
| Sensor vendor | e2v | |
| Sensor model | EV76C570 | |
| Sensor type | Color | |
| Sensor technology | CMOS | |
| Sensor size | 1/1.8" | |
| Sensor active area | 7.2 x 5.4 mm | |
| Sensor diagonal | 9 mm | |
| Pixel size | 4.5 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 0 FPS | |
| Bits | 10 bits | |
| On-chip downsampling | 1x1, 2x2 | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |
| Data connector type | USB3 Micro-B | |
| Exposure minimum | 1 µs | |
| Exposure maximum | 0.9 s | |
| Power consumption | 1.3 Watt | |
| Heat dissipation | Natural convection | |
| Sensor cooling | No | |
| Special features | Single board | |
|
EMVA 1288 results
|
||
| Dynamic range | 60 dB | |
| Full well Capacity | 12000 e- | |
| Readout noise | 7 e- | |
| Signal to noise ratio | 40 dB | |
| Peak QE red | 42% 610nm | |
| Peak QE green | 47% 540nm | |
| Peak QE blue | 47% 450nm | |
| Gain analog max | 15.5 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | C-mount | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 26.4 x 26.4 x 26.2 mm | |
| Mass - weight | 26.9 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |

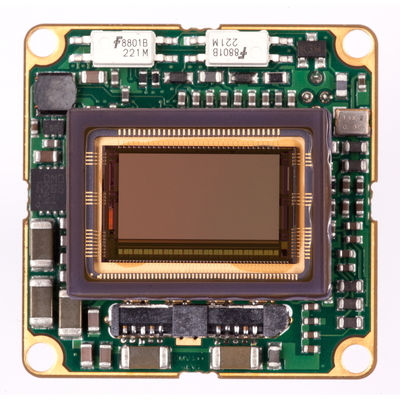

Variants
