XIMEA - USB 3.0 Camera with CCD

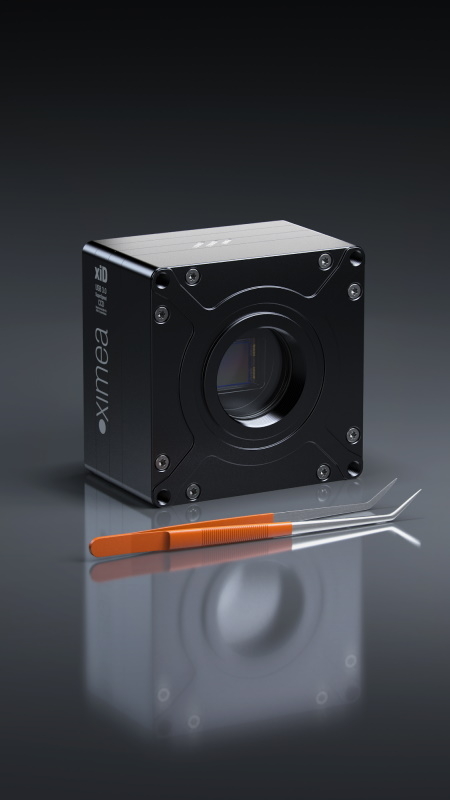

xiD_tweezers_CCD-Sony-scientific-long-exposure-cameras-USB3-sensitive

Fastest Sony CCD cameras
Resolutions from 2.8 Mpix to 12 Mpix
Long exposure times
Passive cooling elements

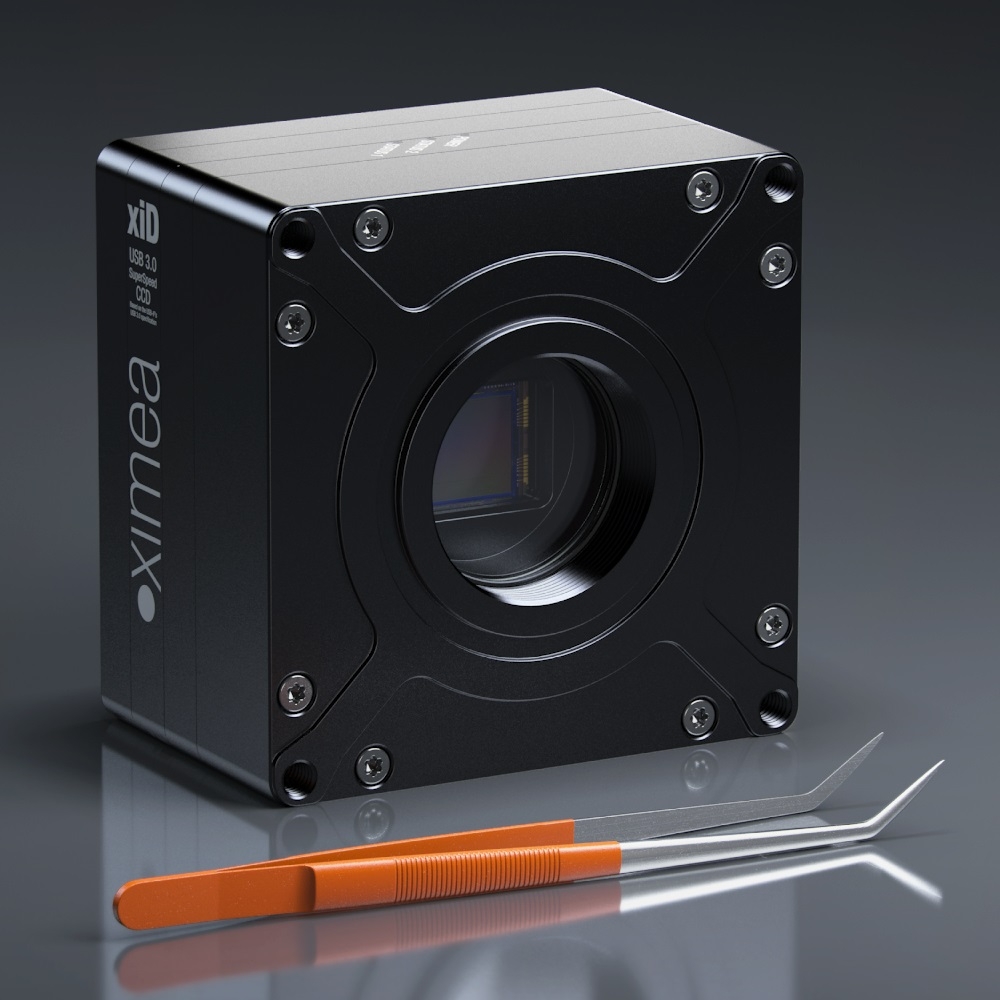

xiD-vector-CCD-Sony-scientific-grade-fast-USB3-cameras-readout

High sensitivity with "EXview HAD CCD II"
Full frame rate with 4 Tap readout
Low power consumption - USB powered
Minimum heat dissipation

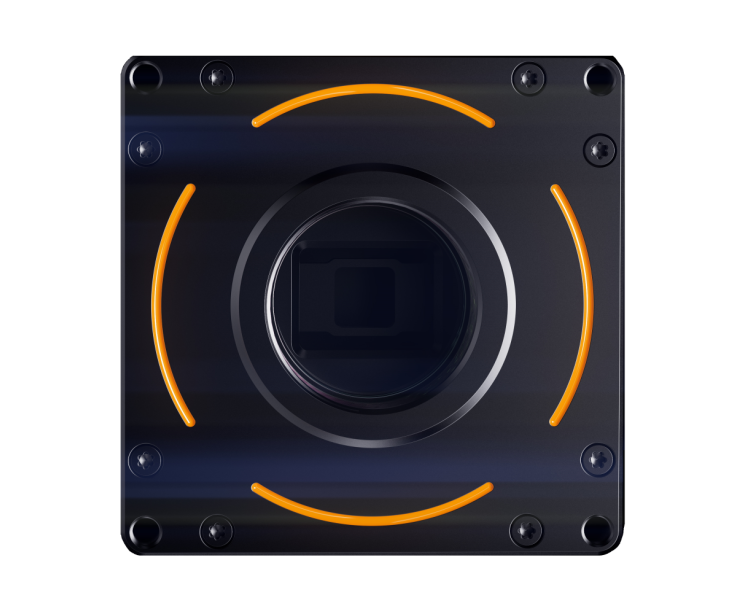

xiD_vector_orange_CCD_Sony_camera_scientific

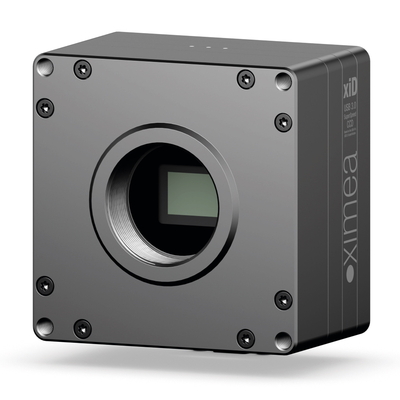

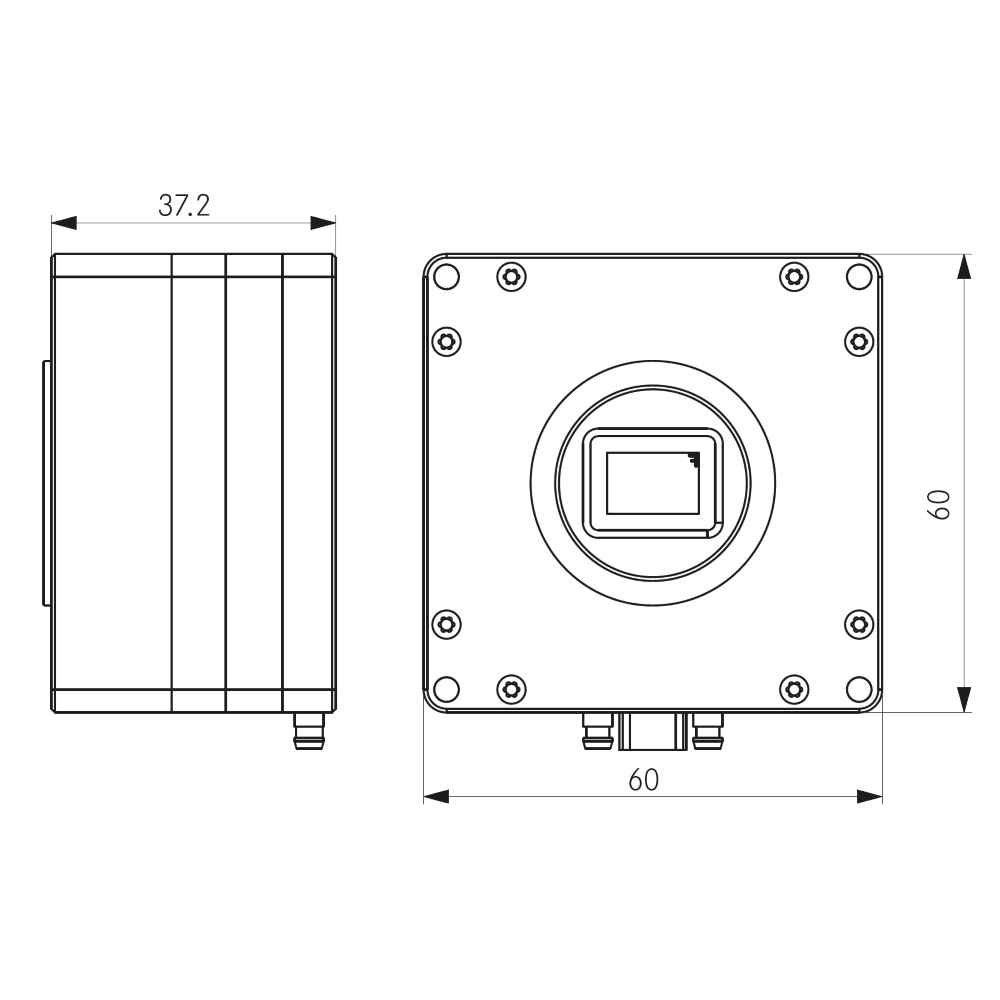

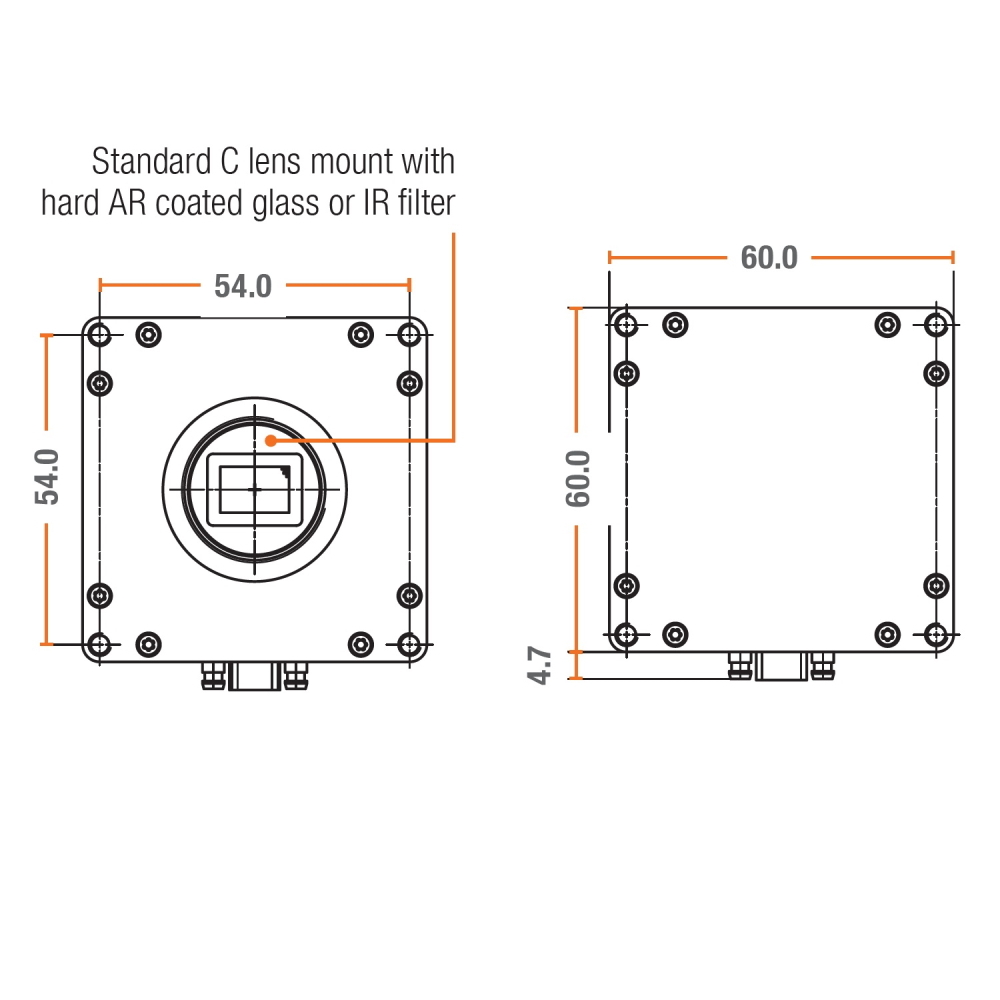

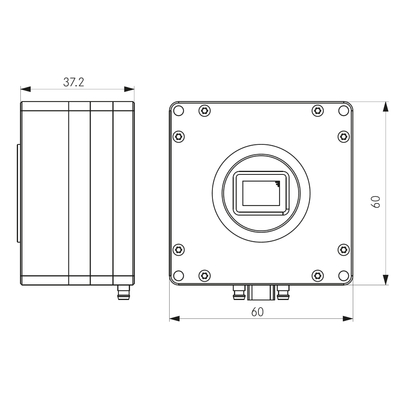

Compact housing with 60x60x37 mm
High quality AR coated filters
Infrared extended Quantum efficiency
Exposure period up to 1500 seconds

Highlights

Highlights Models and sensors Keyfacts Applications Links and downloads Contact

What is xiD? Scientific grade Sony CCD based cameras

Scientific grade Sony CCD sensors delivering from 2.8 to 12 Mpix
High sensitivity "EXview HAD CCD II" pixel technology
Fastest - highest camera speeds using full 4 TAP readout potential

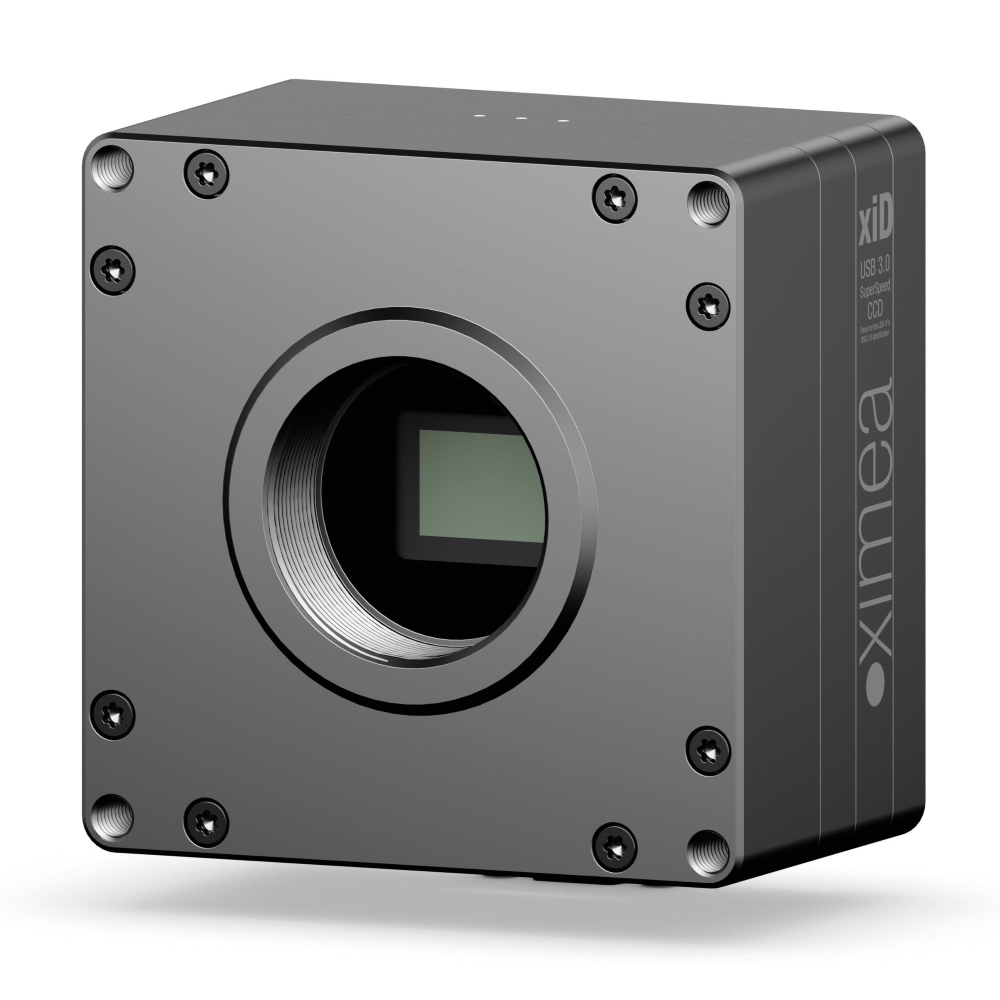

Versatile mini camera - subtle 60 x 60 x 37 mm, 320 grams
Low power consumption with 3 Watt, bus powered by USB3 cable
Cool - minimal heat dissipation with passive Cooling elements
Industry standard - compliant with USB3 SuperSpeed specification
Support for Windows 7 and 10, macOS, Linux, ARM and 30 Libraries
Synchronization through opto-isolated input and output, 3 status LEDs
Software - GenICam / GenTL and optimized SDK for Image Processing
High grade class of sensors combined with specially selected IR filters
Improved light efficiency for NIR spectrum
Long Exposure times - Up to 1500 seconds depending on the model

CONTACT SALES

Models of Sony CCD cameras with USB3

Model	Sensor model	Sensor type	Resolution	Sensor resolution	Pixel size	Bits	Dynamic range	Frame rate
MD028CU-SY	ICX674	Color	2.8 MPix	1936 x 1456	4.54 µm	14 bits	68.1 dB	56.9 FPS
MD028MU-SY	ICX674	Monochrome	2.8 MPix	1936 x 1456	4.54 µm	14 bits	68.1 dB	56.9 FPS
MD061CU-SY	ICX694	Color	6 MPix	2752 x 2202	4.54 µm	14 bits	67.4 dB	28.4 FPS
MD061MU-SY	ICX694	Monochrome	6 MPix	2752 x 2202	4.54 µm	14 bits	67.4 dB	28.4 FPS
MD091CU-SY	ICX814	Color	9.1 MPix	3384 x 2708	3.69 µm	14 bits	64.5 dB	19.5 FPS
MD091MU-SY	ICX814	Monochrome	9.1 MPix	3384 x 2708	3.69 µm	14 bits	64.5 dB	19.5 FPS
MD120CU-SY	ICX834	Color	12 MPix	4244 x 2832	3.1 µm	14 bits	61.7 dB	15.3 FPS
MD120MU-SY	ICX834	Monochrome	12 MPix	4244 x 2832	3.1 µm	14 bits	61.7 dB	15.3 FPS

(1) Maximum frame rates measured at 52 MHz, 4 taps, RAW 14 bits; +20% in overclocked mode, 12bit packed
(2) Dynamic range value is measured at 26 MHz readout frequency

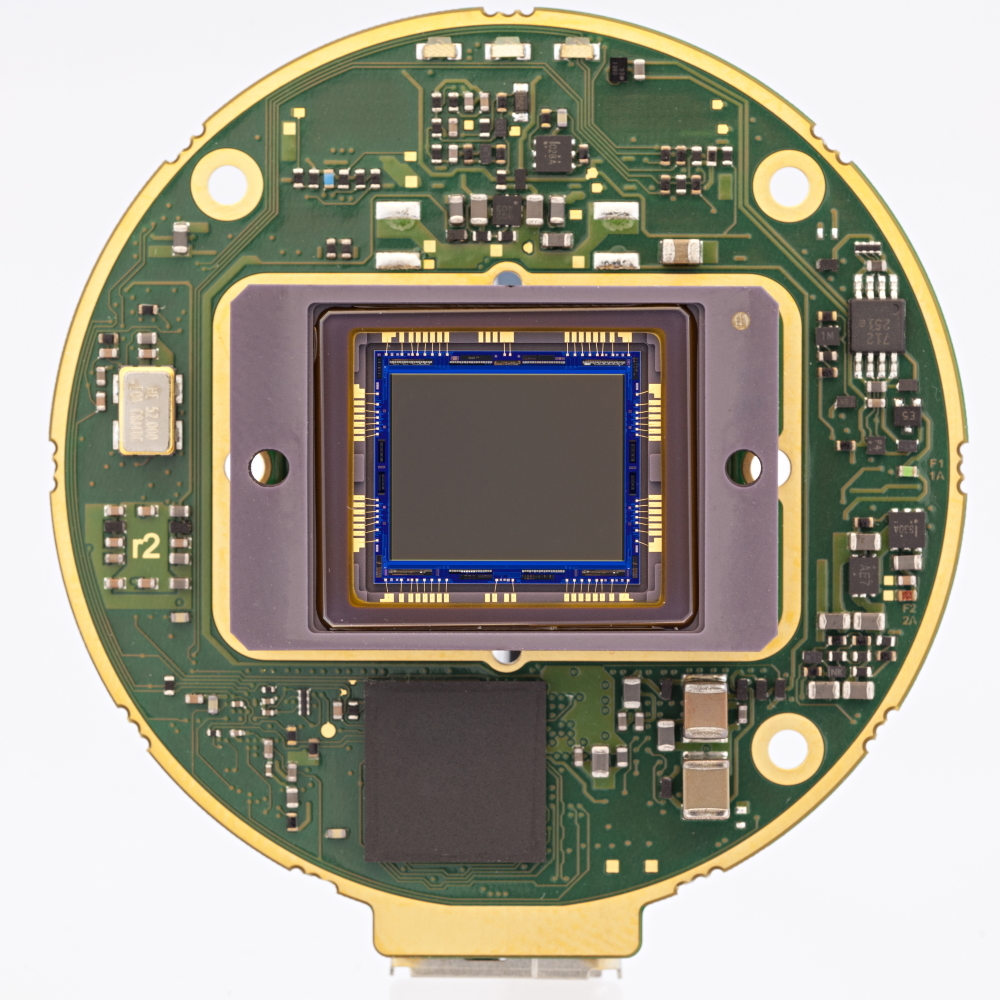

(3) All models are also adjustable for Board level version - special conditions may apply
(4) For Cooled models check the prepared xiJ line

CONTACT SALES

Keyfacts

xiD Advantages for Scientific and Machine Vision Applications

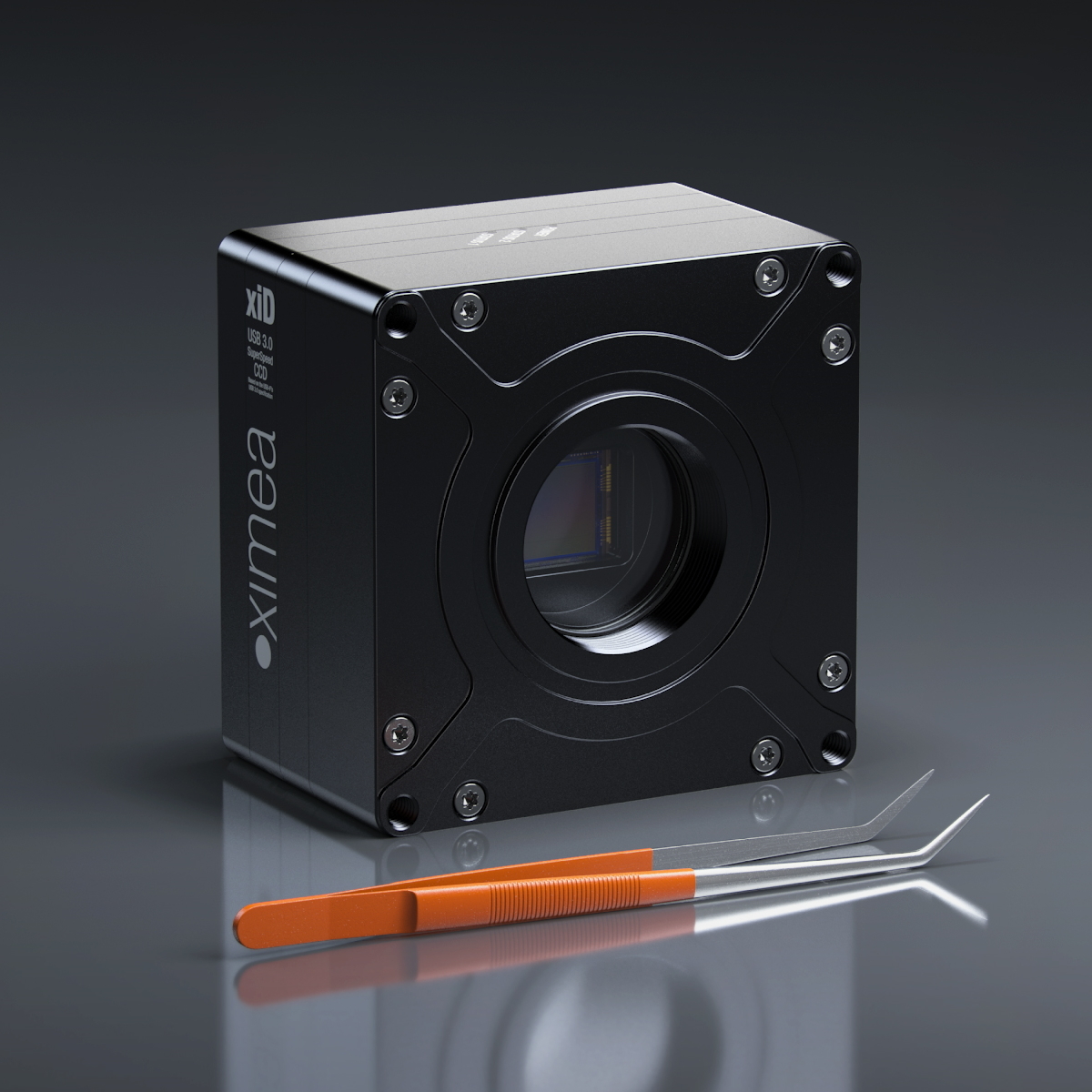

xiD-matrix-tweezers-scientific-grade-CCD-cameras-compact-full-readout

PRECISE

Sony sensors with EXview HAD CCD II deliver high resolution images

FAST

Full potential of USB3 - 4x times faster than GigE, 5x than Firewire and 10x USB 2.0

PERFORMANCE

Utilization of full speed potential through 4tap (QuadTap) readout mode

CRYSTAL CLEAR

Low readout noise, high Dynamic range 14 bits/pixel images in all modes

SENSITIVE

Improved light efficiency enhanced in the near-infrared quantum spectrum

ROBUST

Sturdy full metal jacket enclosure, no sheet metal covers

COOL

Passive cooling of CCD sensors enables extra long exposure times

ADJUSTABLE

Binning and ROI modes, external triggering and flash light synchronization

GENUINE

Pure scientific grade USB3 camera, no power cables or frame grabbers

Applications

USB3 CCD camera utilization Fields and Applications

Medical imaging

Pharmaceutics and Healthcare, Dentistry, Dermatology, Ophthalmology and Retinal imaging, Histology, Pathology, Biomedicine, Intercellular Dynamics.

Life and material science

Astronomy and Astrography, Biometrics, Light Microscopy (IR-DIC), Low light, Laser beam profiling, Holography, Laser profiling, Cell biology, Fluorescence.

Aerial mapping

Photogrammetry, Videogrammetry - city street or outdoor mapping and surveying with UAV / UAS and other types of drones or vehicles.

Machine vision

Industrial Automation, Robotic Welding, Print and Film scanning, Gauging, Metrology, Sorting, Electronics assemblies bonding scanning.

Traffic

Intelligent Transportations Systems (ITS), Open road tolling and Traffic monitoring ANPR / ALPR, Railway and Truck applications.

Quality inspection

Flat panel display (FPD), Printed circuit board (PCB), Semiconductor wafer, Optical character recognition and verification (OCR / OCV), Photovoltaics.
