Highlights

What is xiMU?

Engineered for the smallest possible volume and weight, made with an advanced high-density manufacturing and assembly process. The xiMU cameras are the smallest cameras in our portfolio and even in the world of industrial cameras.
All of the latest models come with a USB3 interface (USB-C, flex or micro coax cables) to support the full potential of sensor bandwidth and ensure simplicity of use. All this together with less than 5 grams weight and less than 1 watt power consumption, makes them also ideal for a plethora of embedded, mobile, and space-restricted applications, such as UAVs.

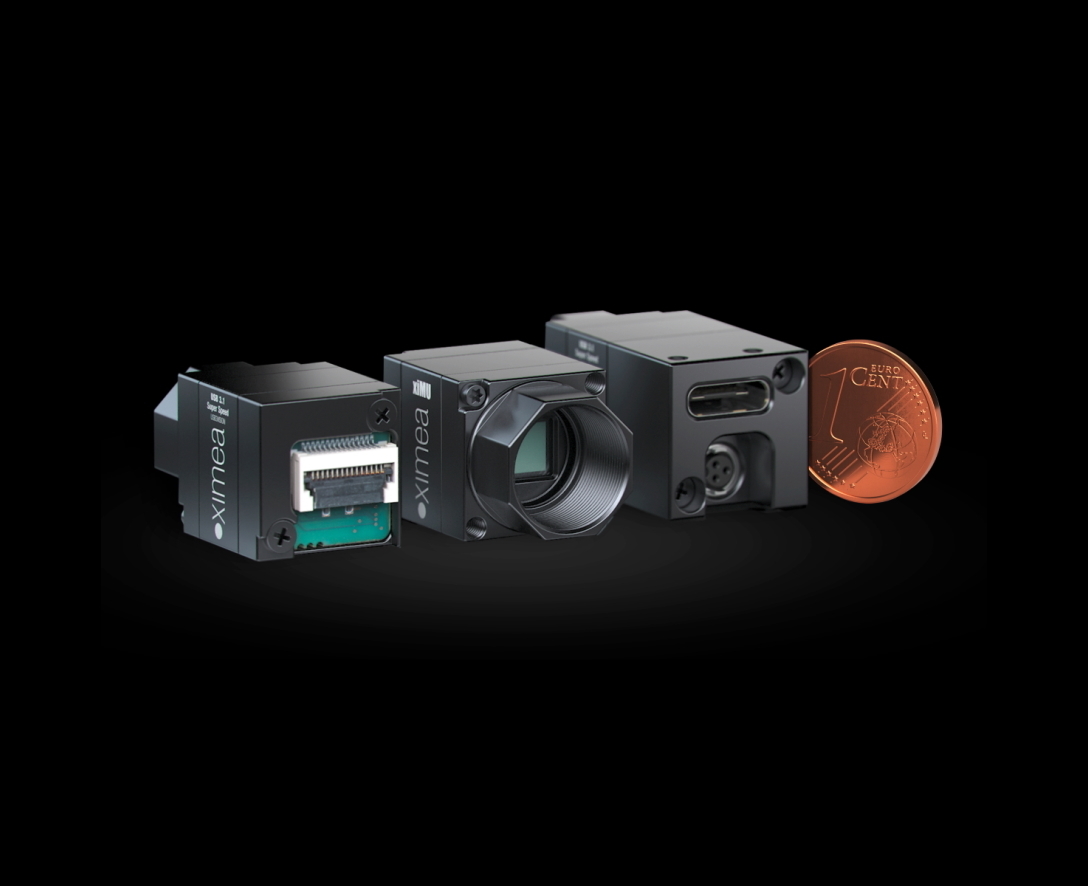

xiMU-Sony-IMX568-IMX675-AR2020-color-mono-camera-USB3-smallest-Global-shutter-vector-coin.jpg




Dimensions of only 15 x 15 x 8 and 17 x 17 mm and weight of only 5 grams
High resolutions - From 5 Mpix models up to new 19.6 Mpix
Next level speed with more than 48 FPS at 19.6 Mpix
Low power consumption starting at under 1 watt
Support - Windows, macOS, Linux, ARM and many vision libraries
Software - GenICam / GenTL and API / SDK for image processing
Industry interface compliance for USB 3.1 Gen1 and USB 2.0
Flex or micro coax cables make them suitable for embedded vision
Synchronization - 4x IO configurable as input or output
Range of accessories and compact lenses through S-mount
Customizable - Available as board level with various adapters
SWAP - Size, weight and power consumption ideal for UAV & drones
Both rolling shutter and global shutter options available
Time proven - In production for more than 15 years

CONTACT SALES

Models and sensors

Model	Resolution	Sensor type	Sensor model	Sensor resolution	Sensor size	Pixel size	Power consumption	Frame rate
MU9PC-MBRD	5 MPix	Color	MT9P031	2592 x 1944	1/2.5"	2.2 µm	0.76 Watt	4.6 FPS
MU9PC-MH	5 MPix	Color	MT9P031	2592 x 1944	1/2.5"	2.2 µm	0.76 Watt	4.6 FPS
MU9PM-MBRD	5 MPix	Monochrome	MT9P031	2592 x 1944	1/2.5"	2.2 µm	0.76 Watt	4.6 FPS
MU9PM-MH	5 MPix	Monochrome	MT9P031	2592 x 1944	1/2.5"	2.2 µm	0.76 Watt	4.6 FPS
MU050CR-SY	5 MPix	Color	IMX675	2592 x 1960	1/2.8"	2.0 µm	0.75 Watt	30 FPS
MU050MR-SY	5 MPix	Monochrome	IMX675	2592 x 1960	1/2.8"	2.0 µm	0.75 Watt	30 FPS
MU051CG-SY	5.1 MPix	Color	IMX568	2472 x 2064	1/1.8"	2.74 µm	0.96 Watt	48 FPS
MU051MG-SY	5.1 MPix	Monochrome	IMX568	2472 x 2064	1/1.8"	2.74 µm	0.96 Watt	48 FPS
MU181CR-ON	18 MPix	Color	AR1820HS	4896 x 3680	1/2.3"	1.25 µm	1.48 Watt	21 FPS
MU196CR-ON	19.6 MPix	Color	AR2020	5120 x 3840	1/1.8"	1.4 µm	0.82 Watt	14 FPS
MU196MR-ON	19.6 MPix	Monochrome	AR2020	5120 x 3840	1/1.8"	1.4 µm	0.82 Watt	14 FPS

SWIPE FOR MORE

Frame rate indicates the maximum achievable speed for full frame readout. The real performance will be affected by the USB controller, number and type of USB devices attached to this controller, system processor and memory speed and configuration.

Keyfacts

Keyfacts of xiMU cameras

SMALLEST

With 15 x 15 mm fits into places where no other comparable industrial camera can fit

PRECISE

High-resolution sensors up to 19.6 Mpix with backside illumination

LIGHT-WEIGHT

Payload-friendly SWaP for mobile, robotics, gimbals, or UAV/UAS applications

ADAPTABLE

Easy to use with a choice of connections like type-C, incredibly compact flex ribbon cable or micro-coax

EFFICIENT

Power consumption below 1 W reducing the battery drain of portable devices

SIMPLE

Single PCB design for easy integration into OEM and board-level solutions

CUSTOMIZABLE

Various housing and connector options, with cable types and distances for various application needs

COMPATIBLE

Windows, Linux, MacOS. Support for various machine vision libraries

LOW-RISK

Proven track record of integration in applications under water, on land, in air and in space

Applications

xiMU camera applications

Miniature

Stop motion animation, head mounted camera (HMC), kiosks, robotic arms, face recognition, eye tracking, 3D body scanner, people counting, security.

Microscopy-medical-scientific-imaging-fluorescence-ophthalmology-retinal-applications

Medical and scientific

Ophthalmology and retinal imaging, life science and brightfield microscopy, differential interference contrast (DIC), dentistry, biometrics and cell biology.

Aerial mapping

Photogrammetry, videogrammetry - City street or outdoor mapping with UAV / UAS and other types of drones or vehicles.

Quality inspection

Flat panel display (FPD), printed circuit board (PCB) examination, solar panel, photovoltaics, semiconductor wafer, metrology, print and film scanning.
