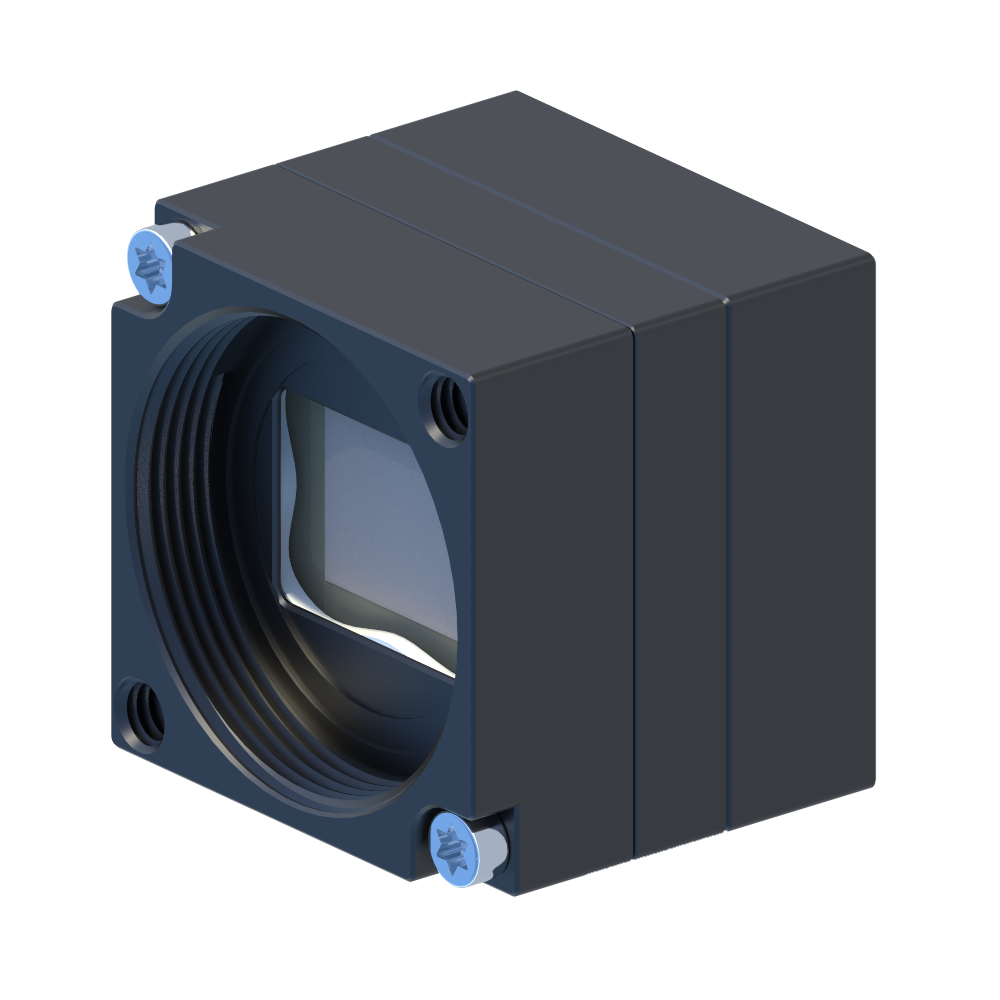

MU051CG-SY
Miniature camera with 5.1 Mpix Color SONY IMX568 CMOS sensor and USB3 interface
Specifications
Product statusActive
Sensor vendorSONY
Sensor modelIMX568
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate48 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.

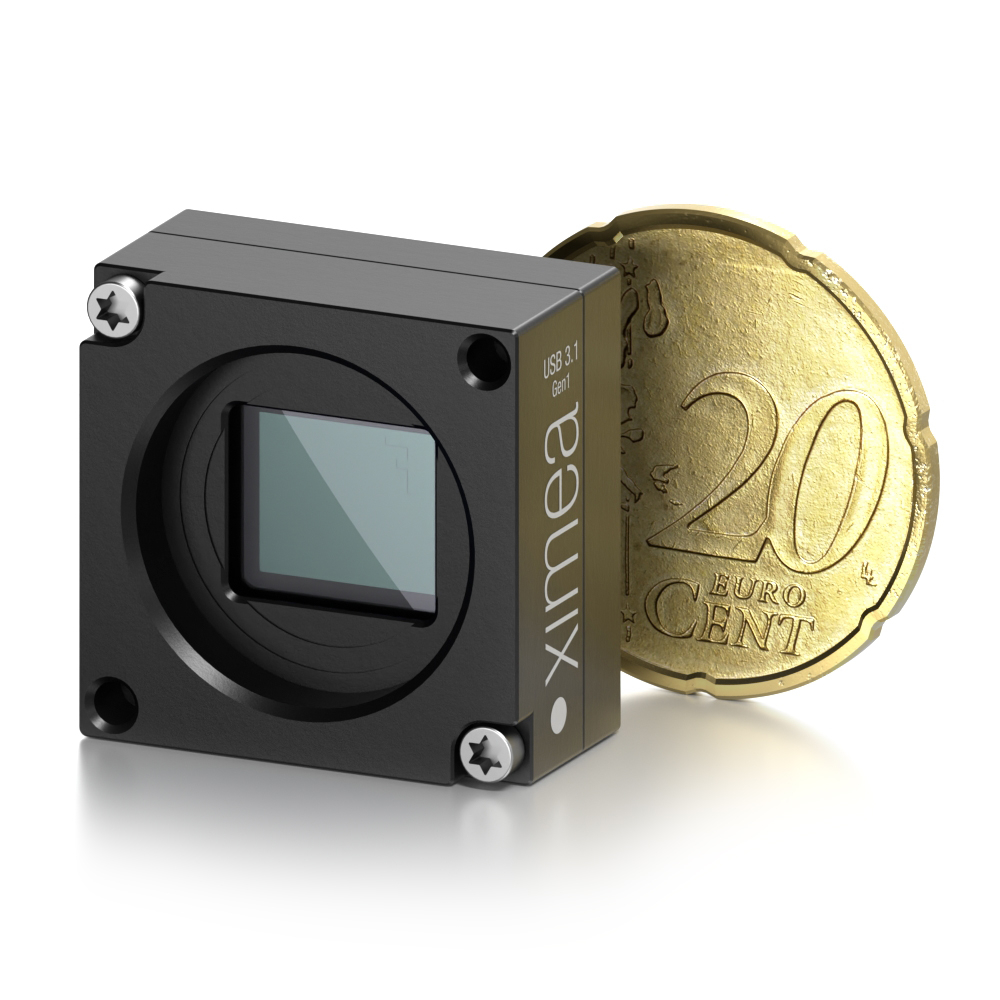

SMALLEST
Fits into places where no other comparable camera can fit
LIGHT-WEIGHT
Payload-friendly SWaP for mobile, robotics, gimbals, or UAV/UAS applications
ADAPTABLE

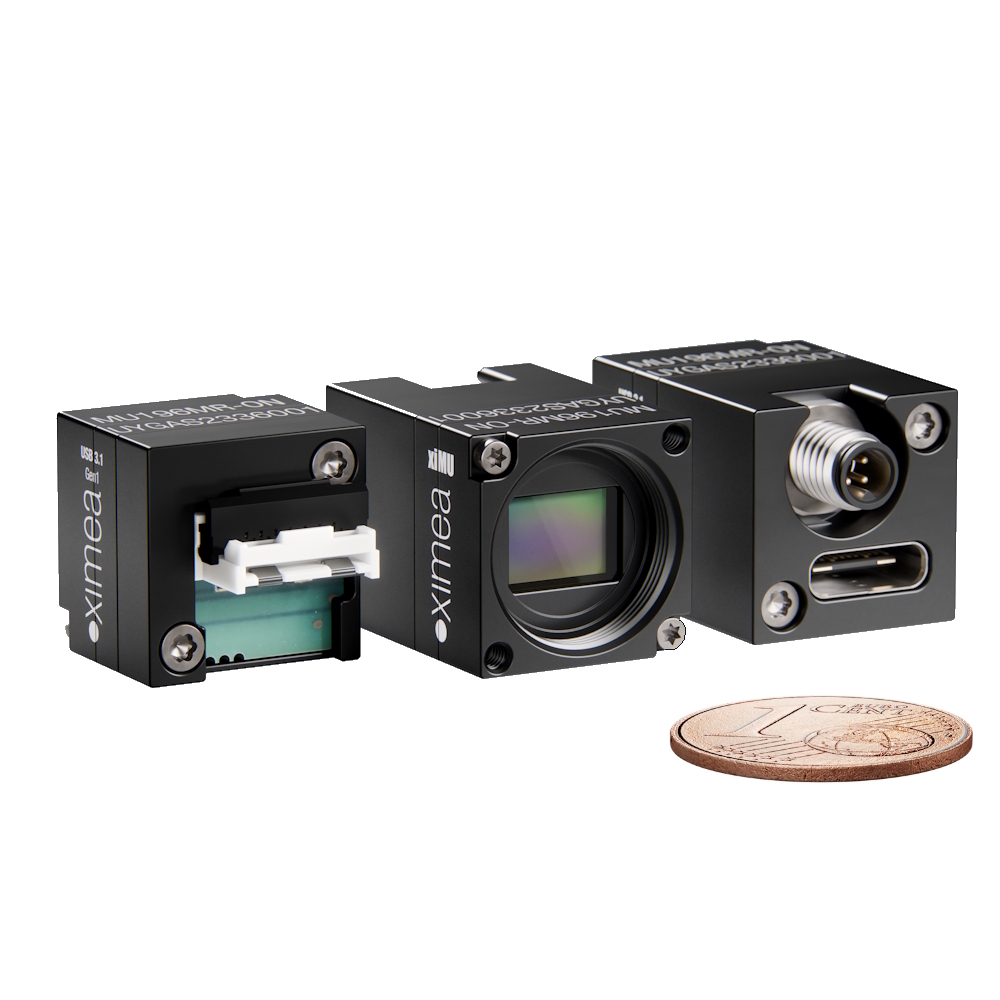

Easy to use with a choice of connections like type-C, incredibly compact flex ribbon cable or micro-coax
|
Sensor properties
|
||
| Resolution | 5.1 MPix | |
| Sensor resolution | 2472 x 2064 | |
| Sensor vendor | SONY | |
| Sensor model | IMX568 | |
| Sensor type | Color | |
| Sensor technology | CMOS | |
| Sensor size | 1/1.8" | |
| Sensor active area | 6.8 x 5.7 mm | |
| Sensor diagonal | 8.8 mm | |
| Pixel size | 2.74 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 48 FPS | |
| Bits | 8, 10, 12 bits | |
| On-chip decimation | 2x2 | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |
| Data connector type | USB3 Type-C | |
| GPIO count | Inputs: 4, Outputs: 4 | |
| Exposure minimum | 12 µs | |
| Exposure maximum | 30 s | |
| Power consumption | 0.96 Watt | |
| Heat dissipation | Natural convection | |
| Sensor cooling | No | |
| Special features | Single board, Smallest size | |
|
EMVA 1288 results
|
||
| Dynamic range | 69.0 dB | |
| Full well Capacity | 9200 e- | |
| Saturation Capacity | 9288.1 e- | |
| Readout noise | 2.6 e- | |
| Signal to noise ratio | 39.7 dB | |
| Peak QE red | 51% 610nm | |
| Peak QE green | 67% 520nm | |
| Peak QE blue | 60% 455nm | |
| Gain analog max | 24 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | S-mount | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 17.0 x 17.0 x 9.4 mm | |
| Mass - weight | 4.65 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 70 °C | |
Miniature
Stop motion animation, HMC - head mounted camera, Kiosks, Robotic arms, Face recognition, Eye Tracking, 3D Body scanner, People counting, security.
Medical and Scientific
Ophthalmology and Retinal imaging, Material and Life science microscopy, Differential interference contrast (DIC), Dentistry, Biometrics and Cell biology.
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor mapping with UAV / UAS and other types of drones or self-driving vehicles.
Quality inspection
Flat panel display (FPD), Printed circuit board (PCB) examination, Solar panel, Photovoltaics, Semiconductor wafer, Metrology, Print and Film scanning.

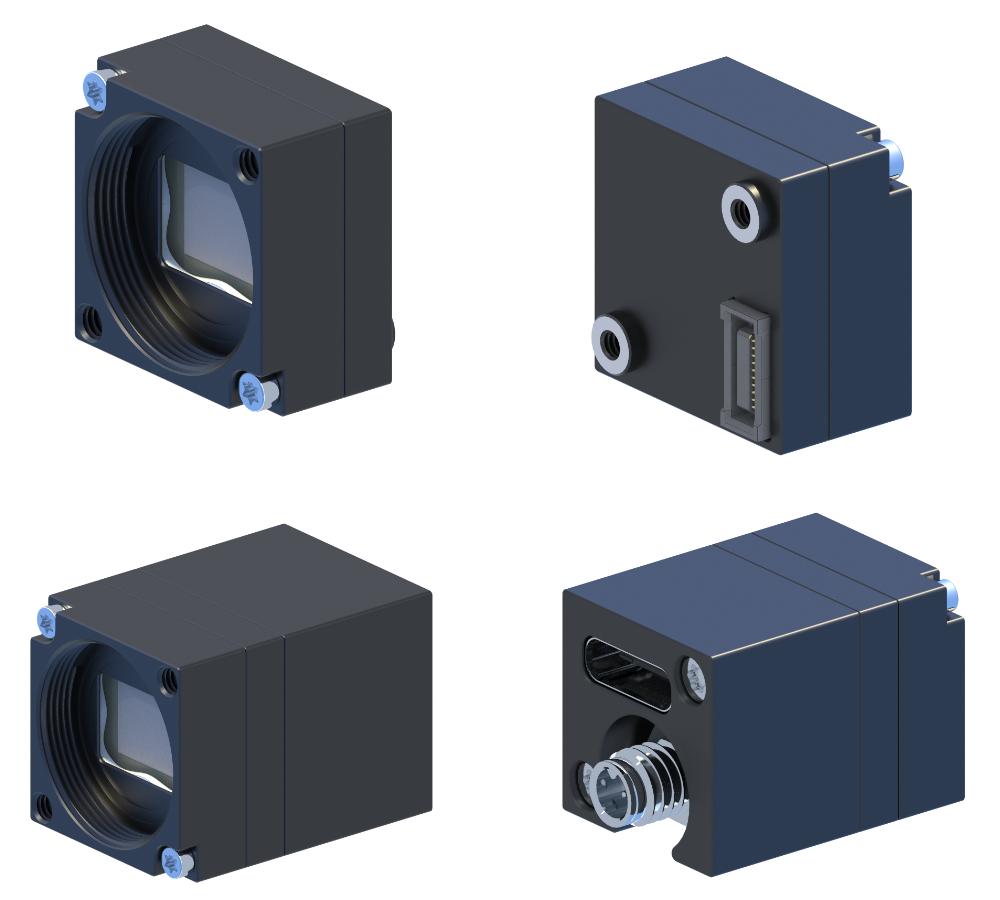

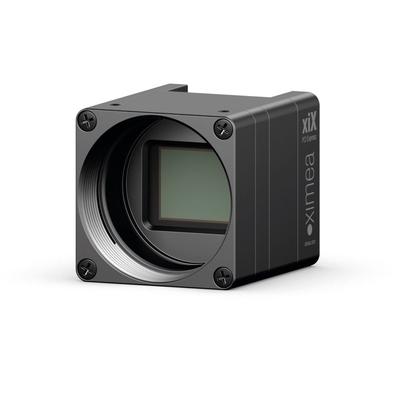

Variants
More flavors, more options: Explore alternative versions of the selected model.

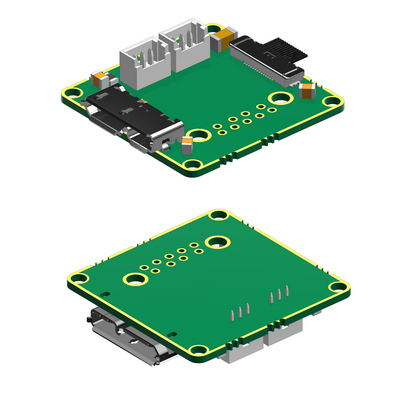

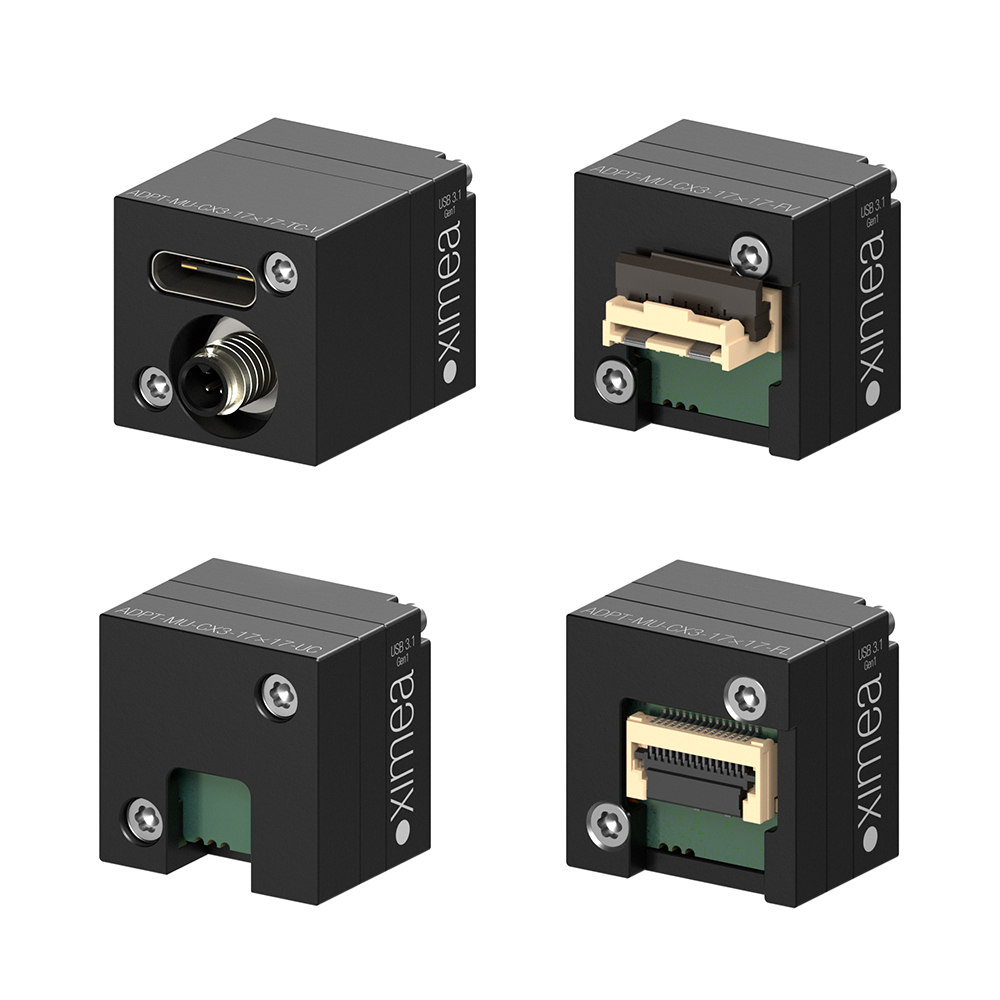

Accessories
