xiD - USB 3.0 Cameras with CCD

What is xiD?

Compact USB 3.0 Scientific grade CCD camera family

Quality components - Sony "EXview HAD CCD II" sensors delivering 2.8, 6.1, 9.1 and 12 Mpix
Fastest - Highest speed using full 4 TAP readout potential
Industry standard interface - Compliant with USB 3.0 SuperSpeed specification

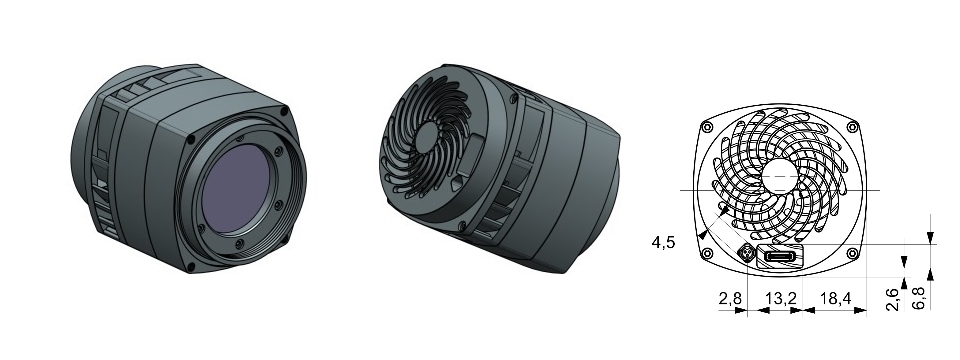

Versatile mini camera - Subtle 60 x 60 x 37 mm, 320 grams
Power - Lowest power consumption starting at 3 Watt, bus powered with USB3 cable
Cool - Minimal heat dissipation with passive Cooling elements
Compatibility - USB 3.0 support for Windows 7 and 10, macOS, Linux, ARM and 30 Libraries
Connectivity and Synchronization - Programmable opto-isolated input and output, 3 status LEDs
Bandwidth potential - 5Gb/s interface 400Mpix/s data throughput
Software interfaces - GenICam / GenTL and highly optimized xiAPI SDK for Image Processing
High grade - Quality class of sensors is combined with specially selected IR filters
Long Exposure times - Up to 1500 seconds depending on the model

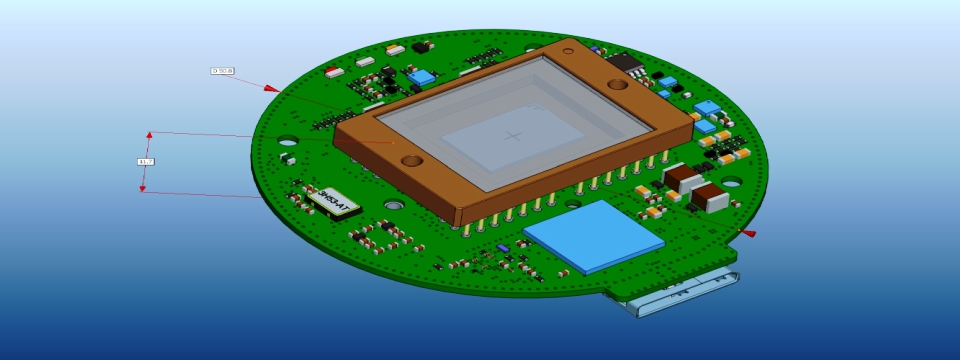

Highly Customizable - Available in Board level and with Peltier TE Cooling

Read more at USB3 Zone

This e-mail address is being protected from spambots. You need JavaScript enabled to view it

Models

xiD Monochrome and Color models:

B/W model	Color model	Sensor	Resolution	Pixel µm	ADC bits	FWC	Power Watt	DR dB⁽²⁾	Frames per sec⁽¹⁾
MD028MU-SY	MD028CU-SY	SONY ICX674	1934 x 1456, 2.8 MP	4.54	8,10,12,14	20000	3.6 W	71.1	57
MD061MU-SY	MD061CU-SY	SONY ICX694	2754 x 2204, 6.1 MP	4.54	8,10,12,14	19500	3.9 W	71.8	28.4
MD091MU-SY	MD091CU-SY	SONY ICX814	3384 x 2708, 9.1 MP	3.69	8,10,12,14	12000	4.2 W	68.4	20
MD120MU-SY	MD120CU-SY	SONY ICX834	4242 x 2830, 12 MP	3.1	8,10,12,14	10000	4.8 W	63.1	15.3

(1) Maximum frame rates measured at 52 MHz, 4 taps, RAW 14 bits; +20% in overclocked mode, 12bit packed

(2) 26 MHz readout frequency

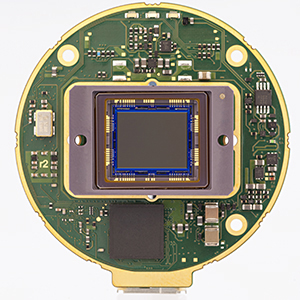

All models are also adjustable for Board level version - special conditions may apply. For Cooled models check prepared xiJ line

Common features:

Sensor technology	CCD, Global shutter
Acquisition modes	Continuous, software trigger, hardware trigger
Partial image readout	ROI / AOI (region/area of interest), Binning modes supported
Image data formats	8, 10, 12 or 14 bit RAW pixel data
SDK/API	programmable with C++ and C#, Python
Color image processing*	Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS
Hot/blemish pixels correction*	On camera storage for bad pixels, host assisted correction
Auto adjustments*	Auto white balance, auto gain, auto exposure
Flat field corrections*	Host assisted pixel level shading and lens corrections. This feature is being developed and tested.
Interface	USB 3.0 standard Micro B with screw lock threads compliant to USB3 Vision standard
General purpose I/O	2x opto-isolated input, 2x opto-isolated output, power LED, 2x LED software programmable
Signal conditioning*	Programmable debouncing time
Synchronization	Hardware trigger input, software trigger, exposure strobe output, busy output
Lens mount	Standard C mount
Power requirements	3 to 5.2 Watt, supplied via USB 3.0 interface or power cable
Dimensions	60 x 60 x 37 mm
Weight	320 grams
Environment	Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage
Conformity	CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed
Operating systems	Windows 7 SP1 (x86 and x64) and 10, Linux Ubuntu, macOS, ARM
Minimum host hardware	Intel i3 3.0GHz, +2GB RAM available physical memory, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter
Software support	xiAPI SDK, adapters and drivers for 30 various image processing Libraries
Firmware updates	Field firmware update through xiCOP

(*) Feature is available only when the camera is in XIMEA API mode.

Read more at USB3 Zone

This e-mail address is being protected from spambots. You need JavaScript enabled to view it

Accessories

xiD Accessories

Passive cables		Availability

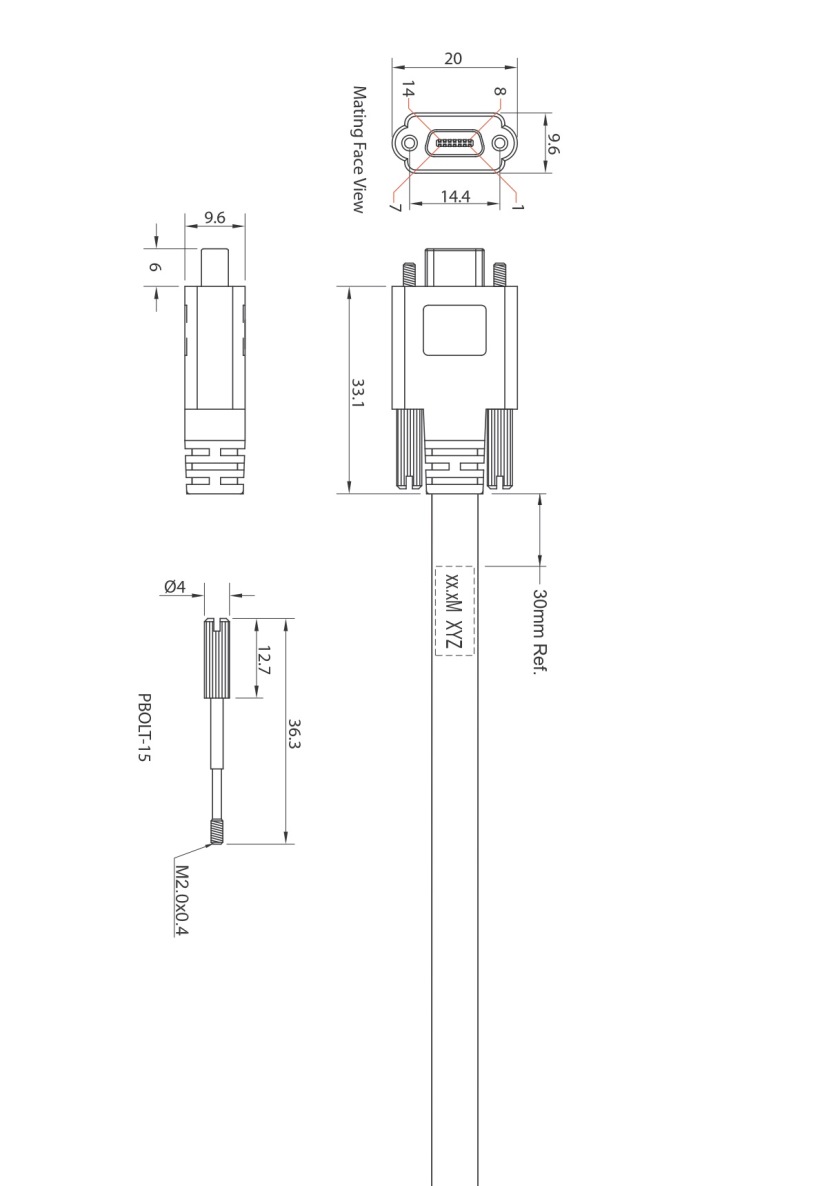

CBL-U3-1M0	1.0 meter USB 3.0 cable, with thumbscrews on Micro B connector	Now
CBL-U3-3M0	3.0 meter USB 3.0 cable, with thumbscrews on Micro B connector	Now
CBL-U3-3M0-ANG	3.0 meter USB 3.0 cable, with thumbscrews on Micro B connector, angled	Now
CBL-U3-5M0	5.0 meter USB 3.0 cable, with thumbscrews on Micro B connector	Now
Special power cables
CBL-U3-3M0-YP	3.0m Y-shaped power USB3 Cable, thumbscrews	This e-mail address is being protected from spambots. You need JavaScript enabled to view it
CBL-U3-5M0-YP	5.0m Y-shaped power USB3 Cable, thumbscrews	This e-mail address is being protected from spambots. You need JavaScript enabled to view it
Synchronization cables
CBL-MD-PWR-SYNC-3M0	3.0 meter sync cable, thread lock, GPIO: ground, General Input, General Output, Aux Power	N ow
Mounting brackets
MECH-60MM-BRACKET-T	xiD series tripod mounting bracket	Now
Host adapters
U31PE1G3-V1-X2	PCI express x1 Gen2 adapter, 2x USB 3.1 ports, asmedia ASM1142	This e-mail address is being protected from spambots. You need JavaScript enabled to view it
U3PE-FL1100-X4	PCI express x1 Gen2 adapter, 4x USB 3.0 ports, Fresco Logic FL1100	Now
Lenses	Several lenses from different vendors (Fujinon, Kowa, Ricoh, Tamron etc.)	This e-mail address is being protected from spambots. You need JavaScript enabled to view it
Cable Extenders 50 - 100m	Fiber optics cables from different vendors	This e-mail address is being protected from spambots. You need JavaScript enabled to view it

Read more at USB3 Zone

This e-mail address is being protected from spambots. You need JavaScript enabled to view it

Software

USB 3.0 supported operating systems:

Windows 7 SP1 and Windows 10
Linux Ubuntu
macOS
ARM (planned)
C/C++, Python, GenICam, .NET

Download software at USB3 Zone

Vision Libraries:

Download Vision Libraries support files

API Manual
