Contents of Hyperspectral Starter Kits¶
Camera models¶
Cameras are not part of the Hyperspectral Starter Kit as the kits are universal.
However, here are the current HSI camera models available from XIMEA:
| Part Number | Description of the part |
| MQ022HG-IM-LS150-VN2 | HSI Line scan camera, 470 - 900 nm, 150 bands, USB3 or PCIe interface, C-mount |
| MQ022HG-IM-SM5X5-NIR2 | HSI Snapshot Mosaic camera, 665 - 960 nm, 24 bands, USB3 or PCIe interface, C-mount |
| MQ022HG-IM-SM4X4-VIS3 | HSI Snapshot Mosaic camera, 460 - 600 nm, 16 bands, USB3 or PCIe interface, C-mount |
| MQ022HG-IM-SM4X4-RN2 | HSI Snapshot Mosaic camera, 600 - 860 nm, 15 bands, USB3 or PCIe interface, C-mount |
Starter kit types¶
The following are various types of Starter kits depending on the included accessories:
| Part Number | Description of the part |
| XISPEC2-KIT-16 | xiSpec2 starter/demo Kit with 16mm lens |
| XISPEC2-KIT-16-TILE | xiSpec2 starter/demo Kit with 16mm lens and diffuse reflection target |
| XISPEC2-KIT-16-TILE-TRI | xiSpec2 starter/demo Kit with 16mm lens, diffuse reflection target and mini-tripod |
| XISPEC2-KIT-16-TRI | xiSpec2 starter/demo Kit with 16mm lens and mini-tripod |
Note: The 16 in the part number can be switched to 25 or 35 to reflect the lens choice described below.
Lens options¶
Each Starter kit can be ordered with 3 options of lenses to choose from:
| Lens | Description of the parameters |
| 16 mm VIS/NIR 2/3" lens | FOV horizontal: 38.9°, vertical: 21.2°, WD: 100mm - ∞, weight: 74g |
| 25 mm VIS/NIR 2/3" lens | FOV horizontal: 25.5°, vertical: 13.7°, WD: 100mm - ∞, weight: 48g |
| 35 mm VIS/NIR 2/3" lens | FOV horizontal: 18.3°, vertical: 9.8°, WD: 165mm - ∞, weight: 75g |

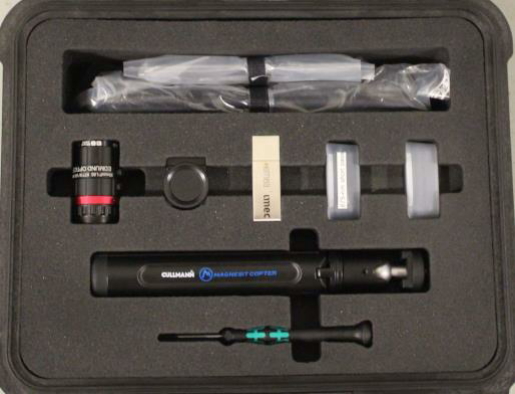

Universal accessories¶
Every Starter kit includes the following components:
| Accessory | Description of the accessory |
| CBL-MQSYNC-3M0 | xiQ camera sync cable 3.0m, 3 poles, pigtail |
| CBL-U3-3M0 | 3m USB 3.0 cable, thumbscrews lock connector |
| MQ-BRACKET-T | xiQ camera series tripod mounting bracket |
| Type-A/Type-C USB3 OTG adapter | For use with laptops that only have Type-C ports |
| Screwdriver | PH00x40mm |
| USB Stick | Contains multiple documents with guides and software |

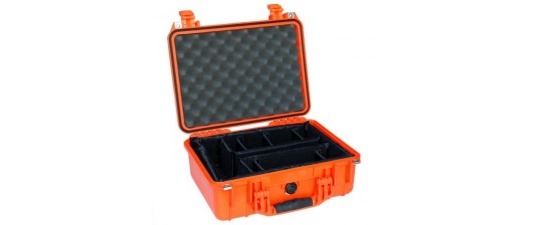

| PELI-CASE | New customized transport case |
The list of accessories is subject to change.
