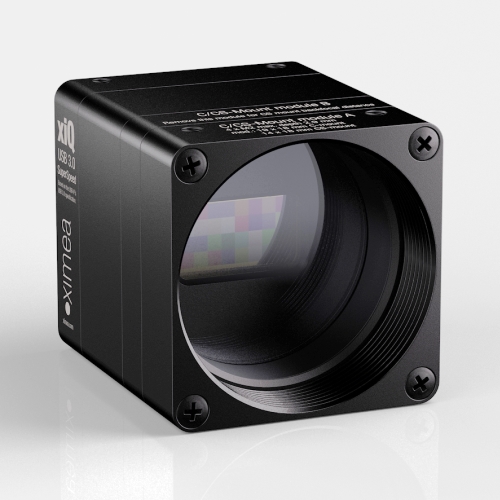

MQ022HG-IM-SM4X4-VIS

MQ022HG-IM-SM4X4-VIS
  • Snapshot Mosaic model. Scans: up to 170 cubes/sec
  • 16 Bands, Spectral range 475-640 nm
  • Spatial resolution: approx. 512 × 272 pixels
  • Smallest and lightest Hyperspectral camera: 26 x 26 x 31 mm, 32g
  • 1.6 Watt and overall SWAP are ideal for Embedded vision systems
  • USB3 Vision Compliant

Snapshot Mosaic Hyperspectral imaging (HSI) camera smallest sensor



Applications: Precision Agriculture, Remote Sensing, Mineralogy (mining), DNA sequencers/flow cytometers, Medical Imaging (cancer cells inspection), Endoscopy, Fluorescence, Ophthalmology, Skin tones/tissue analysis, Material and Life science microscopy, Terrestrial/maritime earth observation, Space exploration, Astronomy, Environmental Monitoring, Security (industrial gas leaks, forensics), Spectroscopy instrumentation, Optical sorting (plastic, ceramic, glass, pharmaceutical), Food inspection (quality grading), Defect detection, UAV

Brochure



Manual



Product page



Support page



CONTACT SALES


Specifications:
Part Number MQ022HG-IM-SM4X4-VIS
Resolution Original: 2048 × 1088 Spatial: 512 × 272
Frame rates up to 170 cubes/sec
Sensor type CMOS, Hyperspectral filters added at wafer-level
Sensor model IMEC SNm4x4
Sensor size 2/3"
Sensor active area 16 Bands
Readout Method Snapshot Mosaic
Pixel size 5.5 µm
ADC -Bits per pixel 8, 10 bit RAW pixel data
Data interface USB 3.1 Gen1 or PCI Express (xiX camera model)
Data I/O GPIO IN, OUT
Power consumption 1.6 Watt
Lens mount C or CS Mount
Weight 32 grams
Dimensions WxHxD 26 x 26 x 31 mm
Operating temperature 50 °C
Spectral range 475-640 nm
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
Last Updated: 12 December 2019, 11:37
