World's smallest USB3 Vision cameras
From VGA to 4 Mpix resolution
Able to achieve 500 Fps or even 1000 Fps
In production since 2011

xiQ-board-USB3-compact-small-fast-mini-industrial-camera-global-shutter

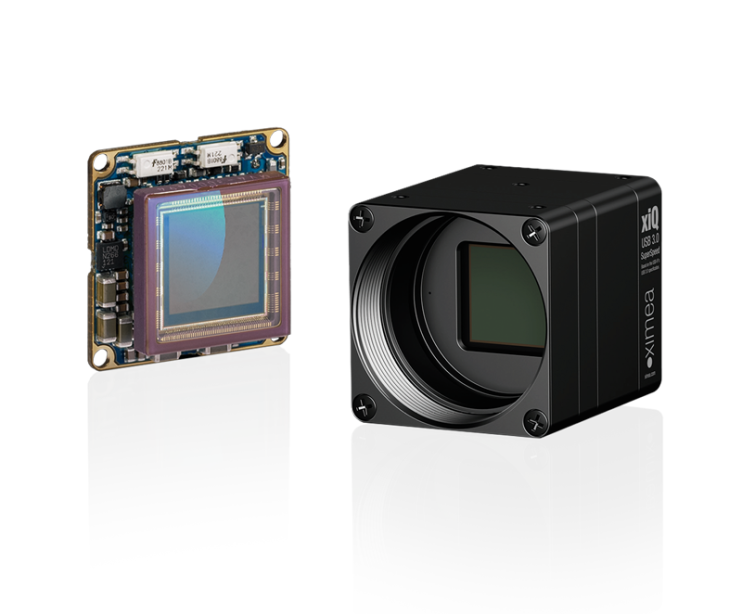

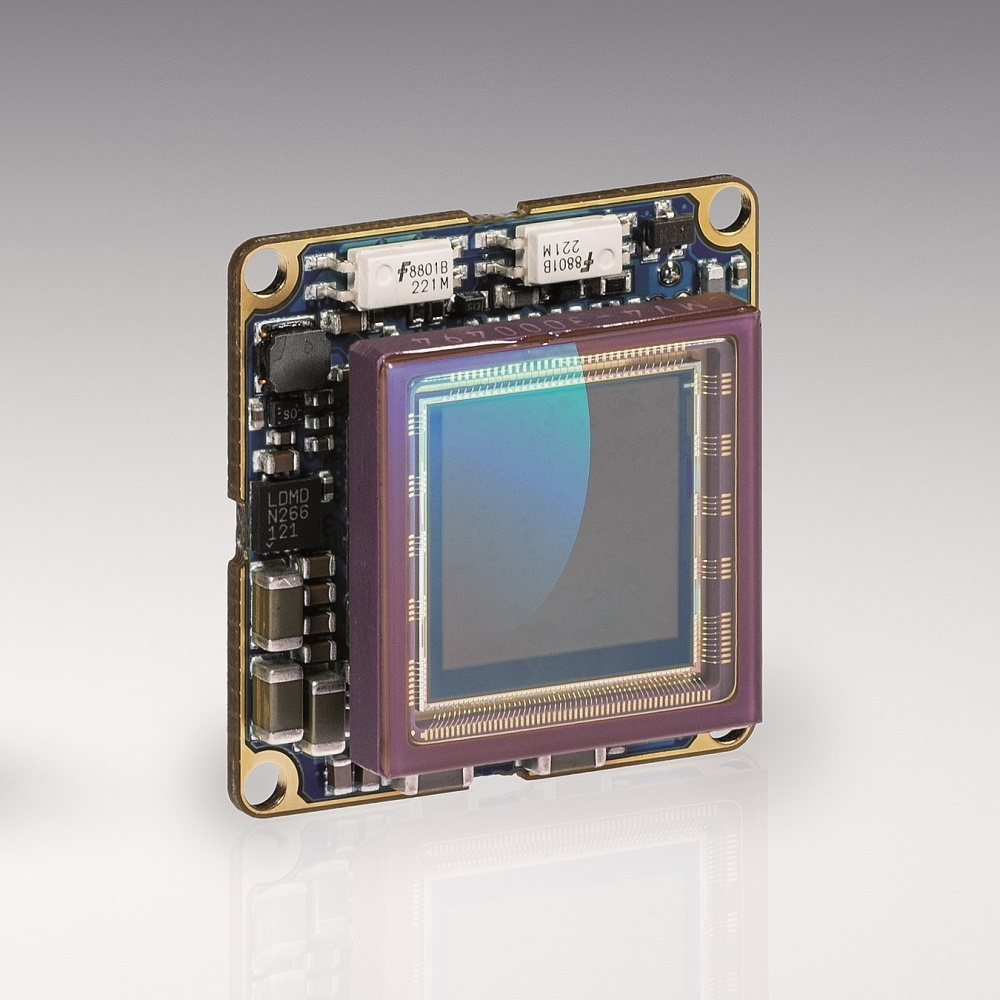

Board level camera versions
Quality Global shutter sensors
NIR - Near Infrared extended QE
Easy switch from C to CS mount

Highlights

Highlights Models and sensors Keyfacts Applications Links and downloads Contact

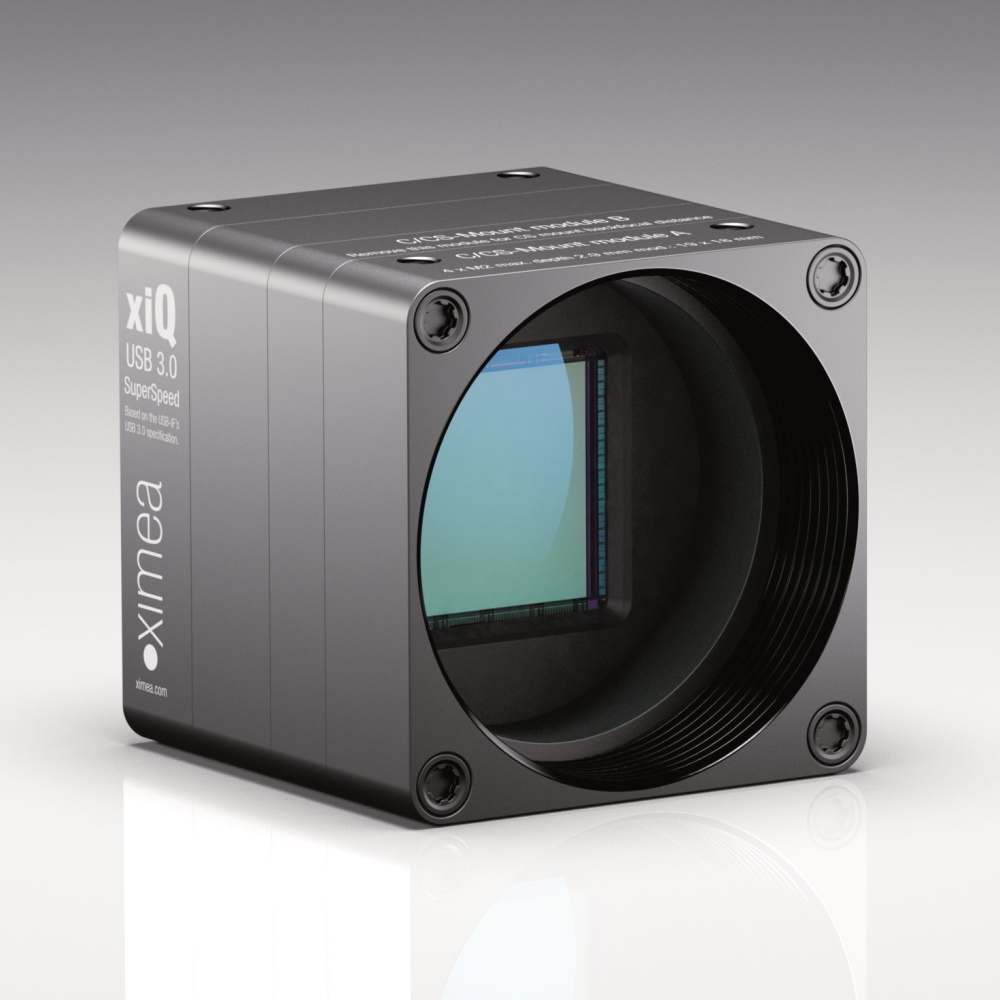

What is xiQ?

The xiQ camera series is highly versatile with a selection of popular and established CMOS sensors.

The ultra-compact form factor, barely larger than the C-mount, combined with micro-B, and flex ribbon connectors make these cameras the perfect fit for various applications, especially for automation and embedded vision systems. Board-level variants enable custom integrations into devices and systems, while taped-glass sensor options minimize interference effects in photonics applications.

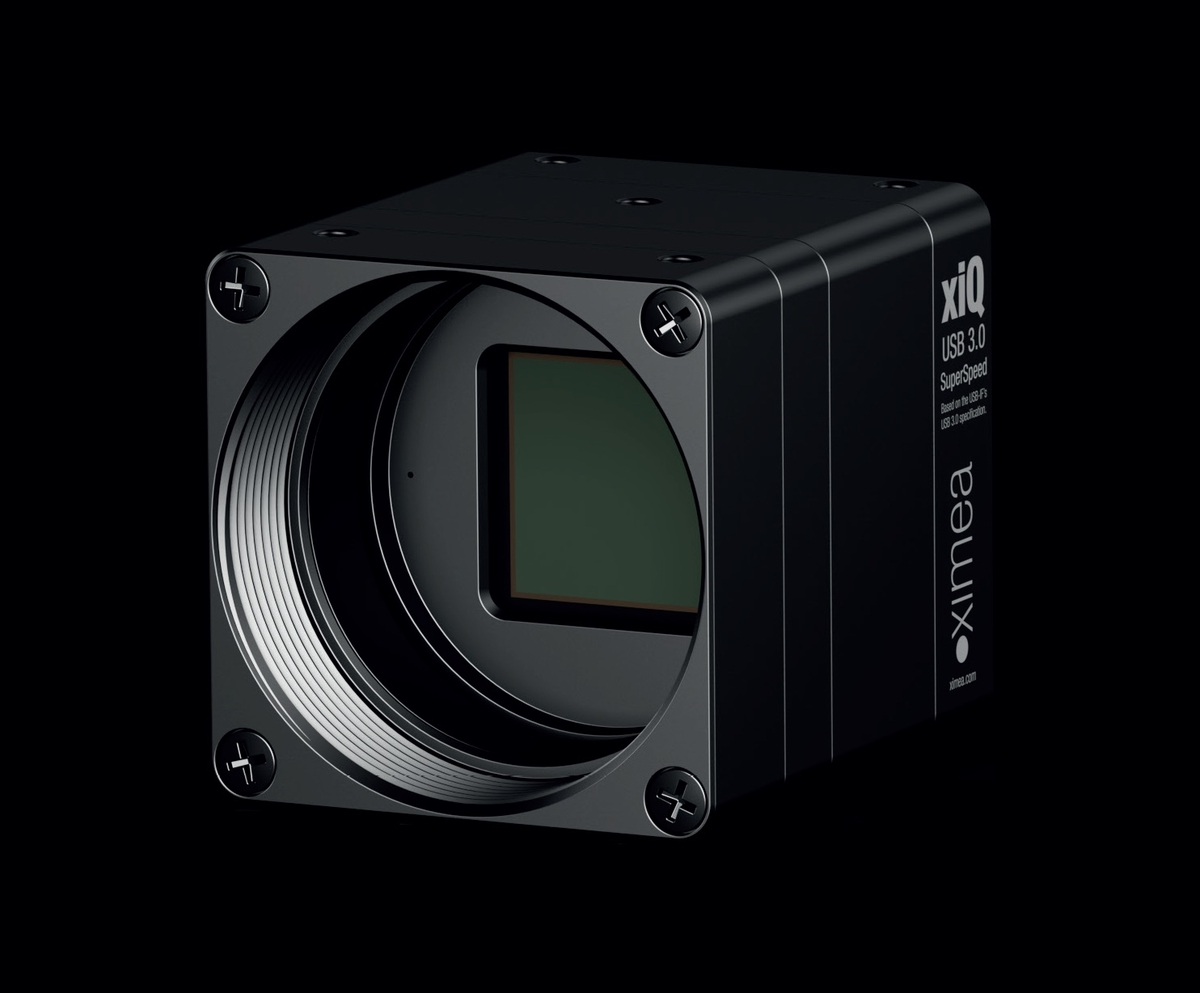

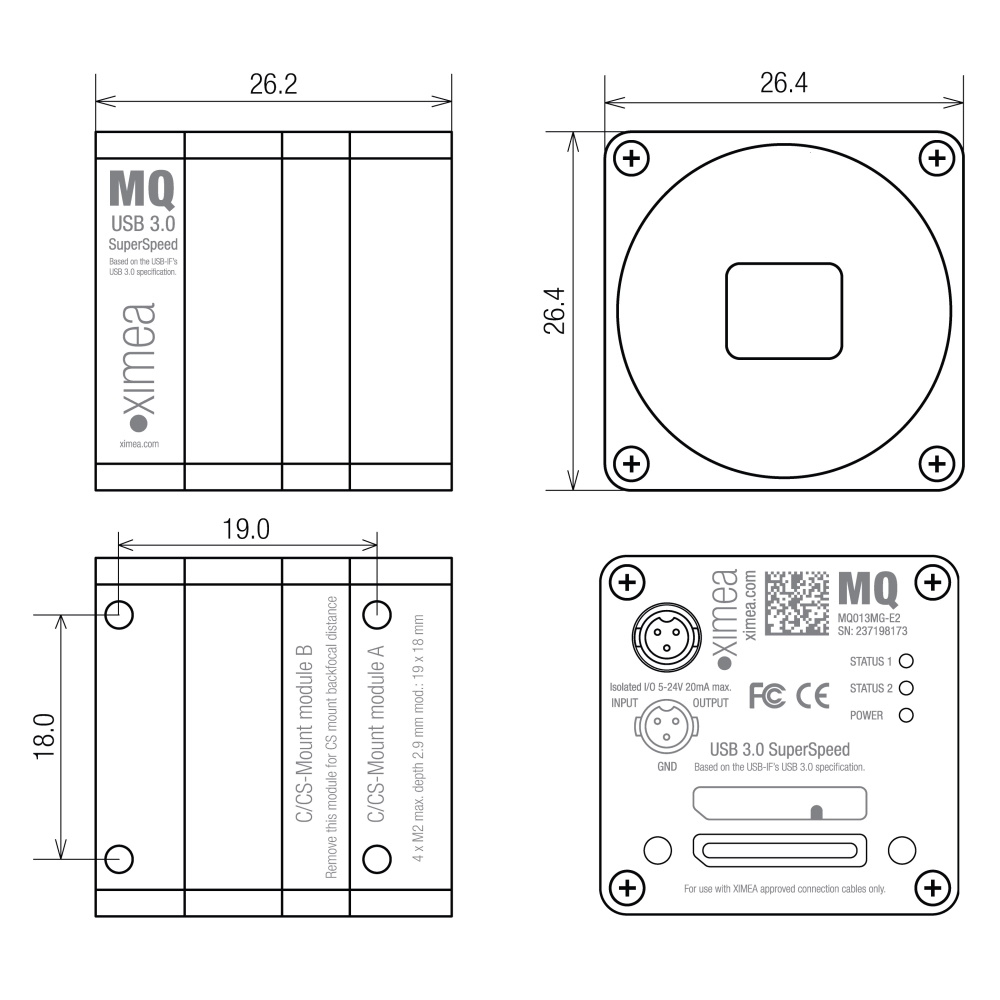

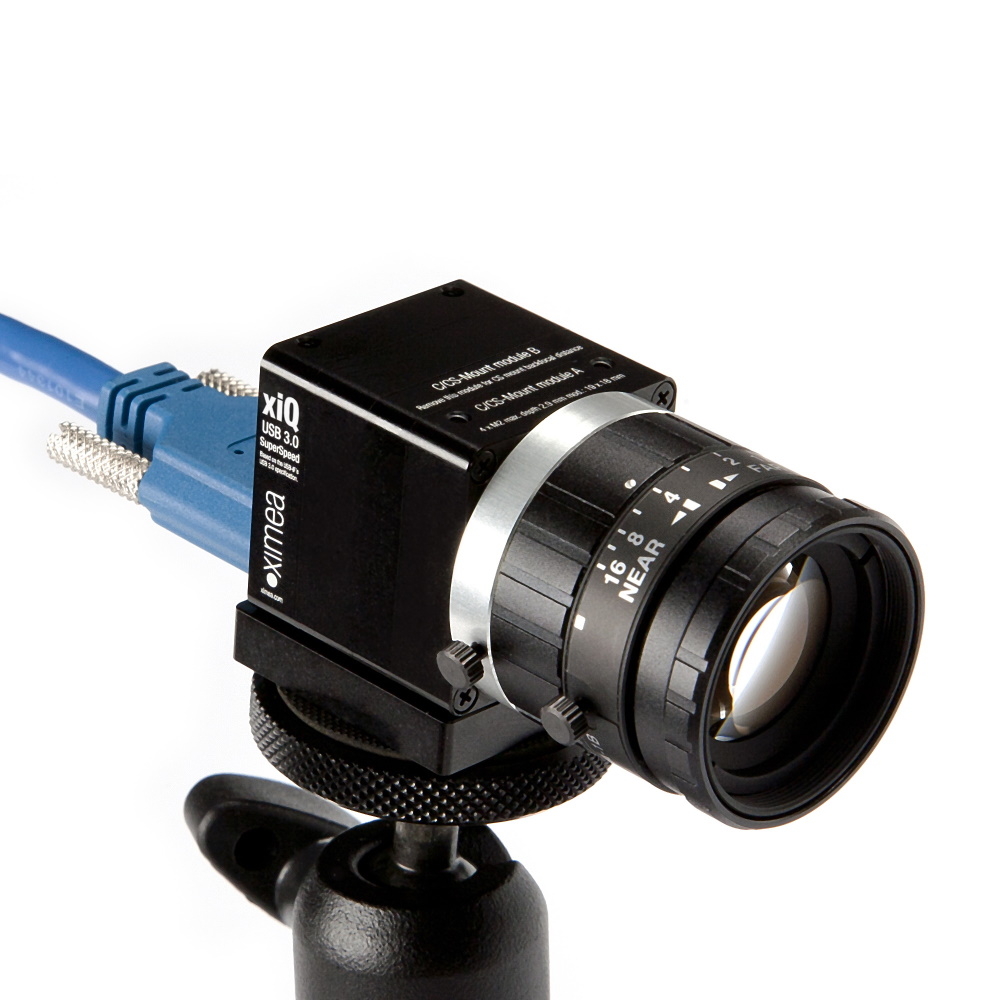

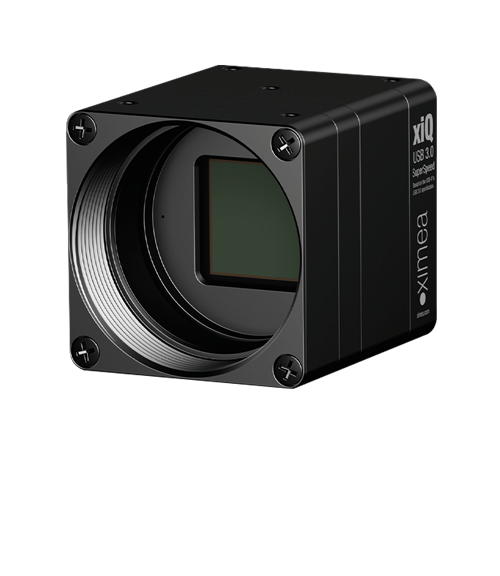

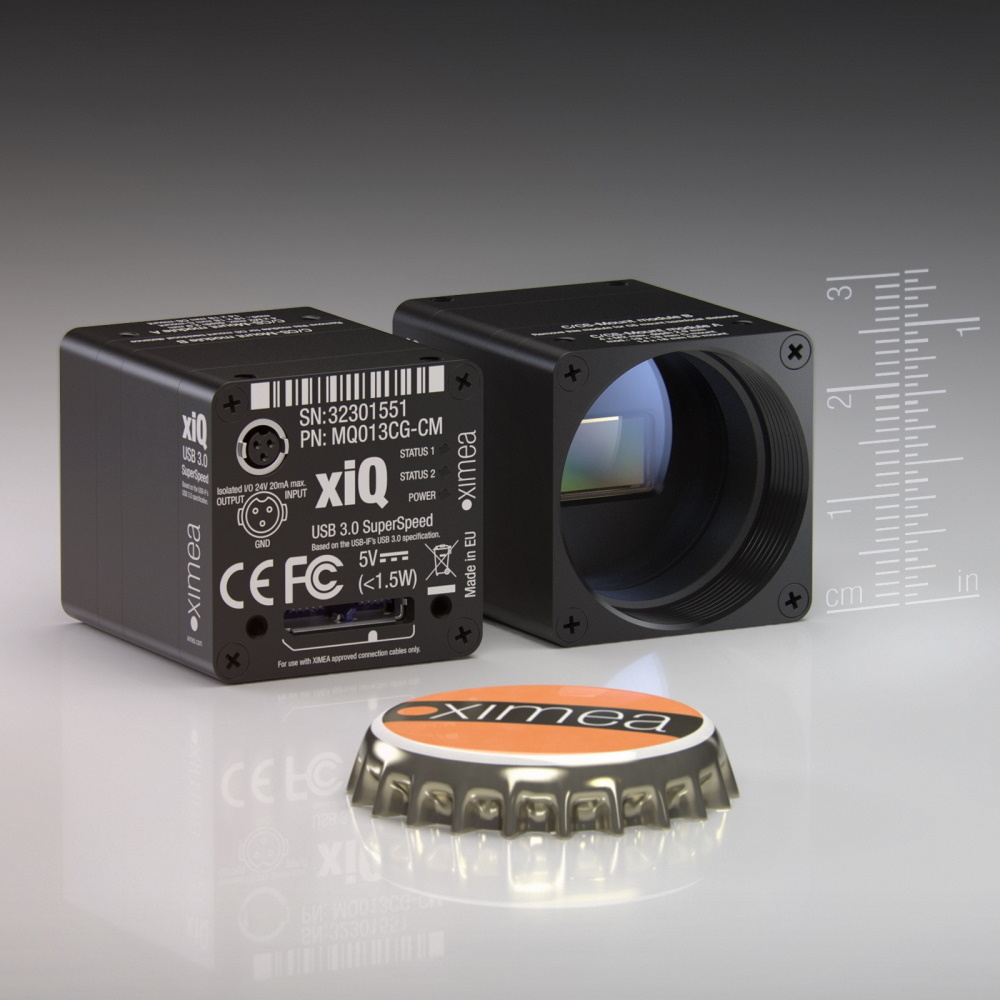

Most compact cameras - 26.4 x 26.4 x 26 mm small and 27 grams
High frame rate: 500 FPS at VGA and 1000 FPS at 640 x 400
Low power consumption down to 1 W and minimal heat dissipation
5 Gbit/s interface 400 MB/s data throughput
Supported - Windows 10, macOS, Linux, ARM and various libraries
GenICam / GenTL and highly optimized SDK for image processing
AIA standard - USB3 Vision standard compliant
Compatible with USB 3.1 Gen1 SuperSpeed specification
Synchronization - Programmable opto-isolated input and output
User friendly - Intuitive and simple API, easy switch from C- to CS- mount
Customizable - available in board level (single PCB), various connectors
Time proven - In production since the end of 2011
Cost efficient - Excellent value for the price, low TCO and fast ROI

Models and sensors

Model	Resolution	Sensor type	Sensor vendor	Sensor model	Sensor resolution	Pixel size	Dynamic range	Frame rate
MQ013CG-E2-S7	1.3 MPix	Color	e2v	EV76C560	1280 x 1024	5.3 µm	51.6 dB	61 FPS
MQ013CG-ON-S7	1.3 MPix	Color	onsemi	PYTHON1300	1280 x 1024	4.8 µm	58.3 dB	210 FPS
MQ013MG-E2-S7	1.3 MPix	Monochrome	e2v	EV76C560	1280 x 1024	5.3 µm	51.7 dB	61 FPS
MQ013MG-ON-S7	1.3 MPix	Monochrome	onsemi	PYTHON1300	1280 x 1024	4.8 µm	57.4 dB	210 FPS
MQ013RG-E2-S7	1.3 MPix	NIR	e2v	EV76C661	1280 x 1024	5.3 µm	50.2 dB	61 FPS
MQ013RG-ON-S7	1.3 MPix	NIR	onsemi	PYTHON1300	1280 x 1024	4.8 µm	58.2 dB	210 FPS
MQ022CG-CM-S7	2.2 MPix	Color	CMOSIS	CMV2000	2048 x 1088	5.5 µm	54.4 dB	169 FPS
MQ022MG-CM-S7	2.2 MPix	Monochrome	CMOSIS	CMV2000	2048 x 1088	5.5 µm	54.7 dB	169 FPS
MQ022RG-CM-S7	2.2 MPix	NIR	CMOSIS	CMV2000	2048 x 1088	5.5 µm	53.3 dB	169 FPS
MQ042CG-CM-S7	4.1 MPix	Color	CMOSIS	CMV4000	2048 x 2048	5.5 µm	53.0 dB	90 FPS
MQ042MG-CM-S7	4.1 MPix	Monochrome	CMOSIS	CMV4000	2048 x 2048	5.5 µm	54.2 dB	90 FPS
MQ042RG-CM-S7	4.1 MPix	NIR	CMOSIS	CMV4000	2048 x 2048	5.5 µm	53.0 dB	90 FPS

(1) Maximum frame rates measured at 8 bits per pixel RAW data in free run mode. Python 1300 model - with Zero ROT feature enabled.
(2) NIR models are based on EV76C661 sensor from e2V, also called ruby and near infrared sensors from CMOSIS and onsemi.
(3) Please check faster model versions from xiX line based on PCIe interface.
(4) All models are also available in board level version and some of them with optional flat ribbon flex cable or angled connector - ideal for embedded vision systems.

XIMEA model names are made up of short codes that describe key characteristics of a camera. The example below (MQ013CG-E2-S7) shows how a typical name is put together, and the table explains the codes used in this camera family. It is meant as a quick guide: individual models may deviate, so the datasheet remains the binding reference.

MQMM 013RRR CC GT – E2VV – S7OOO

SEGMENT	MEANING	CODE	DESCRIPTION
MM	Camera family	MQ	xiQ camera family
RRR	Resolution¹	e.g. 013	Model specific
C	Color sensing	C	Color
		M	Mono
		R	IR-extended
T	Sensor technology	G	CMOS, global shutter
VV	Sensor vendor	E2	Teledyne e2v
		ON	onsemi
		CM	CMOSIS (ams OSRAM)
OOO	Options²	S7	FPGA generation Spartan-7
		FL	Flex-Line, horizontal connector
		BRD	Board-level version

¹ Approximate resolution in steps of 0.1 megapixels (e.g. 1.3 MP = 013). Some models deviate.

² A name can contain several option codes, and their order can vary between models. Further options are available on request.

Keyfacts

Keyfacts of xiQ cameras

COMPACT

Only 26 x 26 mm small, single PC board electronics. Fits into places where other cameras can’t

FAST

SuperSpeed USB3. High speed, high frame rate: >800 FPS at VGA and 90 FPS at 4 Mpix resolutions

COMPATIBLE

USB3 Vision, Windows, Linux, MacOS. Support for various machine vision libraries

ROBUST

Full metal housing, CNC-machined with precision, no moving parts or sheet metal covers for maximum stability and durability

LIGHTWEIGHT

Housed cameras mass under 23 g. Increased performance of moving objects like robotic arms and gimbals

COOL

Lowest power consumption with 0,75 to 1.5 W and minimal heat dissipation

DIVERSE

Monochrome, color and NIR enhanced global shutter cameras available in board level versions

SIMPLE

Power over USB3 interface. Programmable GPIO option for precise hardware synchronization, Intuitive and simple to use API

RELIABLE

Designed for 24/7 operations to last for years. Low TCO and fast ROI, easy integration into OEM solutions

Applications

xiQ camera applications

Ultra-fast scanning

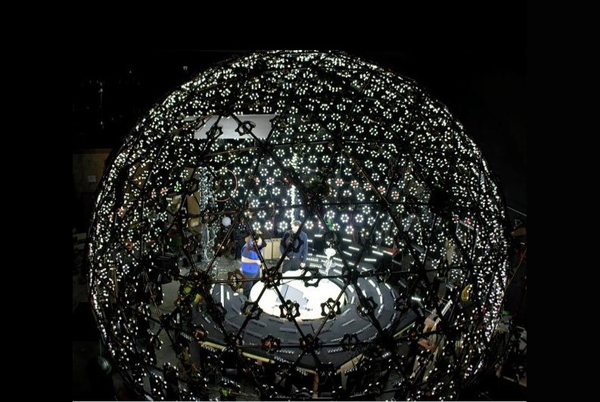

3D and FACS scanning. Face recognition, eye tracking, body scanner, people counting. wide area motion imaging and surveillance.

VR and AR

Virtual and augmented reality. High definition motion capture, 360 panorama, head mounted camera (HMC). Cinematography and entertainment.

Medical and scientific

Medical imaging, ophthalmology, histology and retinal imaging, life science and brightfield microscopy (IR-DIC), biometrics and cell biology.

Aerial mapping

Photogrammetry, videogrammetry - City street or outdoor mapping with UAV / UAS and other types of drones or vehicles.

Broadcasting

Instant replays and rapid process capturing, e.g. golf club swings, ping pong, baseball, tennis, football, basketball and more.

Quality inspection

Flat panel display (FPD), photovoltaics, semiconductor wafer scanning, metrology, electronics measurement and assemblies.

Portable

Miniature and accurate robotic arms. Industrial and factory automation, machine vision, precision moldings, robotic welding.

LoLa

Ideal for low latency audio and visual streaming systems used in educational or presentation purposes around the globe.
