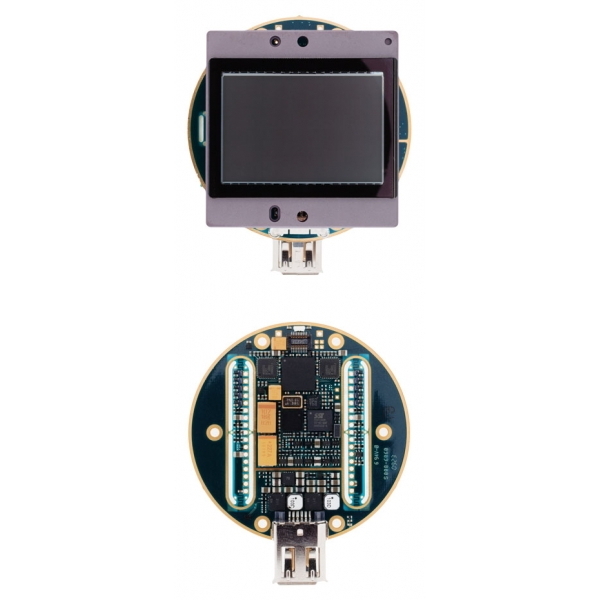

MR16000MU-BRD
Product statusDeprecated
Sensor vendoronsemi
Sensor modelKAI-16000
Sensor technologyCCD
Shutter typeGlobal shutter
Frame rate1.4 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
Specification
|
Sensor properties
|
||
| Resolution | 15.8 MPix | |
| Sensor resolution | 4872 x 3248 | |
| Sensor vendor | onsemi | |
| Sensor model | KAI-16000 | |
| Sensor type | Monochrome | |
| Sensor technology | CCD | |
| Sensor size | 35mm Full Frame | |
| Sensor active area | 36 x 24 mm | |
| Sensor diagonal | 43.3 mm | |
| Pixel size | 7.4 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 1.4 FPS | |
| Bits | 10, 12, 14 bits | |
| On-chip downsampling | 1x1, 2x2 | |
| Interface | Firewire | |
| Data interface speed | 0.75 Gbit/s | |
| Data connector type | FireWire IEEE 1394 | |
| GPIO count | Inputs: 1, Outputs: 1 | |
| Exposure minimum | 20 µs | |
| Exposure maximum | 0.5 s | |
| Power consumption | 6 Watt | |
| Heat dissipation | Natural convection | |
| Sensor cooling | No | |
|
EMVA 1288 results
|
||
| Dynamic range | 70 dB | |
| Full well Capacity | 30000 e- | |
| Readout noise | 10 e- | |

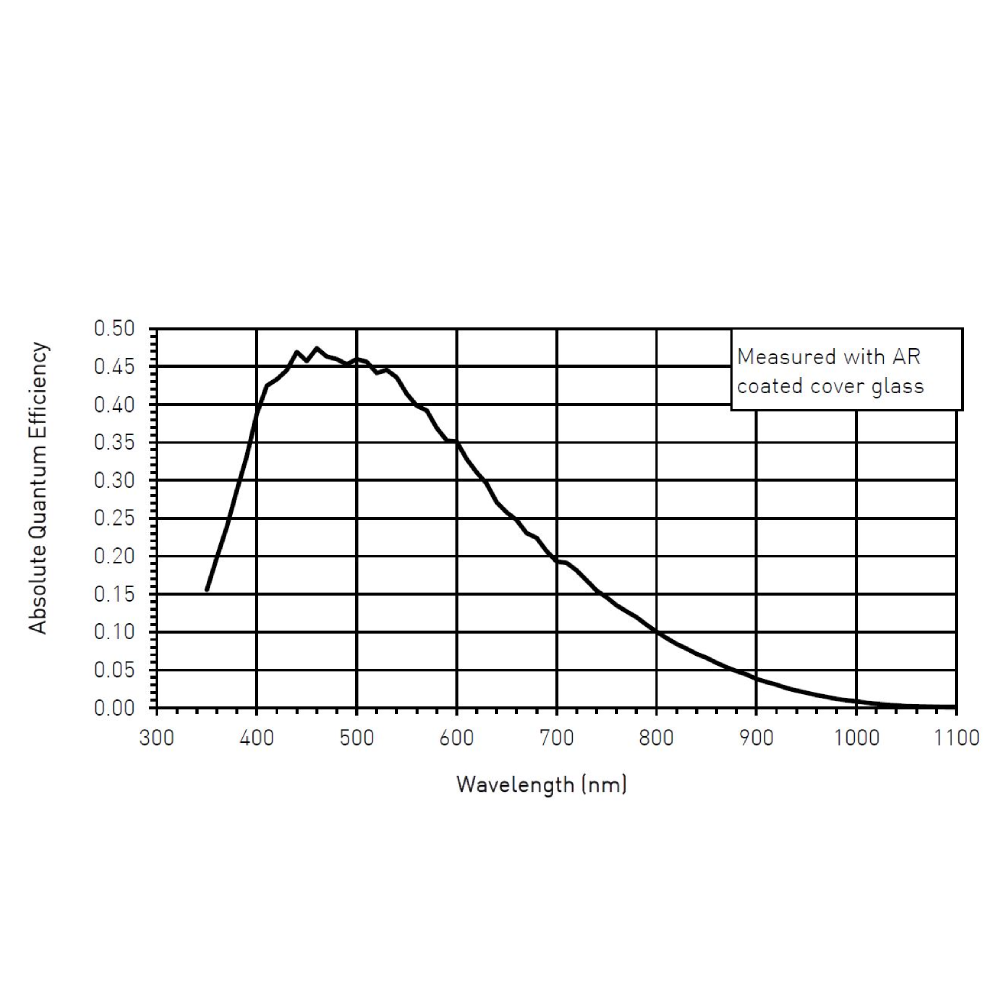

| Peak QE | 47% | |
| Gain analog max | 42 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | M50 x 0.75 mm | |
| Enclosure type | Board level | |
| Physical dimensions (WHD) | 63 x 63 x 40 mm | |
| Mass - weight | 170 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
