PRECISE
Utilizes Sony Pregius S™ sensors to their maximum potential. 16 Mpix IMX532, 20 Mpix IMX531, 24 Mpix IMX530.
MX161MG-SY-X4G3-FF

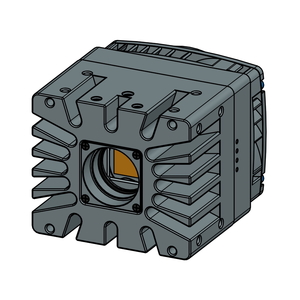

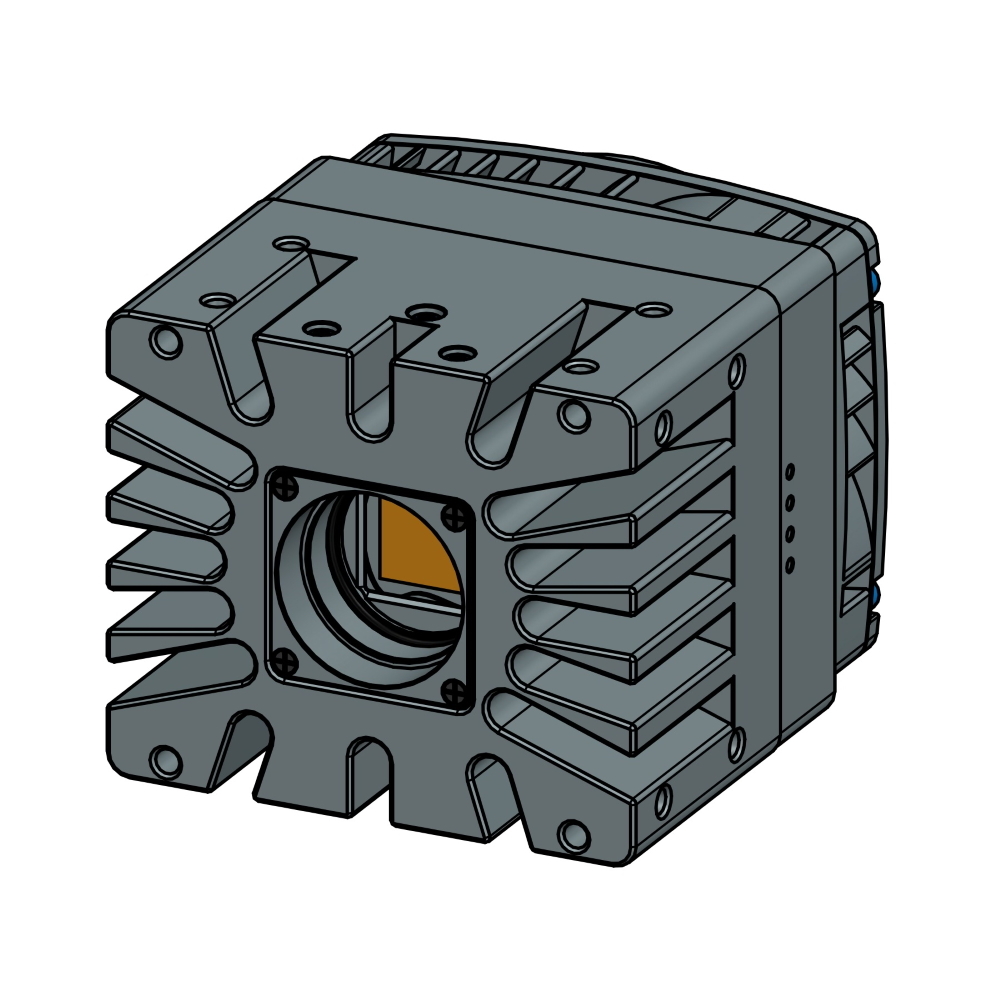

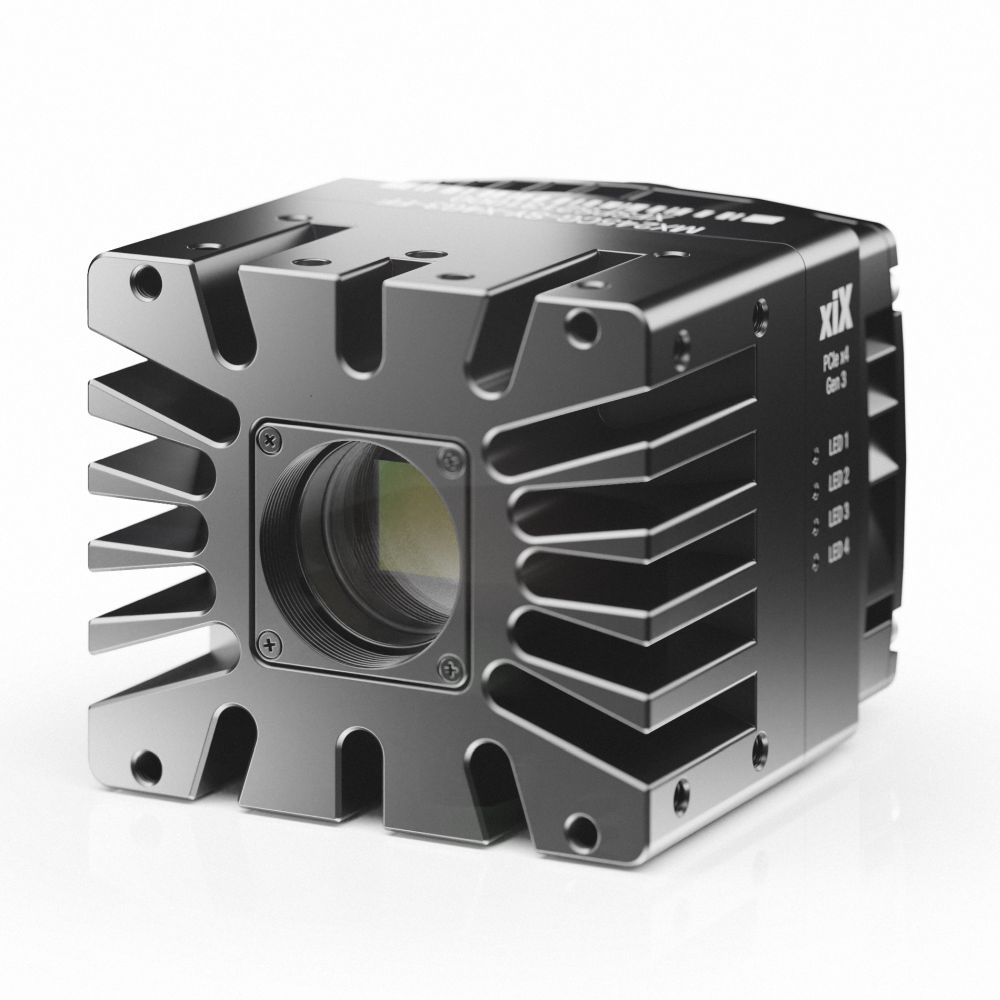

High speed HDR camera with 16.1 Mpix Monochrome SONY IMX532 sensor
Specifications
Product statusActive
Sensor vendorSONY
Sensor modelIMX532
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate160 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
FAST
PCIe connection for blazing speed at 32 Gbit/s. 16 Mpix at 158 FPS, 20 Mpix at 109 FPS, 24 Mpix at 100 FPS.
OMNIPRESENT
Built for maximum flexibility and with multi-camera setups in mind, ideal for photogrammetry and VR.
SMALLEST

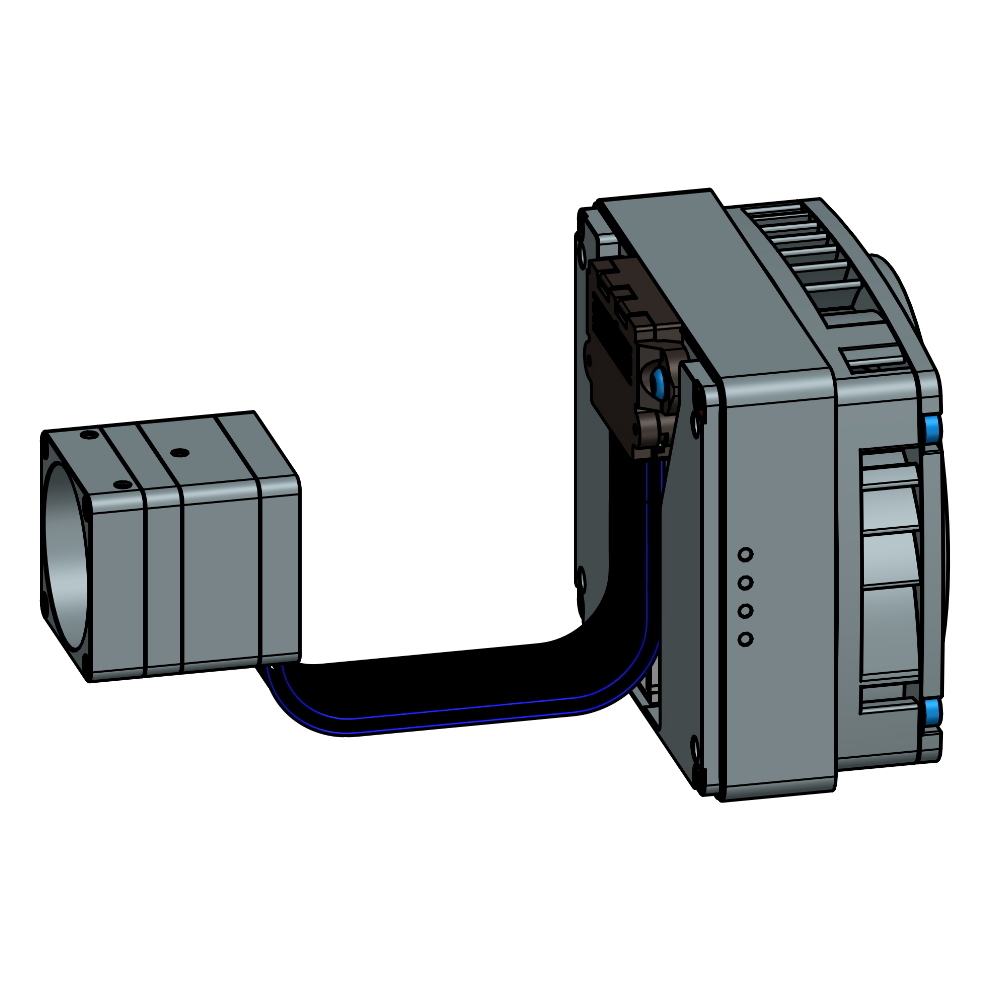

Huge performance in a small package. Removable head can be detached and allows the electronics with heat output to be placed away from sensitive locations.
|
Sensor properties
|
||
| Resolution | 16.1 MPix | |
| Sensor resolution | 5328 x 3040 | |
| Sensor vendor | SONY | |
| Sensor model | IMX532 | |
| Sensor type | Monochrome | |
| Sensor technology | CMOS | |
| Sensor size | 1.1" | |
| Sensor active area | 14 x 8.3 mm | |
| Sensor diagonal | 16.8 mm | |
| Pixel size | 2.74 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 160 FPS | |
| Bits | 8, 10, 12 bits | |
| On-chip downsampling | 2x2 | |
| On-chip decimation | 2x2 | |
| Interface | PCIe X4 Gen 3 | |
| Data interface speed | 32 Gbit/s | |
| Data connector type | PCIe-FireFly-X4G3 | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 5 µs | |
| Exposure maximum | 30 s | |
| Power consumption | 14.3 Watt | |
| Heat dissipation | Optional Heatsink, Fan air cooling | |
| Sensor cooling | No | |
| Special features | Dual ADC, Backside illumination | |
|
EMVA 1288 results
|
||
| Dynamic range | 72.62 dB | |
| Saturation Capacity | 9460 e- | |
| Readout noise | 1.7 e- | |
| Signal to noise ratio | 40.14 dB | |
| Peak QE | 86% 465nm | |
| Gain analog max | 24 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | C-mount | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 70 x 60 x 55 mm | |
| Mass - weight | 395 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
VR and AR
Virtual and augmented reality: 360 spherical Panorama, cyclorama imaging, 3D and Facial action coding scanning (FACS), High definition Motion capture.
Robotics
Accurate robotic arms, Deep learning tasks, Portable medical devices and Remotely controlled miniature robots, Alignment and assembly.
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor 3D mapping, Wide area motion imaging, stadium and border surveillance.
Broadcasting
Cinematography, Entertainment, Instant replays and rapid process capturing, e.g. golf, hockey, ping pong, baseball, tennis, football, basketball and more.
Portable
Autonomous, self-driving, Unmanned aerial vehicles (UAV) and Unmanned aircraft systems (UAS), Advanced driver assistance systems (ADAS), drones.
Quality inspection
Flat panel display (FPD), Printed circuit board (PCB) examination, Solar panel, Photovoltaics, Semiconductor wafer, Metrology, Print and Film scanning.
Variants
More flavors, more options: Explore alternative versions of the selected model.
Accessories
Use this section to find the right components and equipment for your camera model. All our standard accessories are tested and approved for quality, fit, and performance.
Links and downloads
Learn more about our camera families, and receive detailed specifications, technical guides, 3D models and drawings, as well as available software packages here.
