EOL - Sony ICX CCD sensors will be fully DISCONTINUED in 2025
Please check for substitutes with Sony Pregius 2nd, 3rd and 4th generation

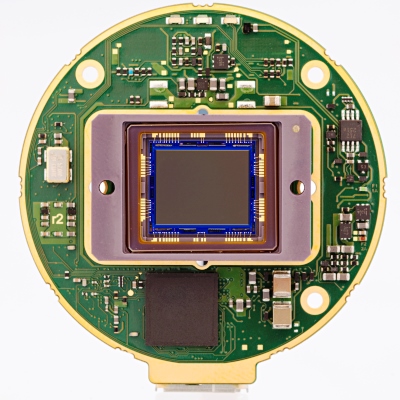

  • 6.1 Mpix Color Board Level camera. USB3 and Sony ICX694
  • Multi-Tap (Quad Tap) CCD readout from 4 channels allows fastest 28 Fps
Scientific quality camera with enhanced sensitivity and low readout noise for all branches of life and material science like:

Semiconductor wafer scanning, Flat panel inspection, printed circuit board (PCB) examination, Cell Biology, Astronomy, Medical, Microscopy, Ophthalmology and Retinal imaging, Pathology, Histology, Intelligent Traffic Systems, Fluorescence, Low light, Biometrics, Industrial Automation and others.


NOTE: Please check MOQ and other conditions apply that for this OEM product.

Last time buy date: June 30th, 2022
Last time ship date: December 31st, 2022





Support pages



Part Number MD061CU-SY-BRD
Resolution 6.1 Mpix 2758 x 2208 pixel
Frame rates 28 Fps
Sensor model SONY ICX694 AQG
Sensor type CCD RGB Color
Sensor size 16 mm
Sensor active area 12.5 x 10 mm
Readout method Global Shutter
Pixel size 4.54 µm
Digitization 8, 10, 12, 14 Bits
Data interface USB 3.0 Superspeed
Dynamic range 67.4 dB
Full Well Capacity 19 500 e-
On-chip binning Yes, up to 5x5
Readout noise typ. 8.9 e-
Signal to noise ratio 43.5 dB
Gain range 41 dB
Exposure range 54us - 974s
I/O Ports 2IN/2OUT
Power consumption 3.9 Watt
Dimensions WxHxD 51 x 54 mm
Trigger to exposure delay YES
