- Smallest dimensions: 26 x 26 x 30 mm, 32 grams
- 4.2 Mpix at 90 fps (up to 180 with xiX)
- With flat ribbon flex cable ideal for Embedded vision systems
- USB3 Vision Compliant

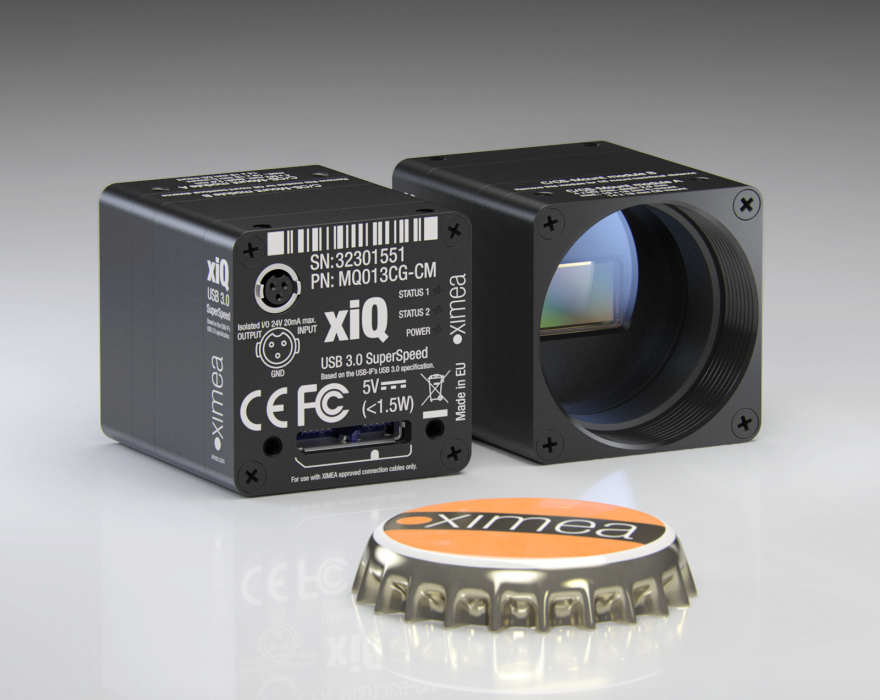

4.2 Megapixel Color CMOS Camera with USB 3.1 Interface.
These camera models are typically used in the following Applications:
In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testing, OCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics
xiQ camera series
Accessories
USB3 Zone
3D / 2D files
Manual
CONTACT SALES
Specifications: | |
| Part Number | MQ042CG-CM-S7 |
| Resolution | 4.2 MP 2048 × 2048 pixel |
| Frame rates | 90 fps |
| Sensor model | AMS CMOSIS CMV4000 |
| Chroma | Color |
| Sensor type | CMOS RGB Bayer Matrix |
| Sensor size | 1" |
| Sensor active area | 11.27 × 11.27 mm (Diagonal 15.9 mm) |
| Spectral range | 400 - 1000 nm |
| Readout method | Global shutter |
| Pixel size | 5.5 × 5.5 µm |
| Digitization | 8, 10, (12) |
| Data interface | USB 3.1 Gen1 |
| Dynamic range | 53 dB (HDR available) |
| Full Well Capacity | 7 500 e- |
| Readout noise typ. | 16 e- |
| Signal to noise ratio | 38 dB |
| Exposure range | 26µs to 1s |
| I/O Ports | GPIO IN, OUT |
| Power consumption | 1.5 Watt |
| Lens mount | C or CS Mount |
| Weight | 32 grams |
| Dimensions WxHxD | 26 x 26 x 30 mm |
