SMALL

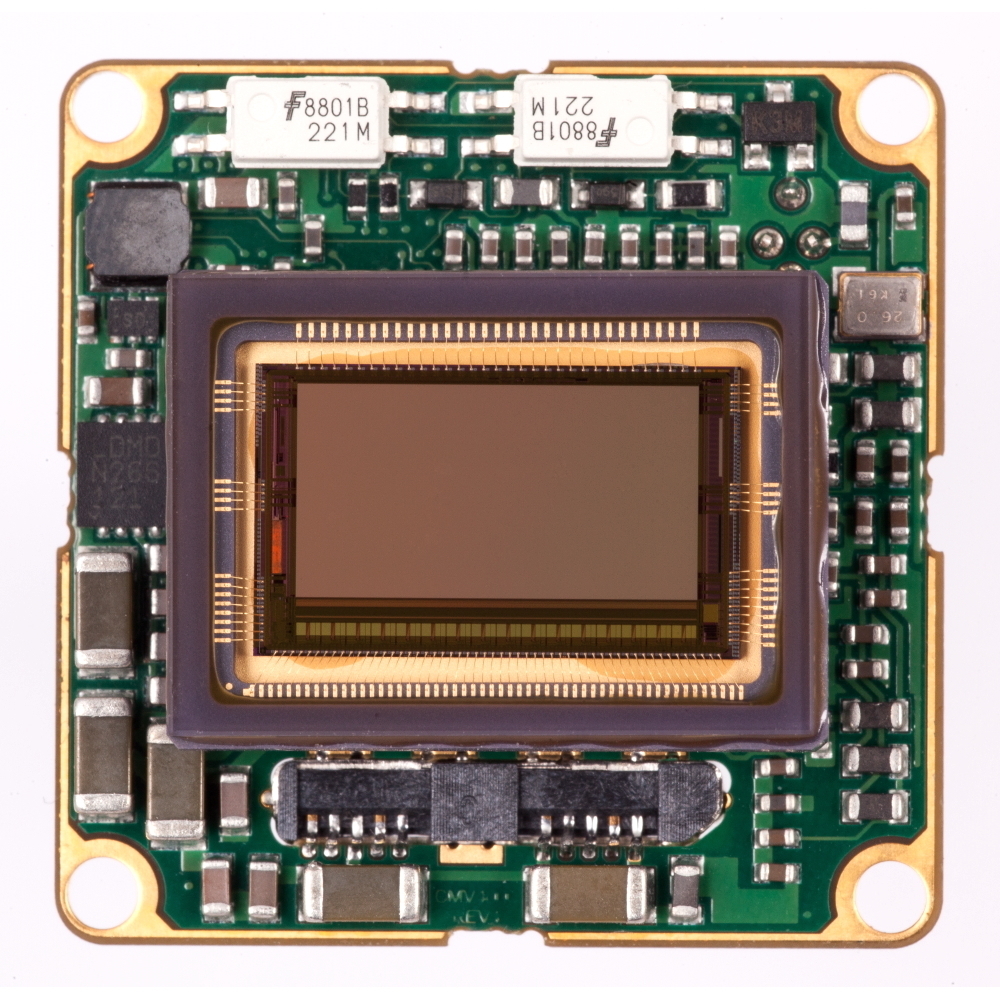

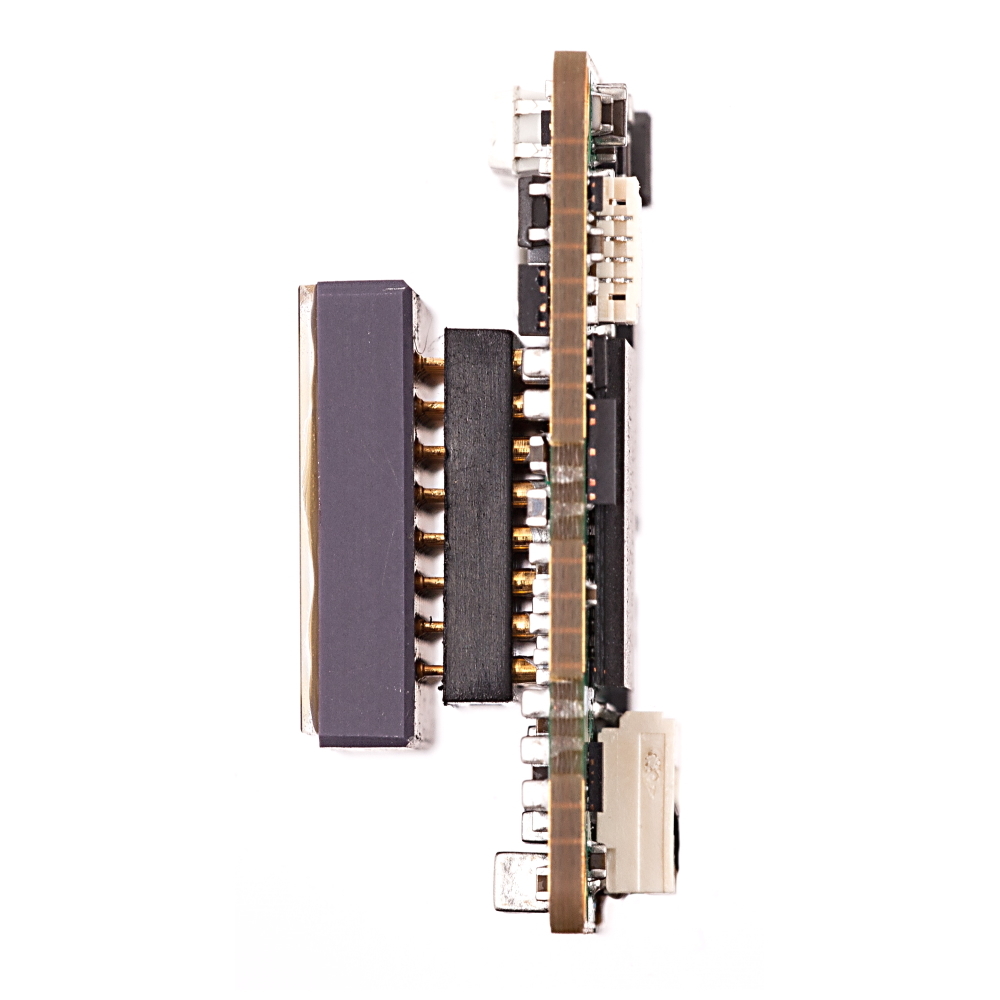

Only 26 x 26 mm small, single PC board electronics. Fits into places where other cameras can’t
MQ022RG-CM-S7-BRD
Industrial camera with 2.2 Mpix NIR CMOSIS CMV2000 Global shutter sensor and USB3 interface
Specifications
Product statusActive
Sensor vendorCMOSIS
Sensor modelCMV2000
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate169 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
FAST
SuperSpeed USB3. High speed, high frame rate: around 1000 FPS at VGA and 90 FPS at 4 Mpix resolutions
WIDE CHOICE
Global shutter CMOS sensors, up to 4.2 Mpix resolution, b/w, color and NIR extended. Available as Board level and with different connector types
RELIABLE
Designed for 24/7, 365 days operations throughout multiple years. Low TCO and fast ROI, easy integration into OEM solutions
|
Sensor properties
|
||
| Resolution | 2.2 MPix | |
| Sensor resolution | 2048 x 1088 | |
| Sensor vendor | CMOSIS | |
| Sensor model | CMV2000 | |
| Sensor type | NIR | |
| Sensor technology | CMOS | |
| Sensor size | 2/3" | |
| Sensor active area | 11 x 6 mm | |
| Sensor diagonal | 12.8 mm | |
| Pixel size | 5.5 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 169 FPS | |
| Bits | 10 bits | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |
| Data connector type | USB3 Micro-B | |
| GPIO count | Inputs: 1, Outputs: 1 | |
| Exposure minimum | 26 µs | |
| Exposure maximum | 1 s | |
| Power consumption | 1.55 Watt | |
| Heat dissipation | Optional Heatsink | |
| Sensor cooling | No | |
| Special features | NIR, HDR, Single board | |
|
EMVA 1288 results
|
||
| Dynamic range | 53.3 dB | |
| Full well Capacity | 13500 e- | |
| Saturation Capacity | 7474.3 e- | |
| Readout noise | 15.6 e- | |
| Signal to noise ratio | 38.0 dB | |
| Peak QE | 66% | |
| Gain analog max | 6 dB | |
| Spectral Range | 350 - 1050 nm | |
|
Mechanical properties
|
||
| Lens mount | No mount | |
| Enclosure type | Board level | |
| Physical dimensions (WHD) | 25.4 x 25.4 x 14.1 mm | |
| Mass - weight | 8 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
