MX022HG-IM-SM4X4-RN2-FL
Hyperspectral camera with 2.2 Mpix, 15 spectral bands, 600 - 860 nm range and PCIe X2 Gen 2 interface
Specifications
Product statusEnd of Life
Sensor vendorimec
Sensor modelCMV2K-SSM4x4-RNIR
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate338 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
RELIABLE
Sturdy full metal jacket housing, no wobbly sheet cover parts. Designed for 24/7 operations for years. Low TCO and fast ROI.
SMALLEST
With their small form factor of 26 x 26 mm and single PCB design, these cameras can fit into places where other hyperspectral cameras would not
LIGHTWEIGHT
Payload-friendly SWAP for mobile devices like robotic arms, UAV or drones. The camera weighs only 32 g
|
Sensor properties
|
||
| Resolution | 2.2 MPix | |
| Sensor resolution | 2048 x 1088 | |
| Sensor vendor | imec | |
| Sensor model | CMV2K-SSM4x4-RNIR | |
| Sensor type | HyperSpectral | |
| Sensor technology | CMOS | |
| Sensor size | 2/3" | |
| Sensor active area | 11 x 6 mm | |
| Sensor diagonal | 12.8 mm | |
| Pixel size | 5.5 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 338 FPS | |
| Bits | 10 bits | |
| Interface | PCIe X2 Gen 2 | |
| Data interface speed | 8 Gbit/s | |
| Data connector type | PCIe-Flex-X2G2 | |
| GPIO count | Inputs: 3, Outputs: 3 | |
| Exposure minimum | 25 µs | |
| Exposure maximum | 17 s | |
| Power consumption | 2.9 Watt | |
| Heat dissipation | Optional Heatsink | |
| Sensor cooling | No | |
|
EMVA 1288 results
|
||
| Full well Capacity | 13500 e- | |
| Gain analog max | 6 dB | |
| Spectral bands | 15 channels | |
| Spectral Range | 600 - 860 nm | |
|
Mechanical properties
|
||
| Lens mount | C-mount | |
| Enclosure type | Standard housing | |

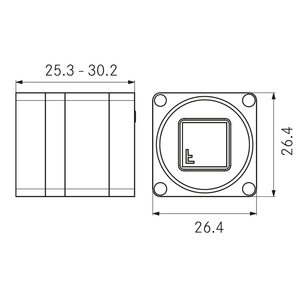

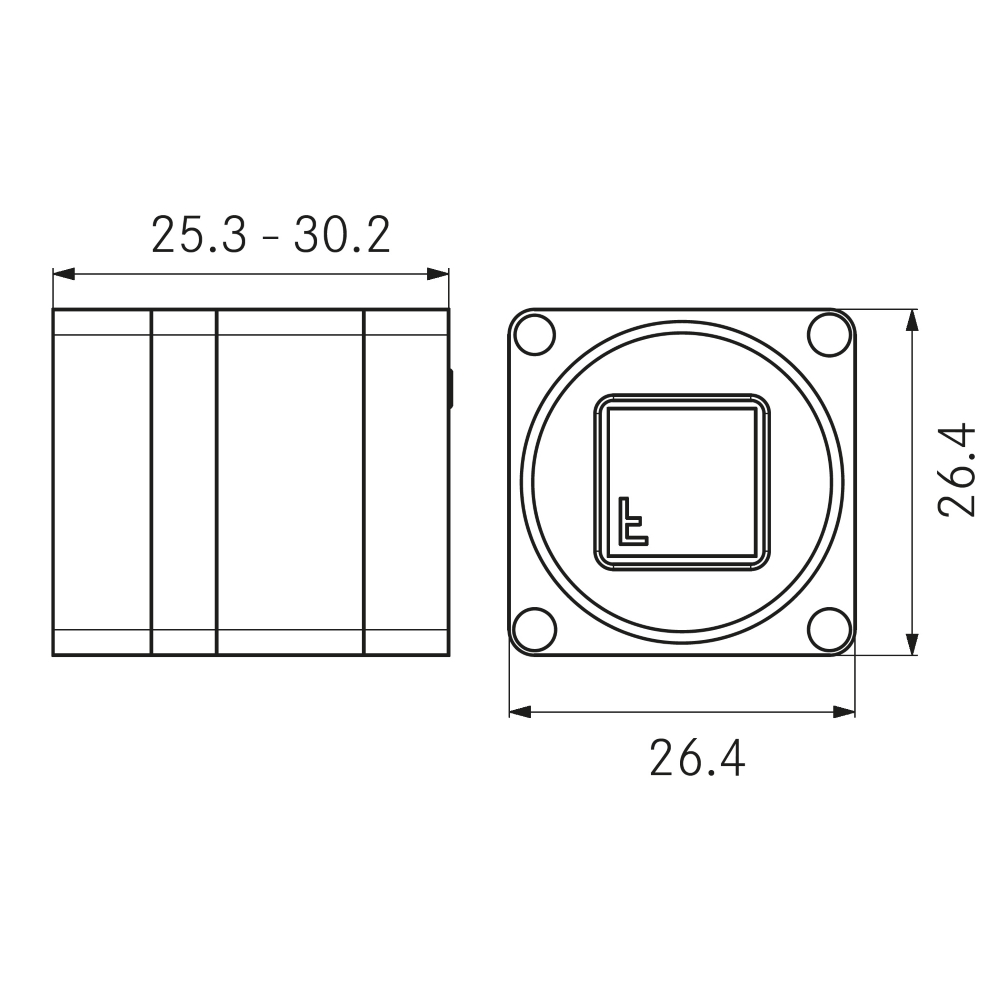

| Physical dimensions (WHD) | 26.4 x 26.4 x 30.9 mm | |
| Mass - weight | 30 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Remote sensing
Precision Agriculture / Farming, Terrestrial and Maritime earth observation, Archaeology, Environmental monitoring, Contamination detection, Security, Surveillance, UAV and drones
Scientific
Fluorescence, Photoluminescence,
Skin tones and tissue analysis, Cancer cells inspection, Space exploration, Astronomy, Spectroscopy, Forensics, Material and Life science microscopy
Medical
Ophthalmology, DNA sequencers and flow cytometers, Healthcare, Tumor detection, Cytogenetics, Medical imaging for endoscopy, Wound diagnostics, Biotechnology, Pathology
Optical sorting
Pharmaceutical, Waste recycling, Food safety and inspection (quality grading), Defect detection,
Art and Antiques Conservation,
Chemical analysis of material composition
