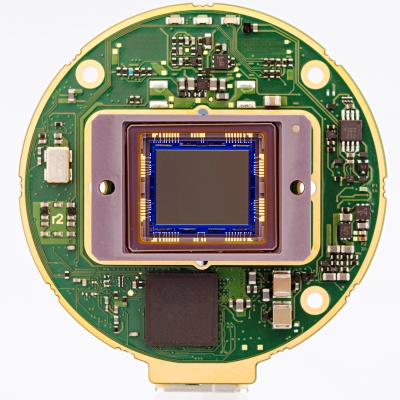

  • 9.1 Megapixel Color Board Level camera. USB3 and Sony ICX814
  • Multi-Tap (Quad Tap) CCD readout from 4 channels allows fastest 20 Fps
Scientific quality camera with enhanced sensitivity and low readout noise for all branches of life and material science like:

Semiconductor wafer scanning, Flat panel inspection, printed circuit board (PCB) examination, Cell Biology, Astronomy, Medical, Microscopy, Ophthalmology and Retinal imaging, Pathology, Histology, Intelligent Traffic Systems, Fluorescence, Low light, Biometrics, Industrial Automation and others.


NOTE: Please check MOQ and other conditions that apply for this OEM product.





Support pages



Resolution 9.1 Mpix 3380 x 2704 pixel
Sensor type CCD RGB Color
Sensor model SONY ICX814 AQG
Sensor size 16 mm
Sensor active area 12.5 x 10 mm
Pixel size 3.69 µm
Bits per pixel 8, 10, 12, 14 Bits
Readout noise typ. 6.4 e-
Dynamic range 64 dB
Signal to noise ratio 43 dB
Gain range 37 dB
Exposure range 54us - 1000s TBD
Frame rates 20 Fps
On-chip binning YES
Trigger to exposure delay YES
Image data interface USB 3.0 Superspeed
Data I/O 2IN/2OUT
Power requirements 4.2 Watt
Dimensions WxHxD 51 x 54 mm
Customs tariff code 8525.90 22
Last Updated: 21 March 2018, 20:41
