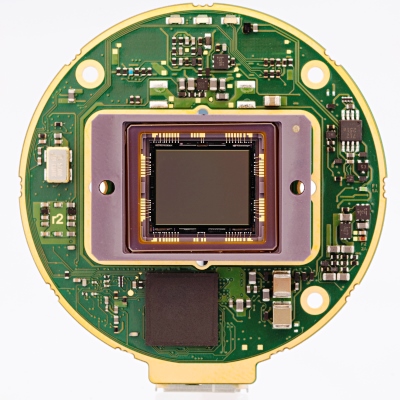

• 9.1 Megapixel Monochrome Board Level camera. USB3 and Sony ICX814
  • Multi-Tap (Quad Tap) CCD readout from 4 channels allows fastest 20 Fps
Scientific quality camera with enhanced sensitivity and low readout noise for all branches of life and material science like:

Semiconductor wafer scanning, Flat panel inspection, printed circuit board (PCB) examination, Cell Biology, Astronomy, Medical, Microscopy, Ophthalmology and Retinal imaging, Pathology, Histology, Intelligent Traffic Systems, Fluorescence, Low light, Biometrics, Industrial Automation and others.


NOTE: Please check MOQ and other conditions that apply for this OEM product.





Support pages



Part Number MD091MU-SY-BRD
Resolution 9.1 Mpix 3380 x 2704 pixel
Frame rates 20 Fps
Sensor type CCD B/W
Sensor model SONY ICX814 ALG
Sensor size 16 mm
Sensor active area 12.5 x 10 mm
Readout Method Global Shutter
Pixel size 3.69 µm
ADC -Bits per pixel 8, 10, 12, 14 Bits
Data interface USB 3.0 Superspeed
Dynamic range 64.5 dB
Full Well Capacity 12 000 e-
On-chip binning Yes, up to 5x5
Readout noise typ. 9.4 e-
Signal to noise ratio 43.0 dB
Gain range 37 dB
Exposure range 61us - 1177s
Data I/O 2IN/2OUT
Power consumption 3.9 Watt
Dimensions WxHxD 51 x 54 mm
Trigger to exposure delay YES
Customs tariff code 8525.90 22
