MQ013MG-E2

MQ013MG-E2

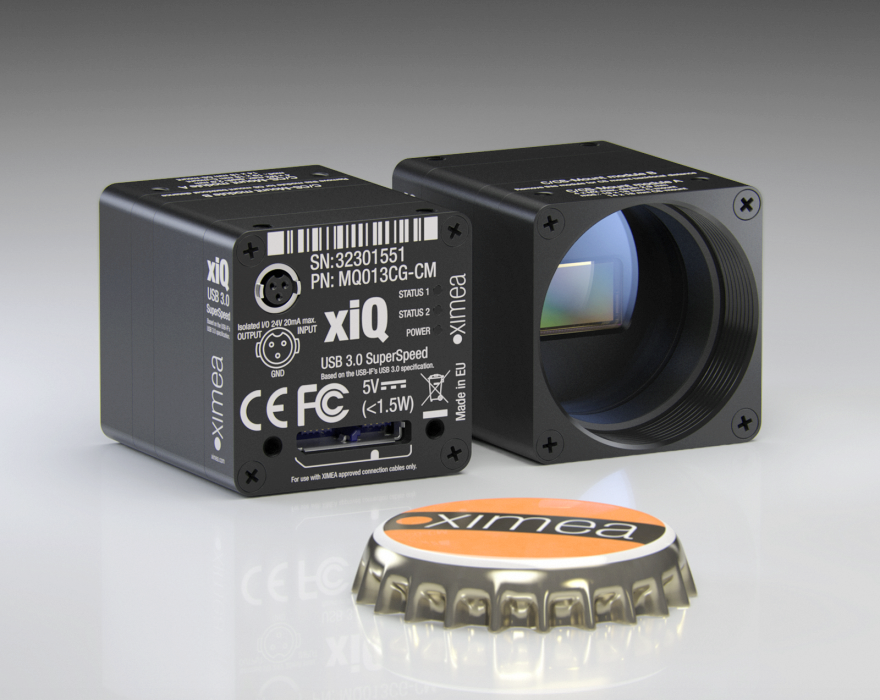

  • Smallest dimensions: 26 x 26 x 26 mm, 26 grams
  • 1.3 MP at 60 fps
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant



Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testing, OCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics



1.3 Megapixel Monochrome CMOS Camera with USB 3.0 Interface.

Check conditions for the model version with Angled connector.

Brochure



Accessories



USB3 Zone



Manual



CONTACT SALES


Specifications:
Resolution 1.3 MP 1280 × 1024 pixels
Frame rates 60 fps
Sensor type CMOS Matrix B/W
Sensor model e2V EV76C560 ABT-EQV
Sensor size 1/1.8"
Sensor active area 6.9 × 5.5 mm (Diagonal 8.7 mm)
Readout Method Global Shutter
Pixel size 5.3 µm
ADC -Bits per pixel 8, 10
Data interface USB 3.1 Gen1
Dynamic range 60 dB
Full Well Capacity 12 000 e-
On-chip binning 1x1, 2x2
Exposure range 15.625µs to 1sec, in steps of 15.625µs
Data I/O GPIO IN, OUT
Power consumption 0.9 Watt
Lens mount C or CS Mount
Weight 26 grams
Dimensions WxHxD 26 x 26 x 26 mm
Operating temperature 50 °C
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
Last Updated: 15 February 2019, 21:09
