Products Board Level camera modules - whole range CMOSIS CMV4000 USB3 color board level camera

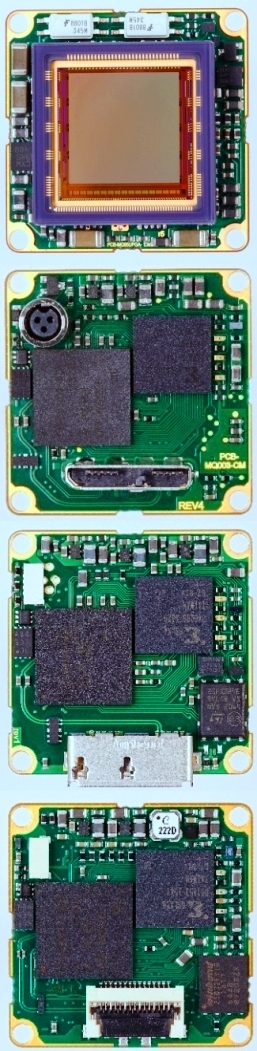

CMOSIS CMV4000 USB3 color board level camera

CMOSIS CMV4000 USB3 color board level camera
  • Smallest dimensions: 26 x 26 mm, 8 grams
  • 4.2 Mpix at 90 fps (up to 180 with xiX)
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant



4.2 Megapixel Color CMOS Camera with USB 3.1 Interface. Board level



Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testingOCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics



NOTE: Please check MOQ and other conditions for various connector options



xiQ camera series



Accessories



3D Step files




Manual



CONTACT SALES




Specifications:
Part Number MQ042CG-CM-S7-BRD
Resolution 4.2 MP 2048 × 2048 pixel
Frame rates 90 fps
Sensor model AMS CMOSIS CMV4000
Chroma Color
Sensor type CMOS RGB Bayer Matrix
Sensor size 1"
Sensor active area 11.27 × 11.27 mm (Diagonal 15.9 mm)
Spectral range 400 - 1000 nm
Readout method Global shutter
Pixel size 5.5 × 5.5 µm
Digitization 8, 10, (12*)
Data interface USB 3.1 Gen1
Dynamic range 60 dB (HDR available)
Full Well Capacity 13 500 e-
Readout noise typ. 13 e-
Signal to noise ratio 41 dB
Exposure range 26µs to 1s
I/O Ports GPIO IN, OUT
Power consumption 1.6 Watt
Weight 6 grams
Dimensions WxHxD 26 x 26 mm
