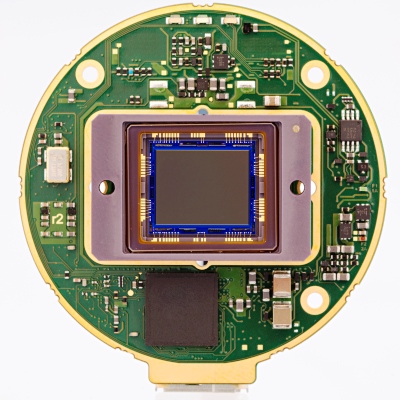

  • 12 Megapixel Color Board Level camera. USB3 and Sony ICX834
  • Multi-Tap (Quad Tap) CCD readout from 4 channels allows fastest 15 Fps
Scientific quality camera with enhanced sensitivity and low readout noise for all branches of life and material science like:

Semiconductor wafer scanning, Flat panel inspection, printed circuit board (PCB) examination, Cell Biology, Astronomy, Medical, Microscopy, Ophthalmology and Retinal imaging, Pathology, Histology, Intelligent Traffic Systems, Fluorescence, Low light, Biometrics, Industrial Automation and others.


NOTE: Please check MOQ and other conditions that apply for this OEM product.





Support pages



Resolution 12 Mpix 4242 x 2830 pixel
Sensor type CCD RGB Color
Sensor model SONY ICX834 AQG
Sensor size 16 mm
Sensor active area 13.2 x 8.8 mm
Pixel size 3.1 µm
Bits per pixel 8, 10, 12, 14 Bits
Readout noise typ. 7.8 e-
Dynamic range 58 dB
Signal to noise ratio 41 dB
Gain range 36 dB
Exposure range 60us - 1500s TBD
Frame rates 15 Fps
On-chip binning YES
Trigger to exposure delay YES
Image data interface USB 3.0 Superspeed
Data I/O 2IN/2OUT
Power requirements 4.9 Watt (typically*)
Dimensions WxHxD 51 x 54 mm
Customs tariff code 8525.90 22
