MD061CU-SY-BRD

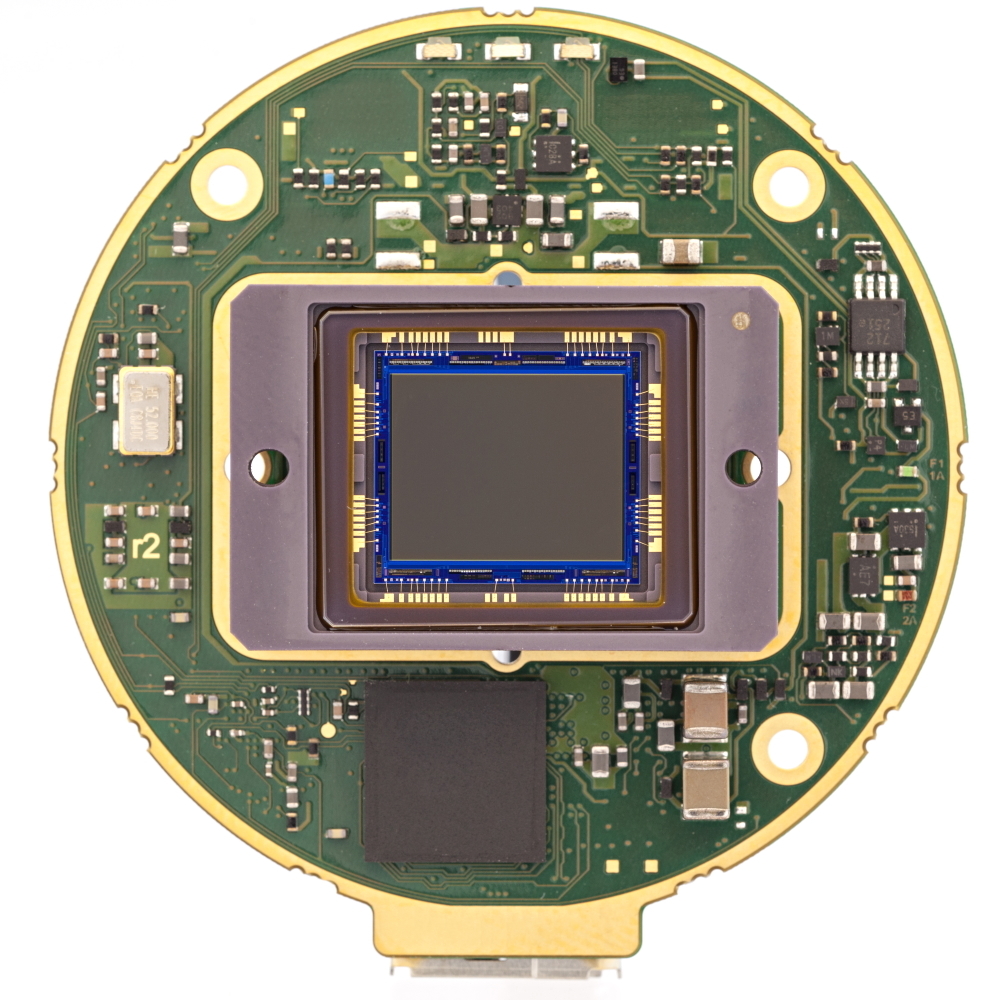

Scientific camera with 6 Mpix Color SONY ICX694 CCD sensor and USB3 interface

Product statusDeprecated
Sensor vendorSONY
Sensor modelICX694
Sensor technologyCCD
Shutter typeGlobal shutter
Frame rate28 FPS
Get a quote
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
PRECISE
Sony sensors with EXview HAD CCD II deliver high resolution images
PERFORMANCE
Utilization of full speed potential through 4tap (QuadTap) readout mode
CRYSTAL CLEAR
Low readout noise, high Dynamic range 14 bits/pixel images in all modes
SENSITIVE
Improved light efficiency enhanced in the near-infrared quantum spectrum
Specification
Sensor properties
Resolution 6 MPix
Sensor resolution 2752 x 2202
Sensor vendor SONY
Sensor model ICX694
Sensor type Color
Sensor technology CCD
Sensor size 1"
Sensor active area 12 x 10 mm
Sensor diagonal 16 mm
Pixel size 4.54 µm
Shutter type Global shutter
Camera properties
Frame rate 28 FPS
Bits 14 bits
On-chip downsampling 1x1, 2x2, 3x3, 4x4, 5x5
Interface USB3
Data interface speed 5 Gbit/s
Data connector type USB3 Micro-B
GPIO count Inputs: 2, Outputs: 2
Exposure minimum 54 µs
Exposure maximum 974.4 s
Power consumption 4.1 Watt
Heat dissipation Optional Heatsink
Sensor cooling No
EMVA 1288 results
Dynamic range 67.4 dB
Saturation Capacity 19500 e-
Readout noise 8.9 e-
Signal to noise ratio 43.5 dB
Peak QE red 50% 610nm
Peak QE green 59% 530nm
Peak QE blue 51% 450nm
Gain analog max 39 dB
Spectral Range 400 - 1000 nm
Mechanical properties
Lens mount No mount
Enclosure type Board level
Physical dimensions (WHD) 50.8 x 54 x 11.25 mm
Mass - weight 16.1 gram
Ambient operating temperature 0 - 50 °C
Storage Temperature -25 - 60 °C

Feature set for xiD family

Technology


Sensor technology CCD, Global shutter
Acquisition modes Continuous, software and hardware trigger, fps, triggered exposure and burst
Digital Output 8, 10, 12 and 14 bit RAW pixel data digitization
USB3 Interface USB 3.0 standard Micro-B with screw lock threads
General purpose I/O 1x opto-isolated input, 1x opto-isolated output, 1x magnetically insulated input and 1x magnetically isolated output, 3X user configurable LEDs
Synchronization Hardware and software trigger input, exposure strobe output, busy output
Power requirements Bus powered via USB3 interface or additional power cable
Lens mount Standard C mount. Available options are board level

Processing


Partial image readout ROI / AOI (region / area of interest); Binning modes supported up to binning 5x5
Image processing Host based de-Bayering; sharpening; Gamma; color matrix; true color CMS; lookup table (LUT); hue; saturation; sharpness; white balance
Hot pixel correction On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments Auto white balance; auto gain; auto exposure
Flat field corrections Host assisted pixel level shading and lens corrections
Signal conditioning Programmable debouncing time

Software


SDK / API Programmable with C++ and C#, Python
Software support one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs CamTool viewer
Firmware updates Field firmware update through xiCOP tool

Computer


Operating systems Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS 10.8 and newer
Minimum host hardware Intel i3 3.0GHz, +2GB RAM memory, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter

Regulations


Environment side Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed
