SMALL

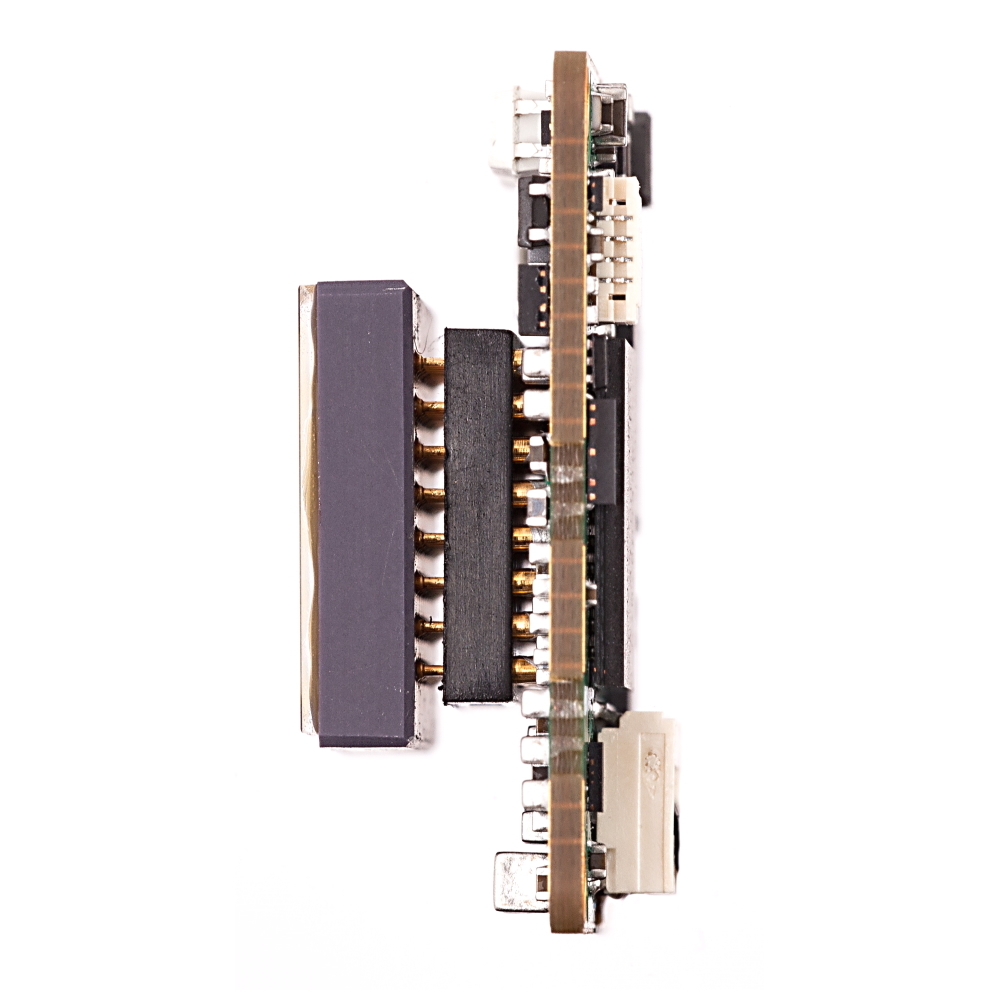

Only 26 x 26 mm small, single PC board electronics. Fits into places where other cameras can’t

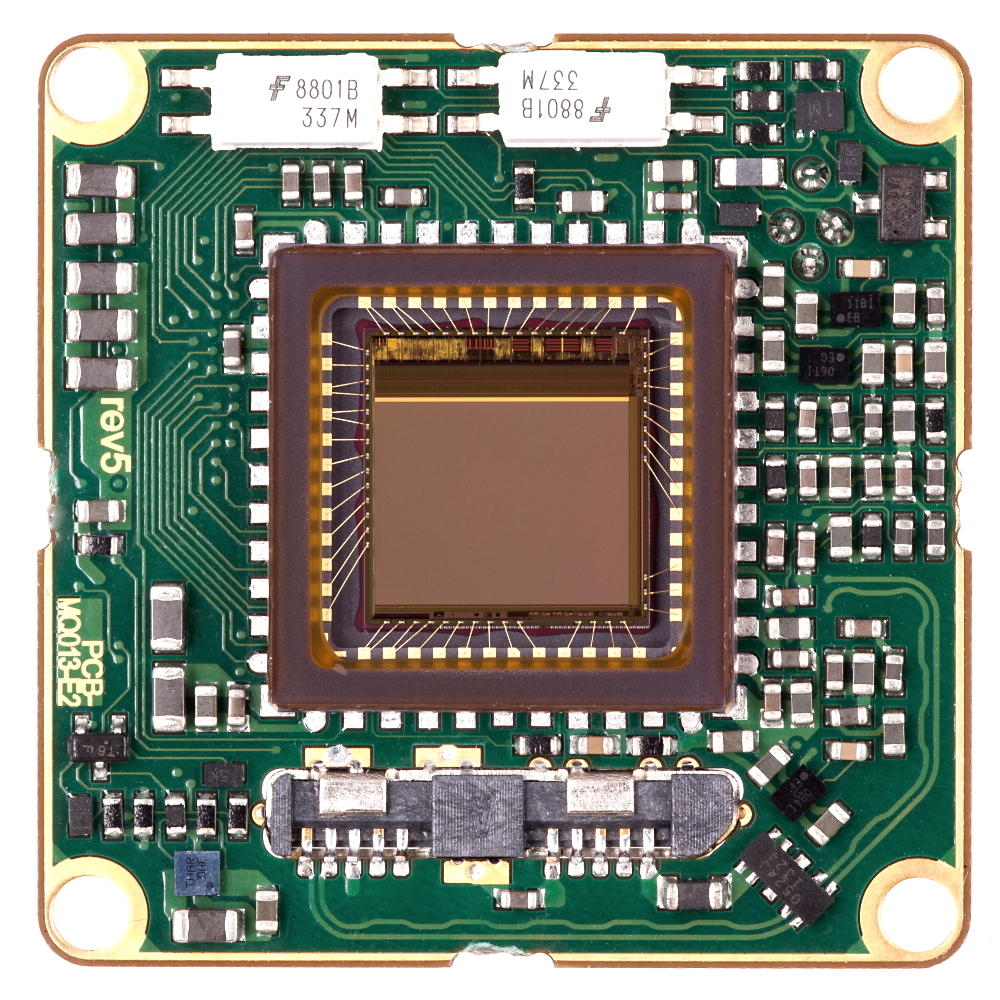

MQ013RG-E2-S7-BRD
Industrial camera with 1.3 Mpix NIR e2v EV76C661 Global shutter sensor and USB3 interface
Specifications
Product statusActive
Sensor vendore2v
Sensor modelEV76C661
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate61 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
FAST
SuperSpeed USB3. High speed, high frame rate: around 1000 FPS at VGA and 90 FPS at 4 Mpix resolutions
WIDE CHOICE
Global shutter CMOS sensors, up to 4.2 Mpix resolution, b/w, color and NIR extended. Available as Board level and with different connector types
RELIABLE
Designed for 24/7, 365 days operations throughout multiple years. Low TCO and fast ROI, easy integration into OEM solutions
|
Sensor properties
|
||
| Resolution | 1.3 MPix | |
| Sensor resolution | 1280 x 1024 | |
| Sensor vendor | e2v | |
| Sensor model | EV76C661 | |
| Sensor type | NIR | |
| Sensor technology | CMOS | |
| Sensor size | 1/1.8" | |
| Sensor active area | 6.8 x 5.4 mm | |
| Sensor diagonal | 8.7 mm | |
| Pixel size | 5.3 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 61 FPS | |
| Bits | 10 bits | |
| On-chip downsampling | 1x1, 2x2 | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |
| Data connector type | USB3 Micro-B | |
| GPIO count | Inputs: 1, Outputs: 1 | |
| Exposure minimum | 100 µs | |
| Exposure maximum | 1 s | |
| Power consumption | 0.98 Watt | |
| Heat dissipation | Optional Heatsink | |
| Sensor cooling | No | |
| Special features | Single board | |
|
EMVA 1288 results
|
||
| Dynamic range | 50.2 dB | |
| Full well Capacity | 8400 e- | |
| Saturation Capacity | 7892.5 e- | |
| Readout noise | 23.7 e- | |
| Signal to noise ratio | 38.8 dB | |
| Peak QE | 68% | |
| Gain analog max | 18 dB | |
| Spectral Range | 350 - 1050 nm | |
|
Mechanical properties
|
||
| Lens mount | No mount | |
| Enclosure type | Board level | |
| Physical dimensions (WHD) | 25.4 x 25.4 x 9.7 mm | |
| Mass - weight | 7 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Ultra-fast scanning
3D and FACS scanning. Face recognition, Eye Tracking, Body scanner, People counting. Wide area motion imaging and surveillance.
VR and AR
Virtual and augmented reality. High definition Motion capture, 360 Panorama, HMC - head mounted camera. Cinematography and Entertainment.
Medical and Scientific
Medical imaging, Ophthalmology, Histology and Retinal imaging, Material and Life science microscopy (IR-DIC), Biometrics and Cell biology.
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor mapping with UAV / UAS and other types of drones or autonomous vehicles.
Broadcasting
Instant replays and rapid process capturing, e.g. golf club swings, ping pong, baseball, tennis, football, hockey, basketball and more.
Quality inspection
Flat panel display (FPD), Photovoltaics, Photolithography, Semiconductor wafer scanning, Metrology, Electronics measurement and assemblies.
Portable
Miniature and accurate robotic arms. Industrial and Factory Automation, Machine Vision, Precision Moldings, Robotic Welding.
LoLa
Ideal for Low Latency audio and visual streaming systems used in educational or presentation purposes around the globe.
