Why PCI Express


Because of:


NEW OLD WAY

The next generation of high-speed serial computer expansion bus standard PCI Express (Peripheral Component Interconnect Express), Gen3 called PCIe 3.0 made a huge jump in many aspects compared to Gen2 also called PCIe 2.0.
Few examples:
Total Bandwidth (x16 link): PCIe 3.0 = 64 Gbit/s ---- PCIe 2.0 = 16 GBit/s
Data Transfer Rate: PCIe 3.0 = 8.0 GT/s ---- PCIe 2.0= 5.0 GT/s
Data Rate: PCIe 3.0 = 1000MB/s ---- PCIe 2.0 = 500MB/s
Base Clock Speed: PCIe 3.0 = 8.0 GHz ---- PCIe 2.0 = 5.0GHz

XIMEA: To underline the advancements we use only the most modern sensors together with top notch components (like FPGA) for our line of cameras taking full potential of the sophisticated technology.
That means high-resolution CMOSIS sensors and other fast speed CMOS which have big pixels and are all equipped with Global shutters.


SUPPORT

The predecessor of PCI 3.0 being immensely popular provides a platform of support and acceptance which is easy to build on.
Vendors of hardware and software are ready to provide all necessary solutions to progress the utilization of the interface.
Motherboards, chipsets, host controllers, cables or operational systems – everyone is on board.
This also ensures easy switch from PCI 2.0 and other interfaces to PCI 3.0.

XIMEA: PCI 3.0 provides further benefits which create leverage in the community to push for better conditions and reliability. Therefore being a member of PCI-SIG (Peripheral Component Interconnect Special Interest Group) XIMEA strives to ensure the widest interoperability of PCI 3.0 cameras with accessories, libraries, Windows, Linux, macOS and compliance to PCI Express Standard.


SPEED

Among other improvements, PCI 3.0 achieves multiplication of PCIe 2.0 communication speeds through various architecture and protocol management optimization, with a theoretical transfer rate of 64 Gbit/s.
The effective bandwidth is around 7000 MByte/s which is up to 17 times faster than USB3, 7x than 10GigE and even faster than Camera Link HS or CoaXPress.
A successor is under way called PCI 4.0, which will provide up to twice the speed thus easily surpassing anything on the market.

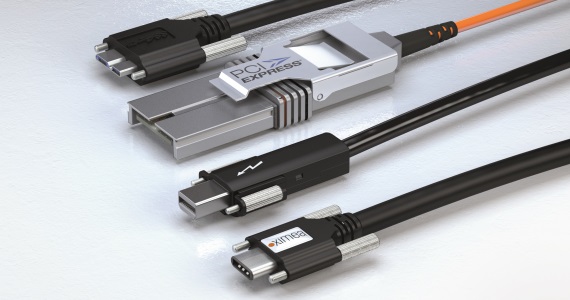

All this speed requires appropriate hardware – chipset, motherboard, host adapter, cables and you can learn more about it HERE.

XIMEA: In regards to speed we push the pedal to the limit having the fastest 12 Mpix camera model that streams 333 fps at full resolution.
Where others claim to have incredible speed with 2Mpix at 141/340 fps, XIMEA delivers 2500+ fps or 3500+ fps with 1 Mpix.


SIZE

PCIe technology due to mentioned popularity and modernization factors also allows to use new, smaller components (FPGA) and one device needs fewer of such already small components overall.
This results, besides other benefits, in a more compact size of footprint and of course also lighter weight which are parameters important in mobile applications and miniaturization trend.
Affected are also accessories like lenses or cables that are getting smaller as well, making it easier to design robust applications and sturdy housings or enclosures.
Size is further reduced by removing the need of intermediary equipment like for example Frame grabbers – you can forget about them for good.

XIMEA: Where you need small size, XIMEA is your extreme measure. Last resort when everyone else is too big – currently oriented on Embedded vision systems and Deep Learning.
We produce the smallest fast speed cameras worldwide (60x60x38 mm, 175g) and are able to provide special OEM customization services which would reduce the footprint and increase robustness further.


PRICE

In summary, each of the mentioned factors helps to reduce the cost of the final product, but customer’s savings with switching to PCIe will not stop with the camera.
Removing the Frame grabber and unnecessary software intensifies the payoff process which continues with using of fewer cheaper cables as well as new, cost effective EF-mount active lenses.
Add to the equation the simplified Integration efforts and DMA (Direct Memory Access) architecture and you realize the full range of overall system cost reduction.
While doing such calculations you need to keep in mind a given - that initially price of PCI 3.0 camera is lower than equivalent competitive CoaXPress or CameraLink models.

XIMEA: Another simple truth is that price is certainly not everything and sometimes cheap is too cheap, which is why XIMEA is not interested to engage in price wars.
This being said, we always try to help smaller startups and advice different OEM companies regarding optimal options and reliable solutions. Just ask our


MISCELLANEOUS

  • An important feature of PCIe is an exceptional support for multiplexing cameras and then streaming at full speed over a single cable – for example 24x 12 Mpix models aggregated on a switch and transferring data seamlessly over a single PCIe 64Gbps optical link directly to the computer memory.
  • Not to neglect is also the factor of CPU usage - the CPU load needed to transport this huge amount of data is just a few percent. Basically, all transfer is done via DMA (Direct Memory Access) without any CPU interaction involved. The CPU is needed in a very limited degree only for serving the interrupts (e.g. new frame arrived) and fetching the addresses for the new frames.
  • Latency of PCIe is also lower than for example that of 10GigE just by definition – because 10GigE is sitting on PCIe as an additional chip in the chain (e.g. x550 by Intel or some IC by Mellanox or Broadcom). Of course, the latency depends on many factors as well as on what you are actually measuring. If the OS and software latencies are involved, then obviously it can be high, but on PCIe hardware level, the typical latencies for data to transfer are at micro-seconds (μs) range. For example, in the case of PCIe switch, the latency between data coming into the switch and leaving on the other end is claimed by Broadcom to be below 150ns.
  • Last, but certainly not the least is the PCI Express Standard compliance that ensures compatibility and reliability of all components aiding in infrastructure design.

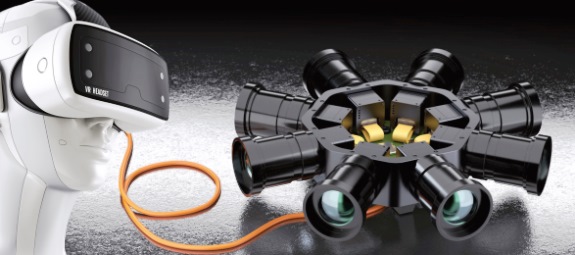

There are many new applications where PCI 3.0 can and will be used because of its advantages like compact size and suitability for multiple camera setups and embedded vision or the possibility of GPU compression.
In fields like 360 panorama, Aerial or city mapping, Sports or Entertainment broadcast, Autonomous vehicles or Solar panel inspection.


Why PCI Express ? Because XIMEA
