PRECISE
Sony sensors with EXview HAD CCD II deliver high resolution images

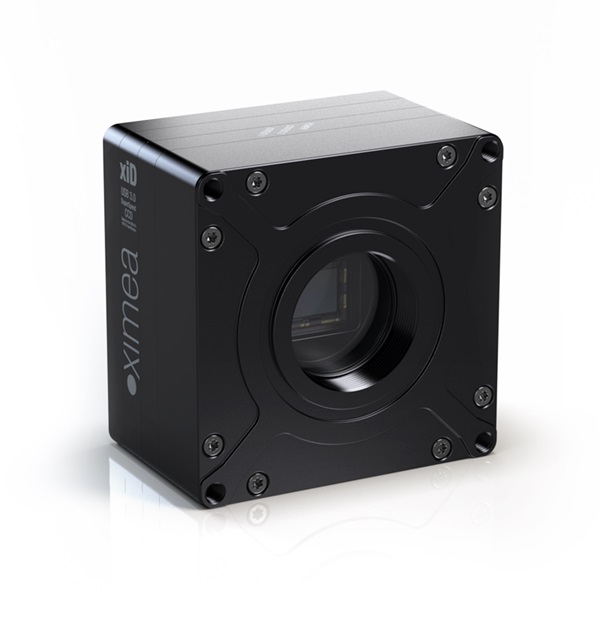

MD091MU-SY
Scientific camera with 9.1 Mpix Monochrome SONY ICX814 CCD sensor and USB3 interface
Specifications
Product statusDecline
Sensor vendorSONY
Sensor modelICX814
Sensor technologyCCD
Shutter typeGlobal shutter
Frame rate19.5 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
|
Sensor properties
|
||
| Resolution | 9.1 MPix | |
| Sensor resolution | 3384 x 2708 | |
| Sensor vendor | SONY | |
| Sensor model | ICX814 | |
| Sensor type | Monochrome | |
| Sensor technology | CCD | |
| Sensor size | 1" | |
| Sensor active area | 12 x 10 mm | |
| Sensor diagonal | 16 mm | |
| Pixel size | 3.69 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 19.5 FPS | |
| Bits | 14 bits | |
| On-chip downsampling | 1x1, 2x2, 3x3, 4x4, 5x5 | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |
| Data connector type | USB3 Micro-B | |
| GPIO count | Inputs: 2, Outputs: 2 | |
| Exposure minimum | 61 µs | |
| Exposure maximum | 1177 s | |
| Power consumption | 4.6 Watt | |
| Heat dissipation | Natural convection | |
| Sensor cooling | No | |
|
EMVA 1288 results
|
||
| Dynamic range | 64.5 dB | |
| Full well Capacity | 12000 e- | |
| Readout noise | 9.4 e- | |
| Signal to noise ratio | 43.0 dB | |
| Peak QE | 78% | |
| Gain analog max | 36 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | C-mount | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 60 x 60 x 37.2 mm | |
| Mass - weight | 320 gram | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
Medical imaging
Pharmaceutics and Healthcare, Dentistry, Dermatology, Ophthalmology and Retinal imaging, Histology, Pathology, Biomedicine, Cell biology.
Life and material science
Astronomy and Astrography, Biometrics, Light Microscopy (IR-DIC), Low light, Laser beam profiling, Holography, Laser profiling, Fluorescence.
Traffic
Intelligent Transportations Systems (ITS), Open road tolling and Traffic monitoring
ANPR / ALPR, Railway and Truck applications.
Aerial mapping
Photogrammetry, Videogrammetry - city street or outdoor mapping with UAV / UAS and other types of drones or autonomous vehicles.
Machine vision
Industrial Automation, Robotic Welding, Print and Film scanning, Gauging, Metrology, Sorting, Electronics assemblies bonding scanning.
Quality inspection
Flat panel display (FPD), Photovoltaics, Photolithography, Semiconductor wafer scanning, Metrology, Electronics measurement and assemblies.
