Products Cameras filtered by resolution and sensors CMOSIS CMV4000 NIR USB3 industrial camera

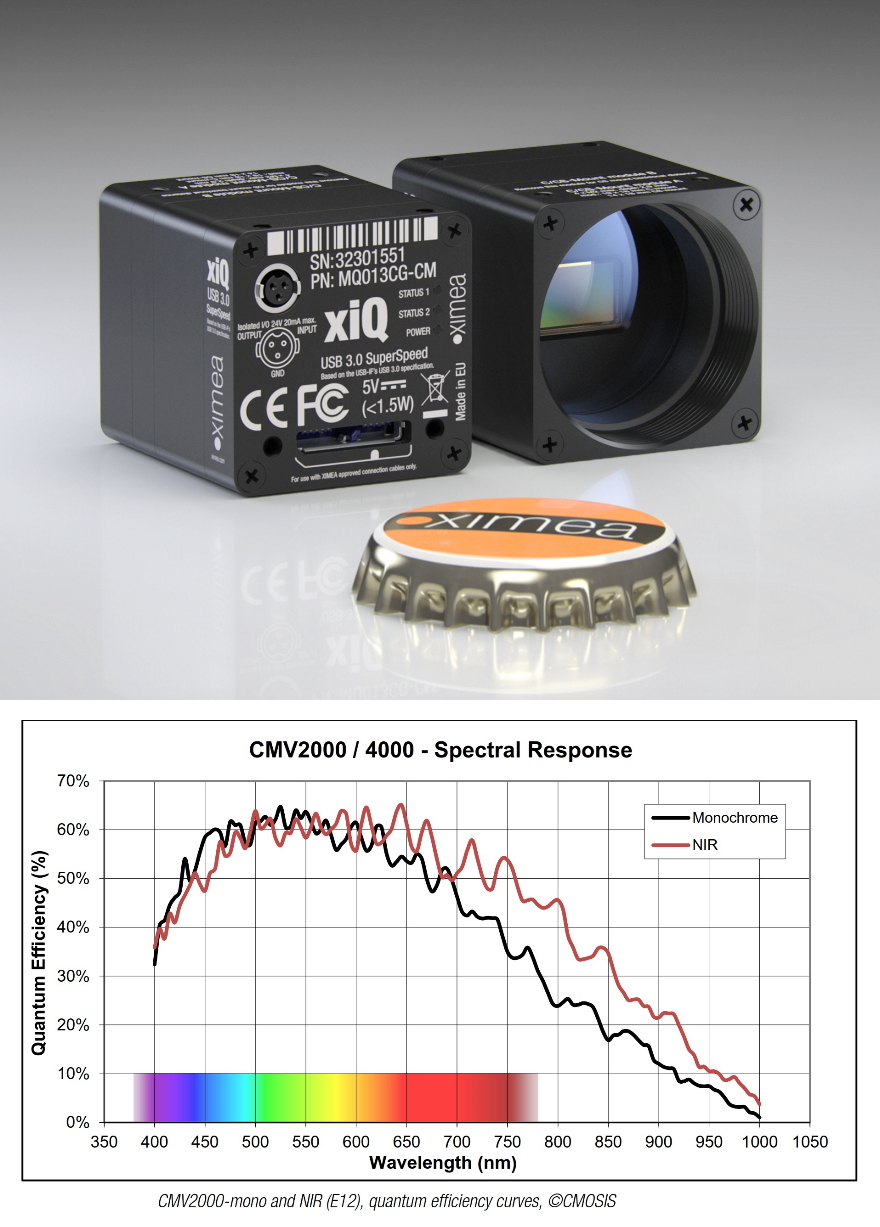

CMOSIS CMV4000 NIR USB3 industrial camera

CMOSIS CMV4000 NIR USB3 industrial camera
  • Smallest dimensions: 26 x 26 x 30 mm, 32 grams
  • 4.2 Mpix at 90 fps (up to 180 with xiX)
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant



In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testingOCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics


4.2 Megapixel Near Infrared (NIR) enhanced CMOS Camera.


xiQ camera series




USB3 Zone


3D / 2D files






Part Number MQ042RG-CM-S7
Resolution 4.2 MP 2048 × 2048 pixel
Frame rates 90 fps
Sensor model AMS CMOSIS CMV4000
Chroma Monochrome NIR
Sensor type CMOS Near Infrared enhanced
Sensor size 1"
Sensor active area 11.27 × 11.27 mm (Diagonal 15.9 mm)
Spectral range 400-1100nm
Readout method Global shutter
Pixel size 5.5 × 5.5 µm
Digitization 8, 10, (12)
Data interface USB 3.1 Gen1
Dynamic range 60 dB (HDR available)
Full Well Capacity 13 500 e-
Readout noise typ. 13 e-
Signal to noise ratio 41 dB
Exposure range 26µs to 1s
Power consumption 1.5 Watt
Lens mount C or CS Mount
Weight 32 grams
Dimensions WxHxD 26 x 26 x 30 mm
