PCI Express Cameras with high speed and resolution: xiB-64

What is xiB-64?

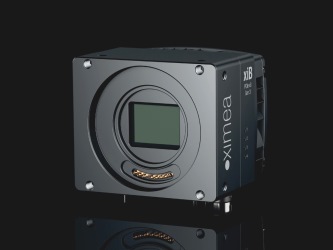

Compact PCIe x8 Gen3 interface CMOS camera family



high resolution fast speed industrial cameras global shutter low latency



  • Fastest overall - Data bandwidth is staggering 64 Gbit/s, with real data throughput of 7000 MB/s
  • Modern components - High resolution up to 65 Mpix, fast speed sensors with 1 Mpix at 3500+ Fps
  • Future potential - Highest speed by utilizing the full capacity of PCIe x8 Gen3 interface
  • Long reach - Can work with optical cable at 300m distances
  • Versatile mini camera - Subtle 60 x 70 x 55 mm, 268 grams
  • Cool - Minimal heat dissipation with additional Fan cooling
  • Power efficient - Low power consumption of around 17 Watt
  • Compatible - Support for Windows 7 and 10, Linux, macOS, ARM
  • Triggering and Synchronization - 2/2 Isolated GPI/GPO, 4 programmable status LEDs
  • Compliant - Data and control interface complies with PCI Express External Cabling Specifications
  • Lens control - EF-mount Interface allows remote control of aperture, focus and image stabilization
  • Customizable - C-mount with filter selection. Temperature control with Heatsink or water block
  • Easy deployment - Range of various accessories and No need in frame grabbers




This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCI Express Support



High speed Models

High speed Monochrome and Color models:

Model Sensor Resolution Pixel µm ADC bits FWC e- Sensor Diagonal Power Watt DR dB Frames per sec
CB013MG-LX-X8G3 LUX13HSM 1280 x 864, 1.1 MP 13.7 10 20000 21.1 mm 17 W 60 3600+
CB013CG-LX-X8G3 LUX13HSC 1280 x 864, 1.1 MP 13.7 10 20000 21.1 mm 17 W 60 3600+
CB019MG-LX-X8G3 LUX19HSM 1920 x 1080, 2 MP 10 10 15000 22 mm 17 W 60 2200+
CB019CG-LX-X8G3 LUX19HSC 1920 x 1080, 2 MP 10 10 15000 22 mm 17 W 60 2200+

Common features:

Sensor technology CMOS, Global shutter
Acquisition modes Continuous, software trigger, hardware trigger
Partial image readout ROI (region of interest) / AOI (area of interest), Skipping / Binning (only certain models)
Image data formats 10 bit RAW pixel data (depends on the model)
SDK/API programmable with C++ and C#, Python
Color image processing* Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS
Hot/blemish pixels correction* On camera storage of up to 5000 pixel coordinates, host assisted correction
Auto adjustments* Auto white balance, auto gain, auto exposure

Flat field corrections*

 Host assisted pixel level shading and lens corrections. This feature is being developed and tested
FPN correction  Fixed pattern noise correction on the side of the camera
Interface PCI Express standard cable connector compliant to PCI Express External Cabling Specifications
General purpose I/O 2x optoisolated input, 2x optoisolated output, 4 non-isolated input-outputs, 4x LED software programmable
Signal conditioning* Programmable debouncing time
Synchronization Hardware trigger input, software trigger, exposure strobe output, busy output
Lens mount C-mount or EF mount with Active Lens Control – focus, iris, image stabilization
Power requirements 17 Watt, supplied via power cable
Dimensions 70 x 60 x 55 mm
Weight 268 grams
Environment Operating 0°C to 50°C on housing, RH 80% noncondensing, -30°C to 60°C storage
Conformity CE, FCC, RoHS, PCI Express External Cabling Specifications compliant
Operating systems Windows 7 SP1 (x86 and x64) and 10, Linux Ubuntu, macOS, ARM
Minimum host hardware

Intel i5 3.0GHz, +2GB RAM available physical memory, Motherboard with PCIe x4 Gen2 (or PCIe x8 Gen3) necessary for full throughput, compliance down to PCIe x1 Gen1 gives reduced throughput
Software support xiAPI SDK, adapters and drivers for 30 various image processing Libraries
Firmware updates Field firmware update through xiCOP

(*) Feature is available only when the camera is in XIMEA API mode.



This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCI Express Support



High resolution Models

High resolution Monochrome and Color models:

Model Sensor Resolution Pixel µm ADC bits FWC e- Sensor Diagonal Power Watt DR dB Frames per sec (1)
CB120MG-CM-X8G3 CMOSIS CMV12000 4096 x 3072, 12 MP 5.5 8,10,12 13500 28 mm 17 W 60 330, 300, 130
CB120CG-CM-X8G3 CMOSIS CMV12000 4096 x 3072, 12 MP 5.5 8,10,12 13500 28 mm 17 W 60 330, 300, 130
CB160MG-LX-X8G3 LUX160M 4704 x 3424, 16 MP 3.9 10 10000 22.6 mm 17 W 60 300+
CB160CG-LX-X8G3 LUX160C 4704 x 3424, 16 MP 3.9 10 10000 22.6 mm 17 W 60 300+
CB262MG-GP-X8G3 Gpixel GMAX0505 5120 x 5120, 26 MP 2.5 10, 12 6500 18.1 mm 14 W 63 150, 40
CB262CG-GP-X8G3 Gpixel GMAX0505 5120 x 5120, 26 MP 2.5 10, 12 6500 18.1 mm 14 W 63 150, 40
CB654MG-GP-X8G3 Gpixel GMAX3265 9344 x 7000, 65 MP 3.2 10, 12 9200 37.4 mm 17 W 64 71, 31
CB654CG-GP-X8G3 Gpixel GMAX3265 9344 x 7000, 65 MP 3.2 10, 12 9200 37.4 mm 17 W 64 71, 31

(1) Full resolution at RAW 8 bits, 10 bits and 12 bits;  Server computers with bigger PCIe TLP packet size can increase the throughput by additional 10%.

Common features:

Sensor technology CMOS, Global shutter
Acquisition modes Continuous, software trigger, hardware trigger
Partial image readout ROI (region of interest) / AOI (area of interest), Skipping / Binning (only certain models)
Image data formats 8, 10, 12 bit RAW pixel data (depends on the model)
SDK/API programmable with C++ and C#, Python
Color image processing* Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS
Hot/blemish pixels correction* On camera storage of up to 5000 pixel coordinates, host assisted correction
Auto adjustments* Auto white balance, auto gain, auto exposure

Flat field corrections*

 Host assisted pixel level shading and lens corrections. This feature is being developed and tested
FPN correction  Fixed pattern noise correction on the side of the camera
Interface PCI Express standard cable connector compliant to PCI Express External Cabling Specifications
General purpose I/O 2x optoisolated input, 2x optoisolated output, 4 non-isolated input-outputs, 4x LED software programmable
Signal conditioning* Programmable debouncing time
Synchronization Hardware trigger input, software trigger, exposure strobe output, busy output
Lens mount C-mount or EF mount with Active Lens Control – focus, iris, image stabilization
Power requirements 17 Watt (depends on the model), supplied via power cable
Dimensions 70 x 60 x 55 mm (depends on the model)
Weight 268 grams (depends on the model)
Environment Operating 0°C to 50°C on housing, RH 80% noncondensing, -30°C to 60°C storage
Conformity CE, FCC, RoHS, PCI Express External Cabling Specifications compliant
Operating systems Windows 7 SP1 (x86 and x64) and 10, Linux Ubuntu, macOS, ARM
Minimum host hardware

Intel i5 3.0GHz, +2GB RAM available physical memory, Motherboard with PCIe x4 Gen2 (or PCIe x8 Gen3) necessary for full throughput, compliance down to PCIe x1 Gen1 gives reduced throughput
Software support xiAPI SDK, adapters and drivers for 30 various image processing Libraries
Firmware updates Field firmware update through xiCOP

(*) Feature is available only when the camera is in XIMEA API mode.



This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCI Express Support



Accessories

xiB-64 Accessories

Copper cables Availability
CBL-PCI-X8G3-COP-3M0 3 meter, PCIe Gen.3 x8, copper cable Now
CBL-PCI-X8G3-COP-5M0 5 meter, PCIe Gen.3 x8, copper cable Now
CBL-PCI-X8G3-COP-7M0 7 meter, PCIe Gen.3 x8, copper cable Now
Fiber cables
XC-X8G3-MTP-X8G3-IPASS PCIe Gen.3 x8 iPass to MTP converter with opposed MTP connector Now
CBL-MTP-X8G3-FF-xxM0 5 to 100m PCIe Gen.3 x8, fiber optics MTP cable Now
MECH-OPA-S-ALIGNED optical MTP patch cable adapter - Single port, aligned This e-mail address is being protected from spambots. You need JavaScript enabled to view it
Fiber and copper Host adapters
HA-1P-X8G3-MTP-X8G3 1-Port PCIe Gen.3 x8 host adapter for fiber cables - opposed MTP connector Now
PEX8-G3-X1-DOL PCIe Gen.3 x8 extender host adapter for copper and fiber optics cables Now
PEX8-G3-X2-OSS PCIe Gen.3 x8 extender host adapter for copper and fiber optics cables, 2 ports Now
Synchronization cables
CBL-MT-PWR-SYNC-3M0 3.0 meter xiT and xiB-64 I/O Sync/Trigger and power cable Now
Tripod brackets and rest
MECH-60MM-BRACKET-T xiB and xiB-64 series tripod mounting bracket Now
C-mount lens adapter C-mount lens adapter for xiB and xiB-64 cameras - various filter options Now
MECH-60MM-EF-ADAPTER-KIT Canon EF-mount with screws and protection cap for xiB and xiT series Now
Power supply Universal power delivery accessories Now
CB-X8G3-FAN-COOLER-KIT Fan / Air cooling module for xiB-64 series - supplied with camera Now
CB-X8G3-WAT-COOLER-KIT Water / Liquid cooling module for xiB-64 series - no vibration option Now
XCX-2P-X8G3 High performance Embedded Computer based on ComXPress Mainboard Now



This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCI Express Support



Software

PCI Express supported operating systems:

Windows Linux Mac OSX ARM camera



Download software at PCIe Zone

Custom Image Processing SDK for NVIDIA GPUs from Fastvideo company:

PCI Express camera high speed resolution CMV12000 CMV20000 compression

Fastvideo

Newest benchmarks









All logos and trademarks are the property of the respective trademark owners.

All other rights are reserved.

Machine Vision Libraries MVTec Halcon

Download Vision Libraries support files

API Manual



Documents

PDF Flyers and documentation


CMOSIS CMV12000 Luxima high speed fast PCIe Gen3 64 Gbits

xiB-64 Brochure



PCI Express PCIe camera fast high speed machine vision

Manual



3D Step



frame rate sensor calculator high speed camera

Frame Calculator





This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCI Express Support



Applications

Advantages for High speed and High resolution Applications

  • Performance - up to 17x times faster than USB 3.0, 7x than 10GigE and even faster than Camera Link HS or CoaXPress
  • Robustness - durable full metal jacket, no wobbly cheap sheet covers
  • Precision - high resolution (up to 65 Mpix) Global shutter sensors offer quality without smear
  • Distance - for applications that require detached camera head across 300m
  • Latency - minimalistic glass to glass times and low CPU load
  • Modularity - adjustable design allows customization for special needs and mounting holes on all available sides of the camera for the best possible alignment of the sensor
  • Compactness - periscopic structure simplifies multi-camera arrangements for 360 panorama
  • Standard - PCIe over Cable interface provides a variety of standard PCIe cables and adapters
  • DMA - direct memory access omitting frame grabbers and providing lowest latencies
 pci express camera 64 gbits gen3 luxima gpixel gmax high resolution

Fast speed Camera ideal for these Industries and Applications

  • Projectile, Explosives, Ballistics, Combustion and Missile Launch Tracking
  • Vehicle Impact, Airbag Deployment and Safety Restraints Testing
  • Digital Image Correlation (DIC)
  • Fluidics and Particle Image Velocimetry (PIV)
  • Commercial Film, Television and Studio Production
  • Flat panel inspection (FPD)
  • Fluorescence Microscopy
  • Semiconductor wafer scanning
  • Life science - Pharmaceutical, Medical devices
  • Printed circuit board (PCB) examination
  • Industrial Automation and Machine Vision
  • Production line monitoring
  • Fluid and Flow Visualization
  • Defect detection, Print and Film scanning
  • GIS (Geographical Information Systems)
  • Cinematography and Entertainment, Instant replays
  • Patient diagnostics, Body scanner
  • Persistent stadium and border high-end security
  • Sports imaging and broadcast
  • Electronics measurement and assemblies
  • Outdoor imaging - Wide area motion imaging and surveillance
  • Aerial or city mapping (UAV/UAS/drones)



   and others

This e-mail address is being protected from spambots. You need JavaScript enabled to view it

PCI Express Support



How to order

Want to know more about our high speed, high-resolution PCI Express cameras or how to buy them?

This e-mail address is being protected from spambots. You need JavaScript enabled to view it







Visit our PCI Express Support page



This e-mail address is being protected from spambots. You need JavaScript enabled to view it

This e-mail address is being protected from spambots. You need JavaScript enabled to view it

This e-mail address is being protected from spambots. You need JavaScript enabled to view it





This e-mail address is being protected from spambots. You need JavaScript enabled to view it

This e-mail address is being protected from spambots. You need JavaScript enabled to view it

(for price / procurement)
