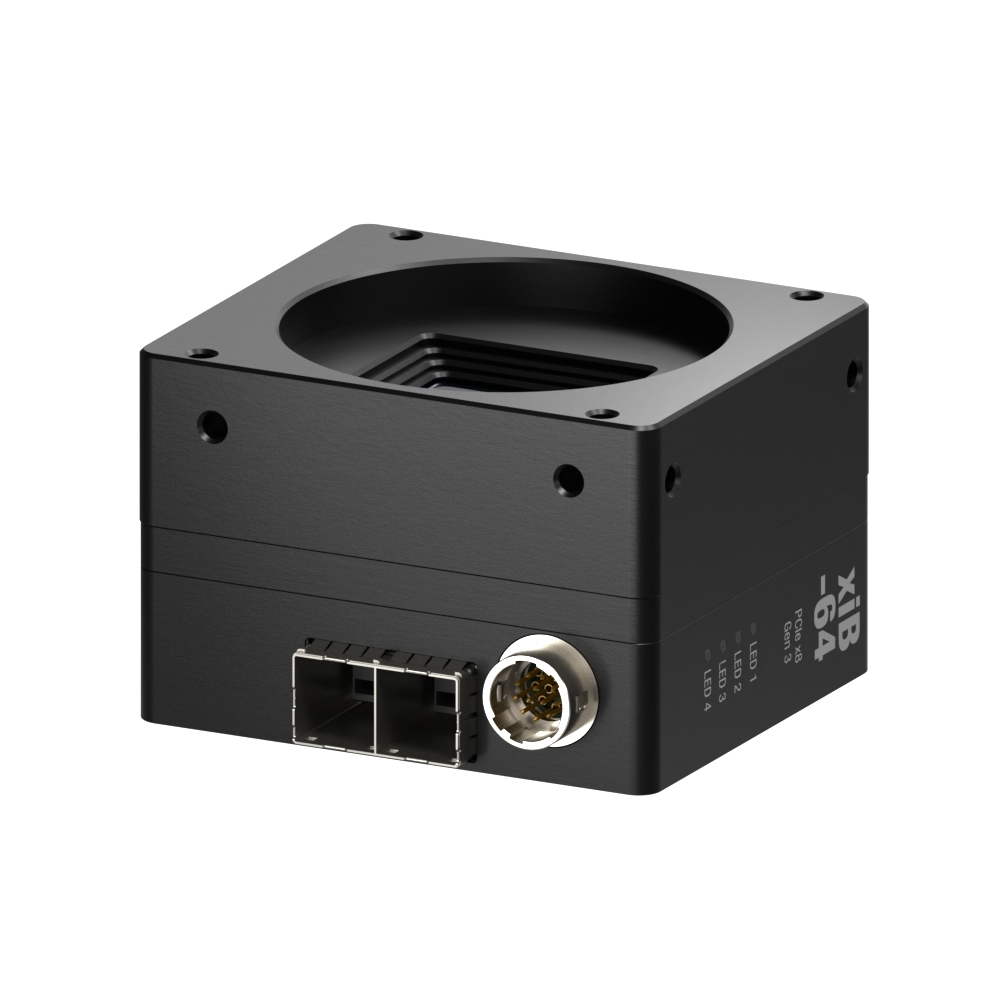

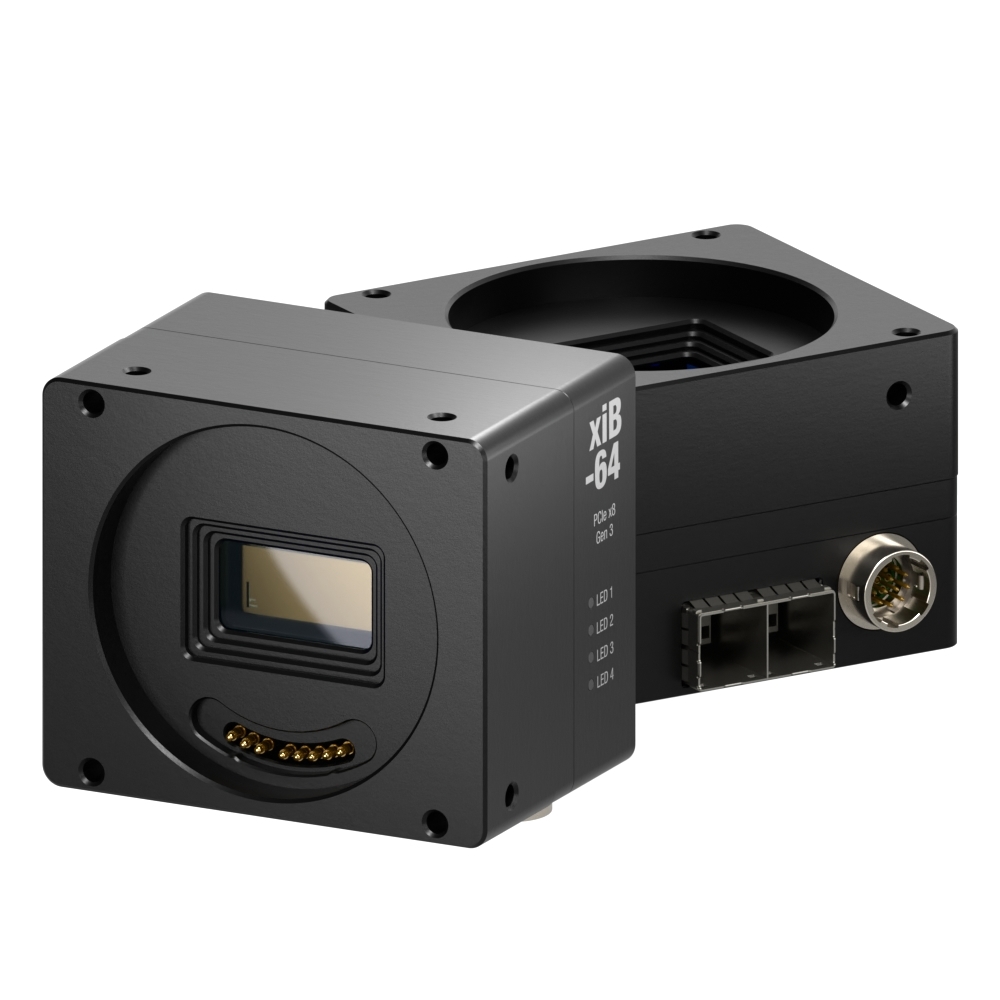

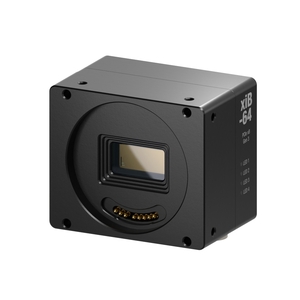

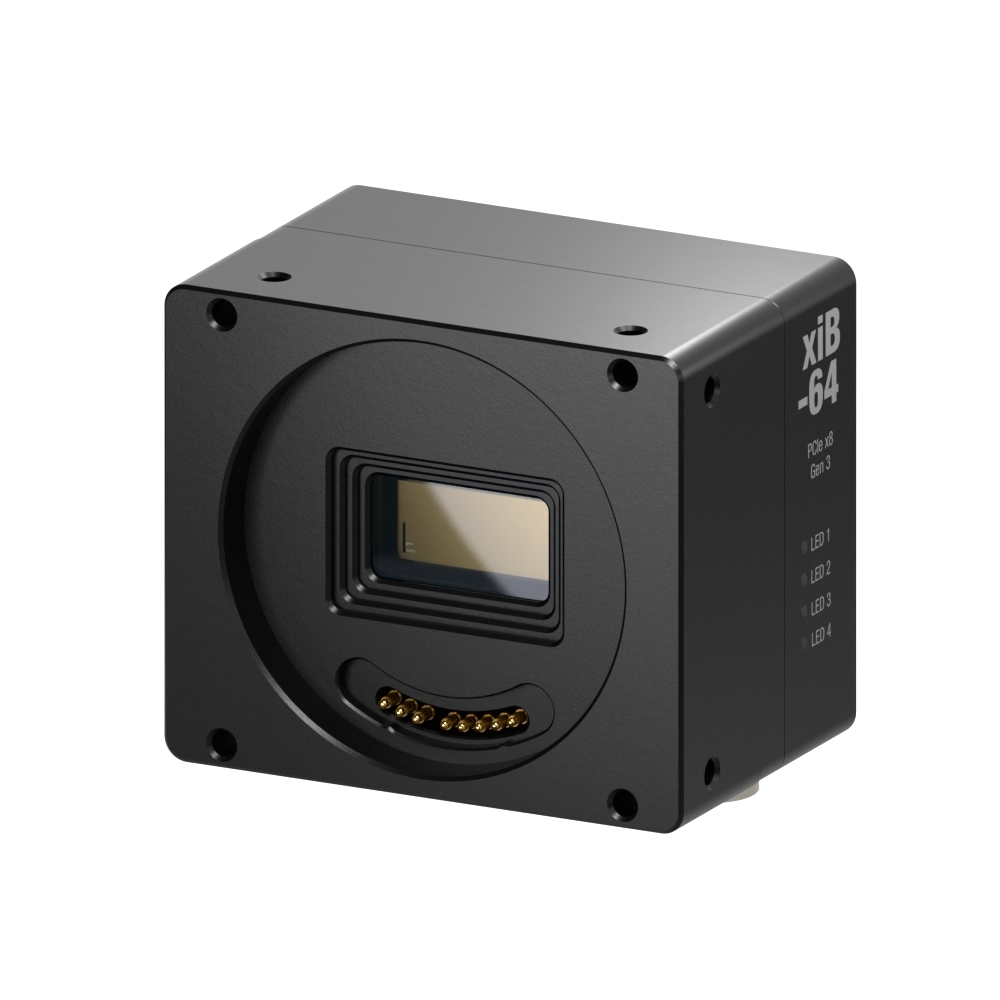

CB100MG-GP-X8G3-SFF
High speed camera with 10 Mpix Monochrome Gpixel GSPRINT4510 sensor and PCIe X8 Gen 3 interface
Specifications
Product statusTechnical Sample
Sensor vendorGpixel
Sensor modelGSPRINT4510
Sensor technologyCMOS
Shutter typeGlobal shutter
Frame rate668 FPS
Overview
Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.
FAST
High-speed interface with a bandwidth of 64 Gbit/s. Over 7 GB/s stream to storage or directly to GPU memory with selected PC configurations.
FUNCTIONAL
Active Canon EF-mount option for aperture and focus control through the camera.
LOW-LATENCY
Minimum latency and CPU load. PCIe interface comes with the lowest latency possible, delivering data directly to RAM (DMA) with no overhead from critical processing infrastructure.
|
Sensor properties
|
||
| Resolution | 10 MPix | |
| Sensor resolution | 4608 x 2176 | |
| Sensor vendor | Gpixel | |
| Sensor model | GSPRINT4510 | |
| Sensor type | Monochrome | |
| Sensor technology | CMOS | |
| Sensor size | 4/3" | |
| Sensor active area | 20 x 9.8 mm | |
| Sensor diagonal | 22.9 mm | |
| Pixel size | 4.5 µm | |
| Shutter type | Global shutter | |
|
Camera properties
|
||
| Frame rate | 668 FPS | |
| Bits | 8, 10, 12 bits | |
| On-chip downsampling | 2x2 | |
| Interface | PCIe X8 Gen 3 | |
| Data interface speed | 63.04 Gbit/s | |
| Data connector type | PCIe-SFF-X8G3 | |
| GPIO count | Inputs: 6, Outputs: 6 | |
| Exposure minimum | 4 µs | |
| Exposure maximum | 10 s | |
| Power consumption | 23.0 Watt | |
| Heat dissipation | Optional Heatsink, Fan air cooling | |
| Sensor cooling | No | |
| Special features | High speed | |
|
EMVA 1288 results
|
||
| Dynamic range | 68 dB | |
| Full well Capacity | 30000 e- | |
| Readout noise | 18.1 e- | |
| Signal to noise ratio | 44.7 dB | |
| Gain analog max | 12.4 dB | |
| Spectral Range | 400 - 1000 nm | |
|
Mechanical properties
|
||
| Lens mount | C-mount, EF-mount option | |
| Enclosure type | Standard housing | |
| Physical dimensions (WHD) | 70 x 65.4 x 46.4 mm | |
| Ambient operating temperature | 0 - 50 °C | |
| Storage Temperature | -25 - 60 °C | |
