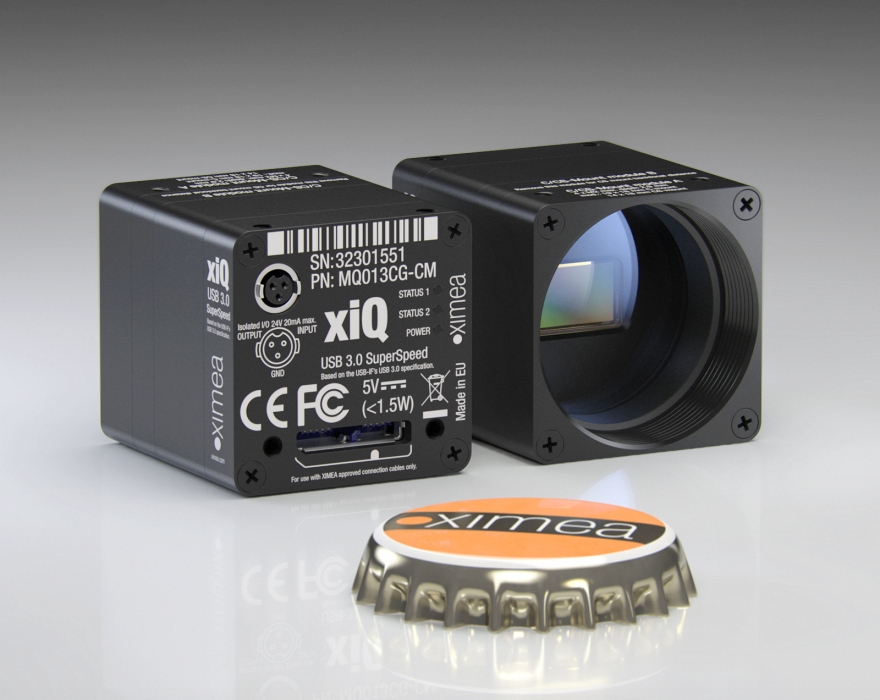

onsemi PYTHON 1300 USB3 mono industrial camera

onsemi PYTHON 1300 USB3 mono industrial camera
  • Smallest dimensions: 26 x 26 x 24 mm, 26 grams
  • 1.3 Mpix at 210 fps
  • Can reach 1000+ fps at 640x400 resolution ROI
  • With flat ribbon flex cable ideal for Embedded vision systems
  • USB3 Vision Compliant



Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testingOCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics



1.3 Megapixel Monochrome CMOS Camera with USB 3.1 Interface.

Check conditions for the model version with Angled connector.



xiQ camera series



Accessories



USB3 Zone



3D / 2D files



Manual



CONTACT SALES




Specifications:
Part Number MQ013MG-ON-S7
Resolution 1.3 MP 1280 × 1024 pixels
Frame rates 210 Fps
Sensor model onsemi PYTHON 1300 NOIP1SN1300A-QDI
Chroma Monochrome
Sensor type CMOS Matrix B/W
Sensor size 1/2"
Sensor active area 6.2 × 5 mm (Diagonal 7.9 mm)
Spectral range 400 - 1000 nm
Readout method Global shutter
Pixel size 4.8 × 4.8 µm
Digitization 8, 10
Data interface USB 3.1 Gen1
Dynamic range 53 dB
Full Well Capacity 10 000 e-
On-chip binning 1x1 Binning, 2x2 Skipping
Dark current 4.5 e-
Signal to noise ratio 41 dB
Exposure range 29 µs to 1 sec
I/O Ports GPIO IN, OUT
Power consumption 1.3 Watt
Lens mount C or CS Mount
Weight 26 grams
Dimensions WxHxD 26 x 26 x 26 mm
