SUCCESSOR MODEL: MQ013CG-E2-S7
- Smallest dimensions: 26 x 26 x 26 mm, 26 grams
- 1.3 MP at 60 fps
- With flat ribbon flex cable ideal for Embedded vision systems
- USB3 Vision Compliant
Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testing, OCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics

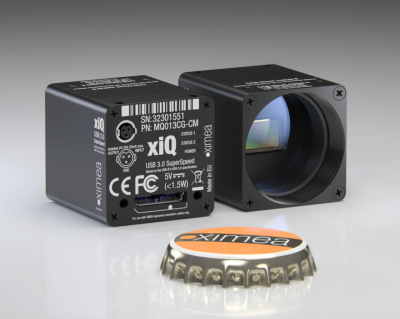

1.3 Mpix Color CMOS Camera with USB 3.1
Brochure
Accessories
USB3 Zone
Manual
CONTACT SALES
Specifications: | |
| Part Number | MQ013CG-E2 |
| Resolution | 1.3 MP 1280 × 1024 pixels |
| Frame rates | 60 fps |
| Sensor model | e2V EV76C560 ACT-EQV |
| Chroma | Color |
| Sensor type | CMOS RGB Bayer Matrix |
| Sensor size | 1/1.8" |
| Sensor active area | 6.9 × 5.5 mm (Diagonal 8.7 mm) |
| Spectral range | 400 - 1000 nm |
| Readout method | Global Shutter |
| Pixel size | 5.3 µm |
| Digitization | 8, 10 |
| Data interface | USB 3.1 Gen1 |
| Dynamic range | 60 dB |
| Full Well Capacity | 12 000 e- |
| On-chip binning | 1x1, 2x2 |
| Exposure range | 15.625µs to 1sec, in steps of 15.625µs |
| I/O Ports | GPIO IN, OUT |
| Power consumption | 0.9 Watt |
| Lens mount | C or CS Mount |
| Weight | 26 grams |
| Dimensions WxHxD | 26 x 26 x 26 mm |
