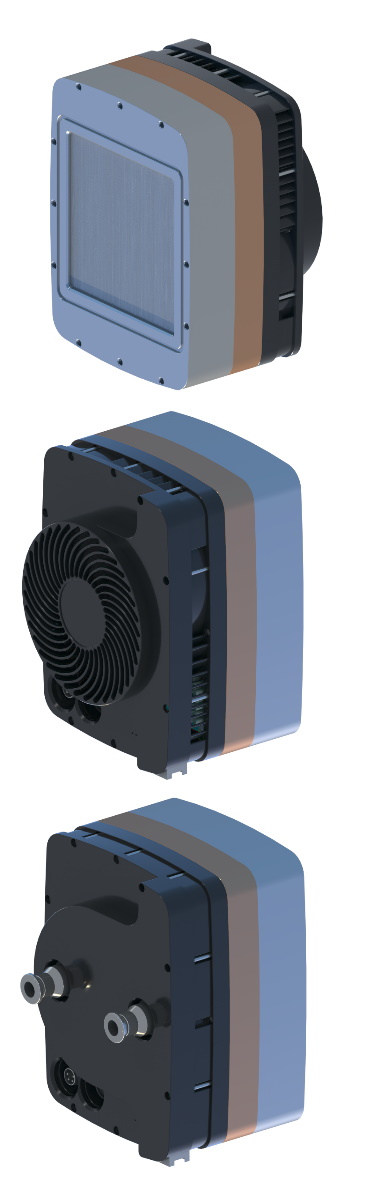

X-ray camera with 38 Mpix Gpixel GSENSE6060 FSI sCMOS 62 x 61 mm sensor and PCIe X8 Gen 3 interface

Name: GPIXEL GSENSE6060-FSI x-ray gadox xiray sCMOS camera
SKU: 3858

Product statusActive

Sensor vendorGpixel

Sensor modelGSENSE6060 FSI

Sensor technologysCMOS

Shutter typeRolling shutter

Frame rate48 FPS

Overview Variants Accessories Links and downloads Contact

Overview

Get all the important facts about the camera model you have selected. Additional information is available in the camera family manual, the support sites or directly from our sales team.

PRECISE

High resolution sCMOS and CMOS sensors up to 151 Mpix with large FOV (field of view) and 16 bits readout

ADAPTABLE

Various modes for best results in FWC, dynamic range, noise and speed.

RELIABLE

Radiation energy range from 5 keV up to 150 keV (model dependent) with beryllium entrance window. Radiation hardened with the option to increase the range up to 250 keV.

CUSTOMIZABLE

Modify the Scintillator material, Phosphor thickness or other parameters according to your needs for x-ray energy, resolution, field of view, pixel size and more

Sensor properties
Resolution	38 MPix
Sensor resolution	6200 x 6144
Sensor vendor	Gpixel
Sensor model	GSENSE6060 FSI
Sensor type	X-RAY
Sensor technology	sCMOS
Sensor size	Medium format
Sensor active area	62 x 61 mm
Sensor diagonal	87.3 mm
Pixel size	10 µm
Shutter type	Rolling shutter

Camera properties
Frame rate	48 FPS
Bits	12, 14, 2 x 12, 2 x 14 bits
On-chip downsampling	4x4
On-chip decimation	1x4
Interface	PCIe X8 Gen 3
Data interface speed	32 Gbit/s
GPIO count	Inputs: 11, Outputs: 11
Exposure minimum	24 µs
Exposure maximum	30 s
Sensor cooling	Yes
Special features	HDR, Dual ADC

EMVA 1288 results
Dynamic range	90 dB
Full well Capacity	110000 e-
Readout noise	4 e-
Gain analog max	40 dB

Mechanical properties
Lens mount	No mount
Enclosure type	Standard housing
Physical dimensions (WHD)	83.2 x 109.6 x 103.3 mm
Storage Temperature	-25 - 60 °C

Feature set for xiRay family

Technology
Sensor technology	CCD, sCMOS and CMOS
Acquisition modes	Global shutter and Rolling shutter
Sensor version	No microlenses, Taped glass
Magnification options	1:1 and 2:1 or higher possible with Taper
Digital Output	12, 14, 16 bit RAW pixel data digitization
Scintillator material	Phosphor composition P43, Gd2O2S:Tb, Thickness 22 μm or GadOx:Eu with 10 μm or CsI with 150 μm
Fiber optic plate	FOP thickness 8 mm; 10 mm; 35 mm
Default Interface	USB 3.1 Gen1 standard Type-C
Optional interface	Thunderbolt 3 and PCI Express standard cable connector
General purpose I/O	1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable
Synchronization	Hardware and software trigger input, exposure strobe output, busy output
Power requirements	Bus powered via USB3 interface with PD - Power delivery for Cooling
Cooling	Thermoelectric Peltier cooling and fan or water module
Rad-hard	Radiation hardened fiber optic to avoid browning effect
Support of Energy levels	X-ray tube range from 7 to 250 keV - may vary based on model

Processing
Partial image readout	ROI / AOI (region / area of interest); Skipping and Binning modes supported
Image processing	Host based sharpening; lookup table (LUT); saturation; white balance
Hot pixel correction	On camera storage of up to 5000 pixel coordinates; host assisted correction
Auto adjustments	Auto white balance; auto gain; auto exposure; HDR mode (High Dynamic range)
Flat field corrections	Host assisted pixel level shading and lens corrections
Signal conditioning	Programmable debouncing time

Software
SDK / API	Programmable with C++ and C#, Python
Software support	one API / SDK for all cameras, adapters and drivers for various image processing Libraries
Viewer programs	CamTool viewer
Firmware updates	Field firmware update through xiCOP tool

Computer
Operating systems	Windows 10 (x86 and x64), Windows 7 SP1 (x86 and x64), Linux Ubuntu, MacOS
Minimum host hardware	Intel i3 3.0GHz, +2GB RAM memory, NVIDIA or Radeon 128MB, PCIe x4 Gen 3 slot, USB3 with PD

Regulations
Environment side	Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 70°C storage, Ingress Protection: IP40
Conformity	CE, FCC, RoHS, WEEE, GenICam/GenTL, USB 3.0 SuperSpeed

Utilization of xiRay cameras for X-ray imaging Applications

Life science

Micro and Nano CT (Computed tomography), Radiography, Medical and Biology research, Light sheet microscopy (LSFM), Small animal and Cell structure

Material analysis

Scanning and Transmission electron microscopy, Small molecule and protein Crystallography, Spectroscopy, Archeology, Minerology, Neutron imaging

Industrial

Solar panel and cell inspection, industrial PCB analysis (BGA - Ball grid array), Energy research, Phase contrast imaging, Structural engineering, Fluid dynamics

Diffraction and scattering

Small and wide angle X-ray scattering (SAXS, WAXS), X-ray diffraction and Fluorescence (XRD, XRF), Powder diffraction, Coherent diffraction

VIEW ALL

Variants

More flavors, more options: Explore alternative versions of the selected model.

MX377XR-GP-F1-FA-CSI

Gpixel GSENSE6060 FSI X-RAY Cooled CsI camera with PCIe X8 Gen 3

Resolution: 38 MPixSensor resolution: 6200 x 6144 Interface: PCIe X8 Gen 3 Frame rate: 48 FPSSensor technology: sCMOS Sensor size: Medium format Sensor vendor: Gpixel Sensor model: GSENSE6060 FSI

MX377MR-GP-Bx-X4G3-MTP

Gpixel GSENSE6060 BSI Monochrome Cooled Large camera with PCIe X8 Gen 3

MX377MR-GP-Fx-X4G3-MTP

Gpixel GSENSE6060 FSI Monochrome Cooled Large camera with PCIe X8 Gen 3

MX262RG-GP-X8G3-FF

Gpixel GMAX0505 Red Fox NIR High Speed Embedded camera with PCIe X8 Gen 3

Resolution: 26.2 MPixSensor resolution: 5120 x 5120 Interface: PCIe X8 Gen 3 Frame rate: 150 FPSSensor technology: CMOS Sensor size: 1.2" Sensor vendor: Gpixel Sensor model: GMAX0505 Red Fox

MX262MG-GP-X8G3-FF

Gpixel GMAX0505 Monochrome High Speed Embedded camera with PCIe X8 Gen 3

MX262CG-GP-X8G3-FF

Gpixel GMAX0505 Color High Speed Embedded camera with PCIe X8 Gen 3

CB262RG-GP-X8G3

Gpixel GMAX0505 Red Fox NIR high speed camera with PCIe X8 Gen 3

CB262CG-GP-X8G3

Gpixel GMAX0505 Color high speed camera with PCIe X8 Gen 3

CB262MG-GP-X8G3

Gpixel GMAX0505 Monochrome high speed camera with PCIe X8 Gen 3

MX510XG-GP-FA-GO

Gpixel GMAX4651 X-RAY Gadox camera with PCIe X4 Gen 3

Resolution: 51.2 MPixSensor resolution: 8468 x 6058 Interface: PCIe X4 Gen 3 Frame rate: 35.7 FPSSensor technology: sCMOS Sensor size: Medium format Sensor vendor: Gpixel Sensor model: GMAX4651

MX510XG-GP-TP2:1-GO

Gpixel GMAX4651 X-RAY Magnified Gadox camera with PCIe X4 Gen 3

CB209CG-GP-X8G3-SFF

Gpixel GSPRINT4521 Color high speed camera with PCIe X8 Gen 3

Resolution: 20.9 MPixSensor resolution: 5120 x 4096 Interface: PCIe X8 Gen 3 Frame rate: 325 FPSSensor technology: CMOS Sensor size: APS-C Sensor vendor: Gpixel Sensor model: GSPRINT4521

CB209MG-GP-X8G3-SFF

Gpixel GSPRINT4521 Monochrome high speed camera with PCIe X8 Gen 3

MX654CG-GP-X8G3-FF

Gpixel GMAX3265 Color High Speed Embedded camera with PCIe X8 Gen 3

Resolution: 65.4 MPixSensor resolution: 9344 x 7000 Interface: PCIe X8 Gen 3 Frame rate: 71 FPSSensor technology: CMOS Sensor size: 2.3" Sensor vendor: Gpixel Sensor model: GMAX3265

CB654CG-GP-X8G3

Gpixel GMAX3265 Color high speed camera with PCIe X8 Gen 3
