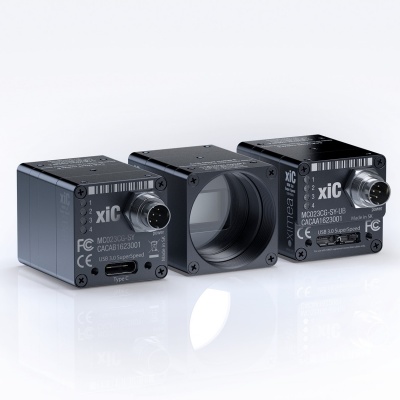

Sony IMX174 USB3 mono industrial camera

Sony IMX174 USB3 mono industrial camera
  • Small dimensions: 26 x 26 x 33 mm, 38 grams
  • 2.3 Mpix at 165 fps @8bit
  • With flat ribbon flex cable (xiX) ideal for Embedded vision systems
  • USB3 Vision Compliant



Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision facial Recognition, Motion Capture, Automotive crash testingOCR/ OCV, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics



2.3 MP Monochrome CMOS Camera with USB 3.1 Gen 1 Interface.

Check conditions for the model version with Sony IMX249 sensor.

Brochure



USB3 Zone



Manual



CONTACT SALES


Specifications:
Part Number MC023MG-SY
Resolution 2.3 MP 1936 x 1216
Frame rates 165 fps
Sensor type CMOS Matrix B/W
Sensor model Sony IMX174
Sensor size 1/1.2"
Sensor active area 11.3 x 7.1 (Diagonal mm) 13.4
Readout Method Global shutter
Pixel size 5.86 µm
ADC -Bits per pixel 10, 12
Data interface USB 3.1 Gen 1
Dynamic range 71.7 dB
Full Well Capacity 30 500 e-
Signal to noise ratio 45 dB
Exposure range 19µs to 30sec, in steps of 4.96µs
Data I/O GPIO IN, OUT
Power consumption 2.4 Watt
Lens mount C or CS Mount
Weight 38 grams
Dimensions WxHxD 26 x 26 x 33 mm
Operating environment 50 °C
Customs tariff code 8525.80 30 (EU) / 8525.80 40 (USA)
ECCN EAR99
Last Updated: 24 January 2019, 13:40
