MECH-25MM-HEATSINK-KIT

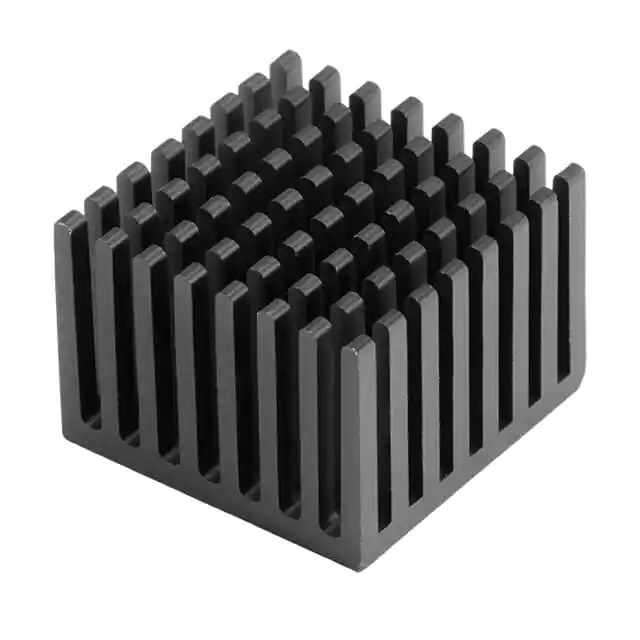

Heatsink with thermagon
Product statusActive

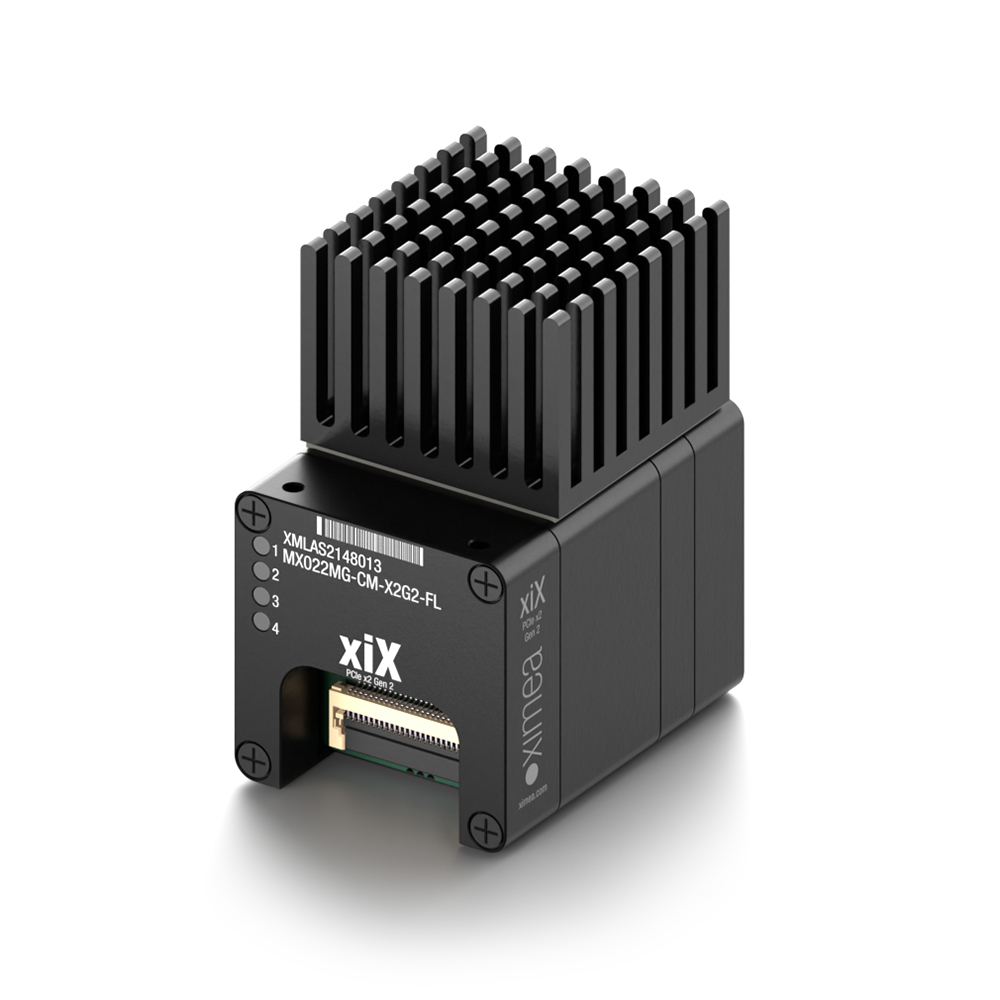

- Heat sink can be mounted on top of camera for heat dissipation
- Measures: 25 x 25 x 18 mm
- Weight: 12.5 grams
- Material - BGA Aluminum Alloy, black anodized
- Attachment Method - with Adhesive Thermal pad

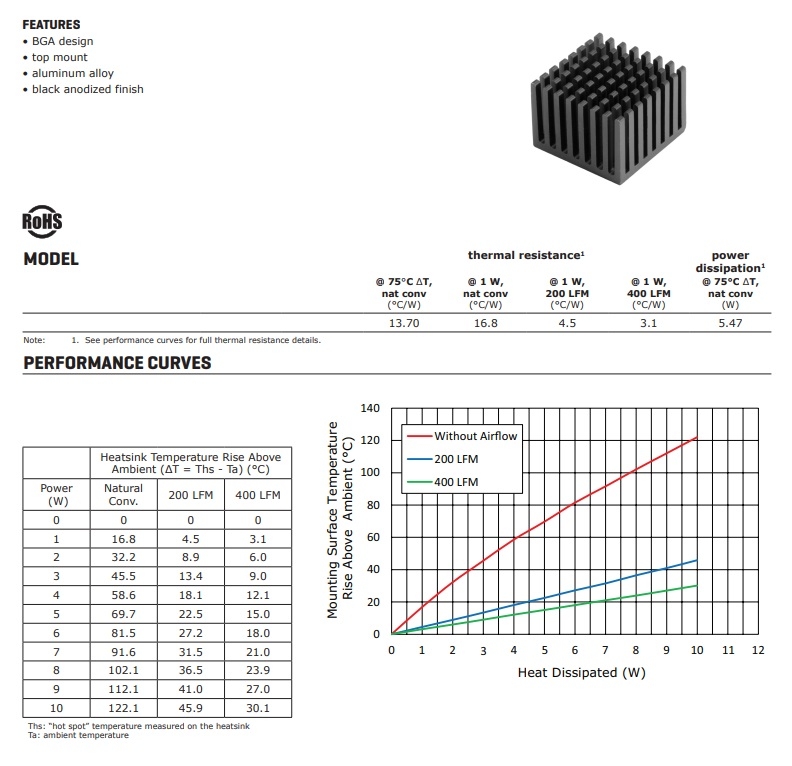

- Power Dissipation @ Temperature Rise - 5.5W @ 75°C
- Thermal Resistance @ Forced Air Flow - 4.50°C/W @ 200 LFM
- Thermal Resistance @ Natural - 13.70°C/W
- For use with xiC and xiX camera series
- Home
- Accessories
- Heatsinks and Fans
- Heatsink with thermagon
Overview
XIMEA offers a wide range of camera accessories that are designed to provide seamless connectivity for different systems. They are able to support several interfaces from conventional USB to high performance PCI Express. These interfaces can be equipped with many versions of connector types for ideal and full compatibility.
XIMEA accessories, including cables, adapter boards, lens mounts, and more, give users maximum flexibility to easily interconnect various cameras in even the most complex setups.
Related accessories
The particular accessory can be used in combination or instead the following accessories.
Links & downloads
Related cameras
The particular accessory can be used with the following camera models or products.

MX022HG-IM-SM4X4-RN2-FL
imec CMV2K-SSM4x4-RNIR HyperSpectral Compact camera with PCIe X2 Gen 2
Resolution: 2.2 MPixSensor resolution: 2048 x 1088 Interface: PCIe X2 Gen 2 Frame rate: 338 FPSSensor technology: CMOS Sensor size: 2/3" Sensor vendor: imec Sensor model: CMV2K-SSM4x4-RNIR
Compare
Get a quote

MX022HG-IM-SM5X5-NIR2-FL
imec CMV2K-SSM5x5-NIR HyperSpectral Compact camera with PCIe X2 Gen 2
Resolution: 2.2 MPixSensor resolution: 2048 x 1088 Interface: PCIe X2 Gen 2 Frame rate: 338 FPSSensor technology: CMOS Sensor size: 2/3" Sensor vendor: imec Sensor model: CMV2K-SSM5x5-NIR
Compare
Get a quote

MX022HG-IM-SM4X4-VIS3-FL
imec CMV2K-SSM4x4-VIS HyperSpectral Compact camera with PCIe X2 Gen 2
Resolution: 2.2 MPixSensor resolution: 2048 x 1088 Interface: PCIe X2 Gen 2 Frame rate: 338 FPSSensor technology: CMOS Sensor size: 2/3" Sensor vendor: imec Sensor model: CMV2K-SSM4x4-VIS
Compare
Get a quote
